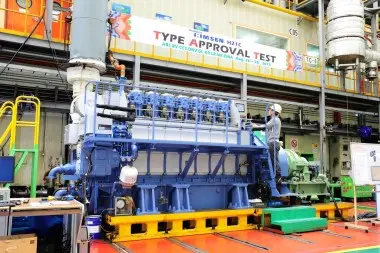

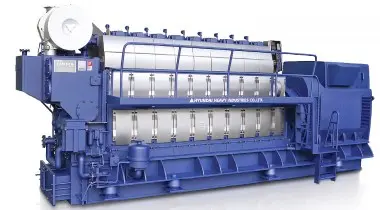

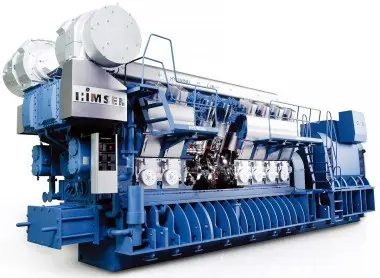

HiMSEN (Hyundai) diesel genset with a power from 3 to 25 MW
HiMSEN engines (translated from Korean Him means ‘power’, and SEN – ‘strong’) are manufactured at the Hyundai Heavy Industries (HHI) factory, which specializes in ship engines. HiMSEN are medium-speed motors 4- stroke engines, which HHI independently designed in 2001. HiMSEN can run on diesel fuel, natural gas and mixed mode (gas diesel). The engines run on HiCAS (Hyundai Intelligent Combustion Analysis System) and HiEMS (Hyundai Intelligent Engine Monitoring System) systems.
Video: Hyundai power plant design
H25, H32, H46 engines-based HiMSEN (Hyundai) diesel generators (single-rated power)
|
H25/33, 1000 rpm |
||
|---|---|---|
|
DG model |
Engine, kW |
Generator, kW |
|
12H25/33V |
3840 |
3686 |
|
14H25/33V |
4480 |
4301 |
|
16H25/33V |
5120 |
4915 |
|
18H25/33V |
5760 |
5530 |
|
20H25/33V |
6400 |
6144 |
|
H32/40, 750 rpm |
||
|
DG model |
Engine, kW |
Generator, kW |
|
6H32/40 |
2850 |
2750 |
|
7H32/40 |
3325 |
3209 |
|
8H32/40 |
3800 |
3667 |
|
9H32/40 |
4275 |
4125 |
|
12H32/40V |
5700 |
5529 |
|
14H32/40V |
6650 |
6450 |
|
16H32/40V |
7600 |
7372 |
|
18H32/40V |
8550 |
8294 |
|
20H32/40V |
9500 |
9215 |
|
H46/60V, 600 rpm |
||
|
DG model |
Engine, kW |
Generator, kW |
|
12H46/60V |
15000 |
14550 |
|
14H46/60V |
17500 |
16975 |
|
16H46/60V |
20000 |
19400 |
|
18H46/60V |
22500 |
21825 |
|
20H46/60V |
25000 |
24250 |

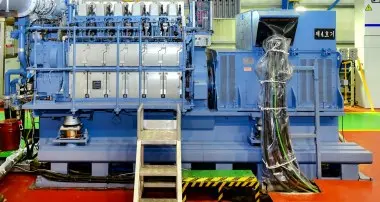

Hyundai diesel generator with a rated power of 8 MW
HHHHI manufactures DGs, which are designed for emergency power supply of nuclear power plants and meet the standards: IEEE 387-2017 - IEEE Standard for Criteria for Diesel Generator Units Applied as Standby Power Supplies for Nuclear Power Generating Stations (Standards Committee - PE/NPE - Nuclear Power Engineering) and ASME NQA-1-2019 Quality Assurance Requirements for Nuclear Facility Applications.
H35/40G engine-based HiMSEN (Hyundai) gas-powered generators, 750 rpm (single-rated power.)
|
Model |
Engine, kW |
Generator, kW |
|---|---|---|
|
6H35/40G |
2880 |
2779 |
|
7H35/40G |
3360 |
3242 |
|
8H35/40G |
3840 |
3706 |
|
9H35/40G |
4320 |
4169 |
|
12H35/40GV |
5760 |
5587 |
|
14H35/40GV |
6720 |
6518 |
|
16H35/40GV |
7680 |
7450 |
|
18H35/40GV |
8640 |
8381 |
|
20H35/40GV |
9600 |
9312 |
2 gas-fired power stations are in stock. Write a request to order@tech-expo.ru

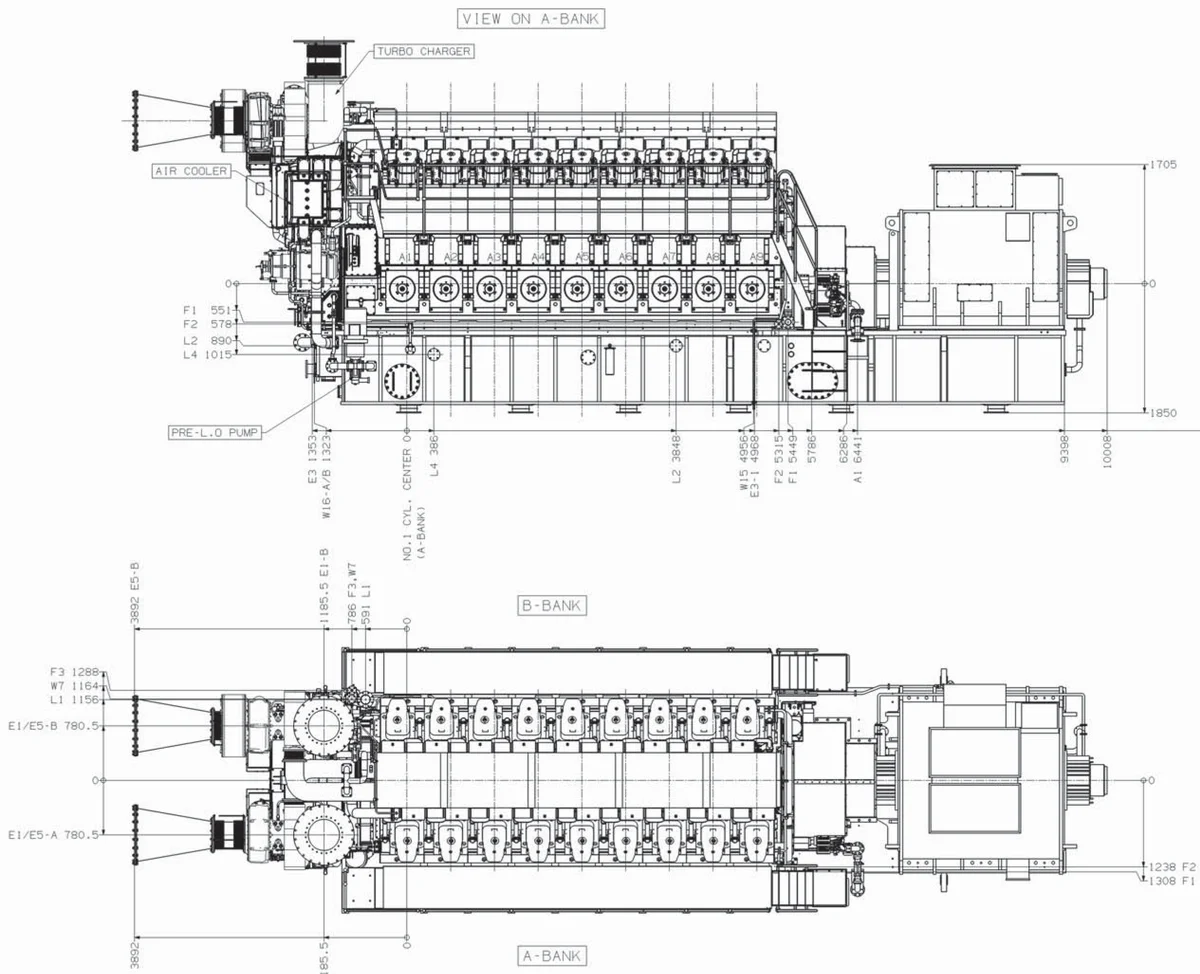

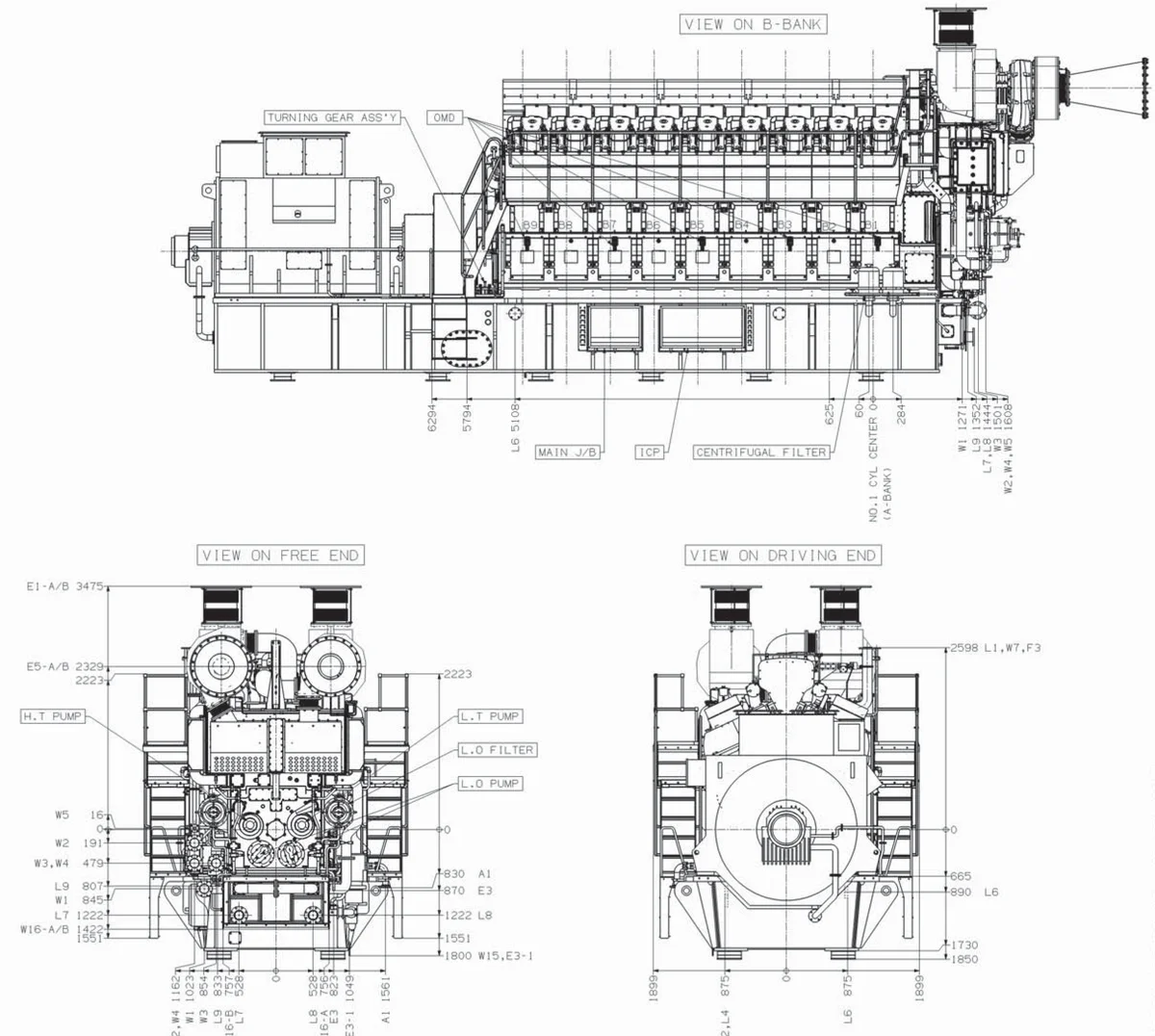

8 MW 18H35/40GV HiMSEN (Hyundai) gas-fired power station diagram
Hyundai solar and hybrid power plants
Hyundai diesel power supply packages for the nuclear industry
Hyundai Heavy Industries product catalog
Hyundai gas / gas and diesel gensets
Designing modular power supply packages using gas, oil, diesel
Hyundai power supply packages
Hyundai-HiMSEN engine design and configuration
| 1 nameplate | 25 piston |
| 2 common base frame | 26 connecting bar |
| 3 damping beds | 27 bent shaft |
| 4 engine body | 28 counterbalance |
| 5 main bearing cap | 29 starting box |
| 6 side screw | 30 regulator |
| 7 cylinder bushing | 31 rotating mechanism |
| 8 cooling water jacket | 32 Generator |
| 9 unit front part | 33 fuel-injection pump |
| 10 flywheel cover | 34 high-pressure fuel unit |
| 11 engine crankcase cover | 35 fuel-feeding pipe |
| 12 countershaft cover | 36 oil pump |
| 13 case | 37 oil heater |
| 14 cylinder cover | 38 oil filter |
| 15 intake valve spindle | 39 oil thermal valve |
| 16 exhaust valve spindle | 40 cooling water thermal valve |
| 17 inlet balance beam | 41 coolant pump |
| 18 outlet balance beam | 42 water jacket connector |
| 19 indicator valve | 43 cylinder head component connector |
| 20 cylinder head cover | 44 intake air inlet |
| 21 fuel pump cover | 45 exhaust pipe |
| 22 pusher | 46 turbo compressor |
| 23 swinging arm | 47 turbo compressor support |
| 24 countershaft | 48 air cooler |
-
