The system of the parallel operation of diesel gensets (synchronization)

Parallel operation of diesel gensets - electric generation by two or more (up to 32) gensets to the shared load, which is distributed proportionally to their rated power. For a high-voltage diesel genset a control panel, which supports the parallel operation mode is required, and for a diesel genset with a voltage of 0,4 kV – a motor-driven generator circuit breaker is required too.

The advantages of the parallel operation of diesel gensets:

• Guaranteed start in case of emergency even if one of the gensets will not start;
• Possibility of expanding capacities by putting new gensets into operation;
• Optimizing the load dump/rise cycles for every genset by using pre-set rules for loading/ unloading.

Example of a project with the organization of the parallel of three DGs for Rostelekom:

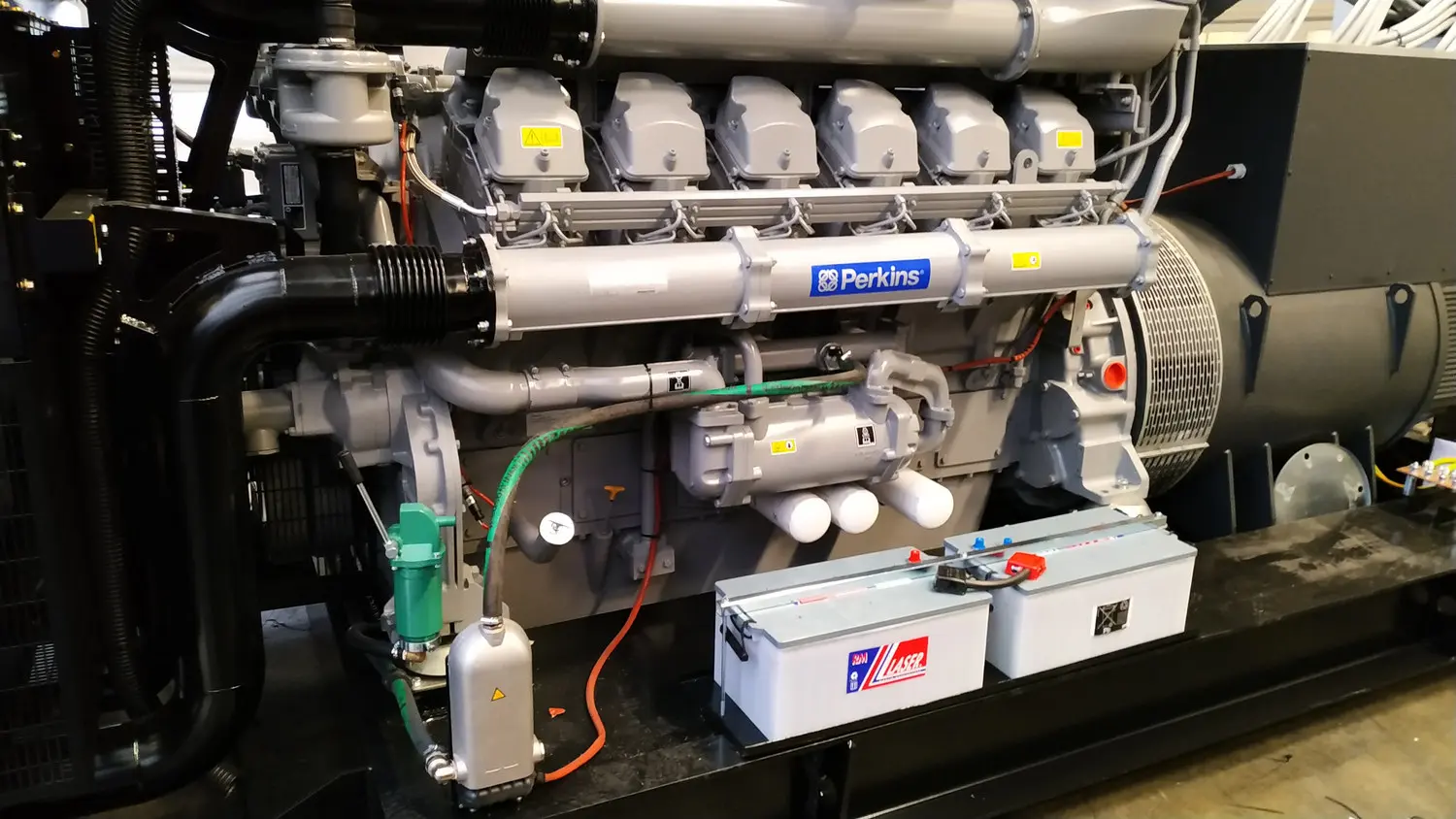

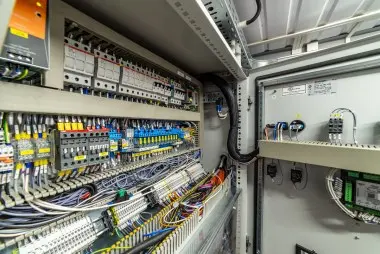

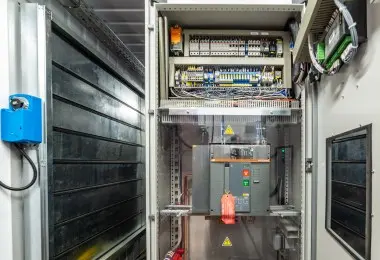

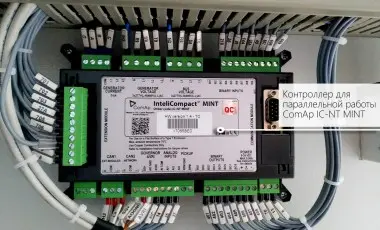

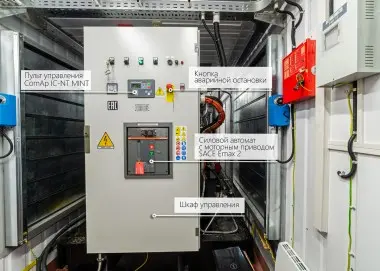

Diesel gensets designed for parallel operation are equipped with a ComAp - InteliCompact NT MINT controller with iAVR unit, which ensures the operation of up to 32 generator units in parallel and implements the load division and optimization of the number of running gensets in parallel operation mode: Download the ComAp operator’s manual

• Automatic synchronization when connected in parallel and automatic load acceptance during parallel operation of the diesel gensets;
• Automatic, proportional distribution of the active load between the diesel gensets of different power with an accuracy of 10% of the rated power of the smaller unit;
• Automatic maintenance of the rated speed and output voltage of generators throughout the load range;
• Smooth DG unloading when quitting from the parallel operation.

Download quotation for 3 DG Cummins 800 kW in parallel>>>
