Doosan 420 and 600 kW diesel gensets for Karakanskoye mine

Total capacity	1020 kW
Client	UgolExportTrade LLC
Фото

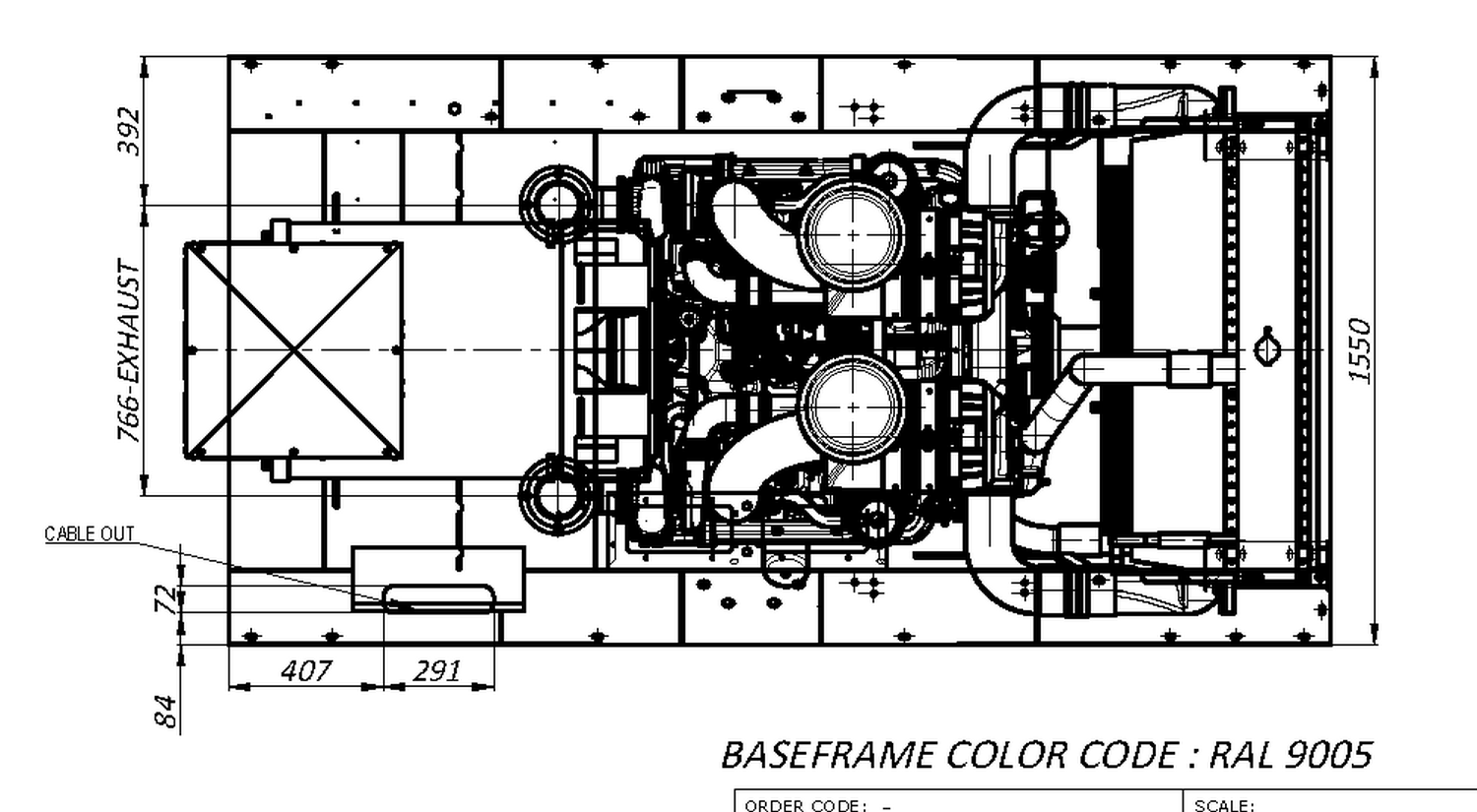

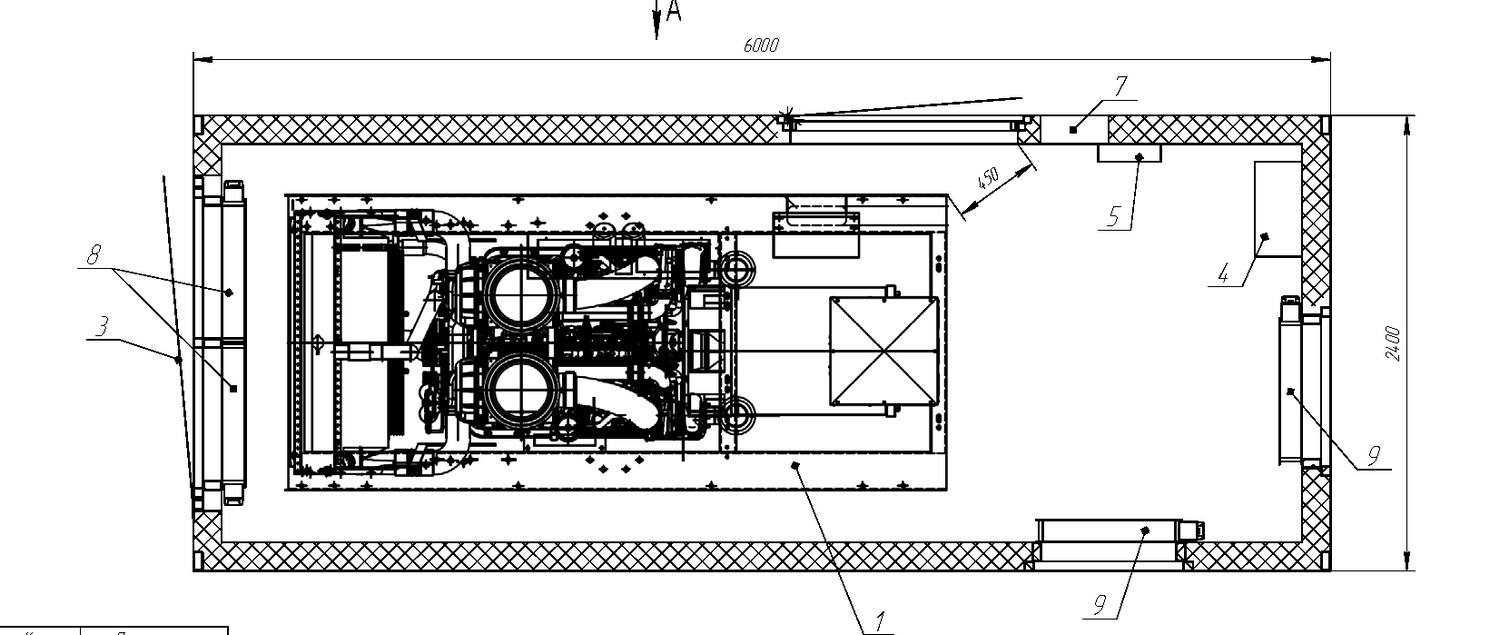

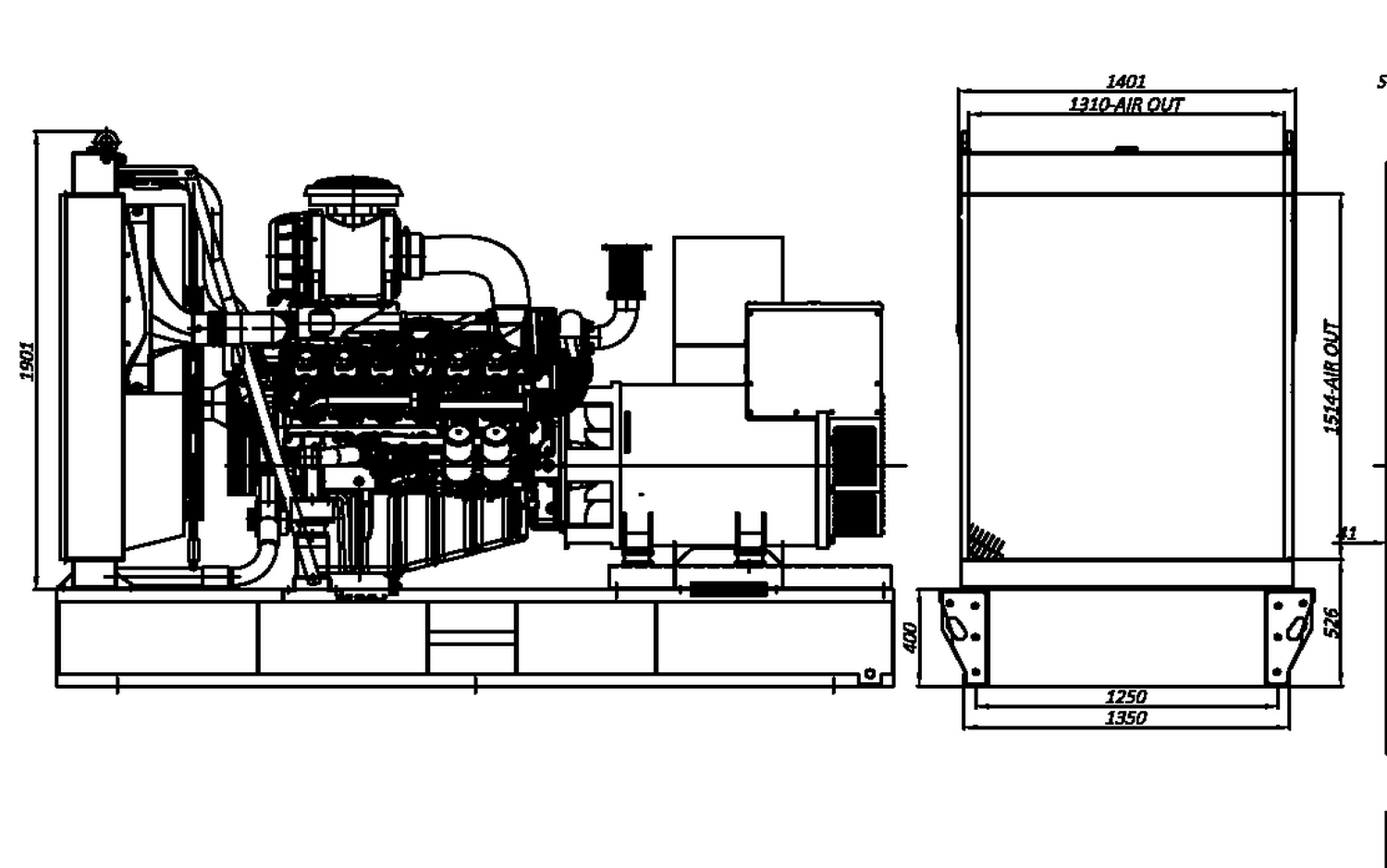

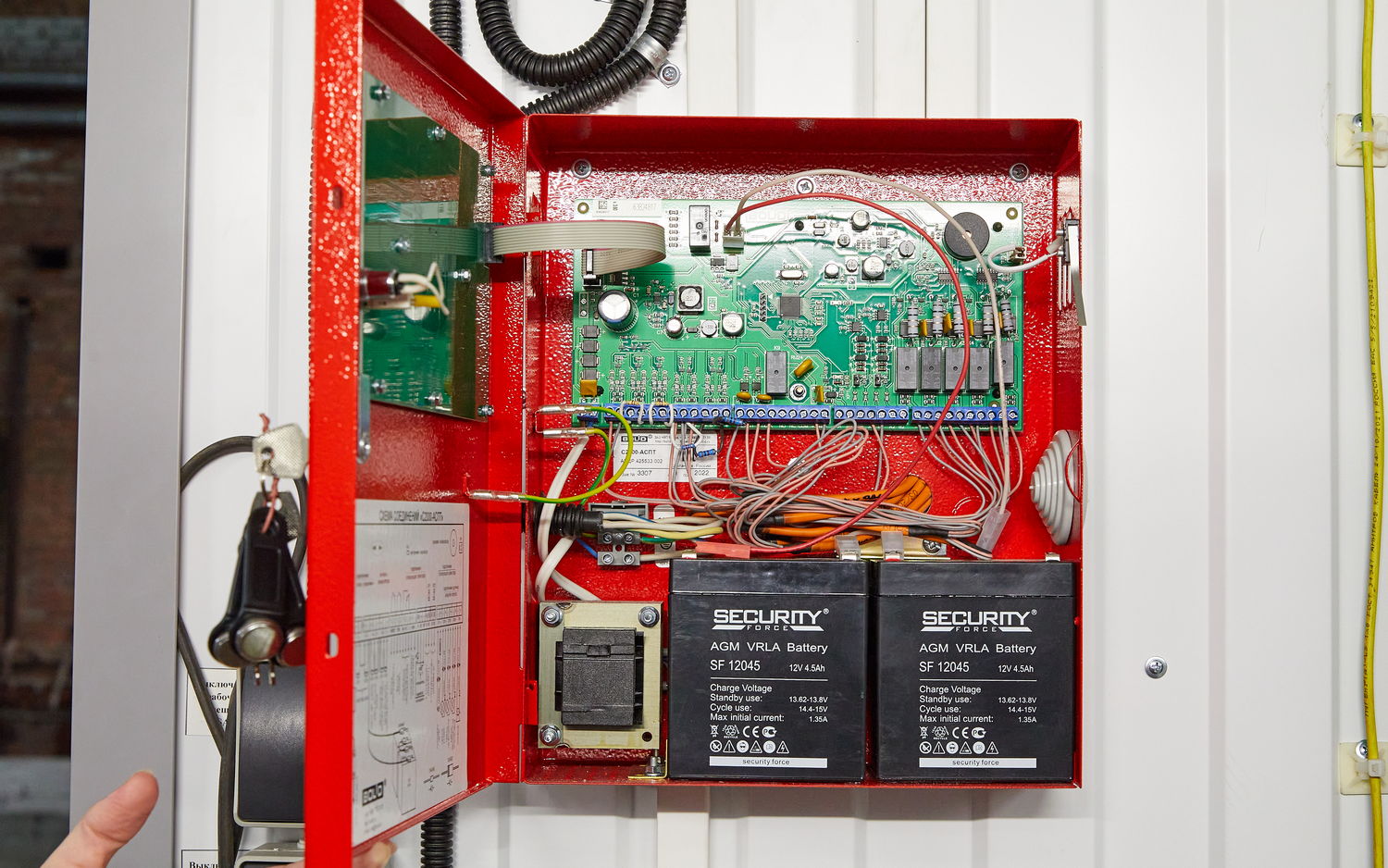

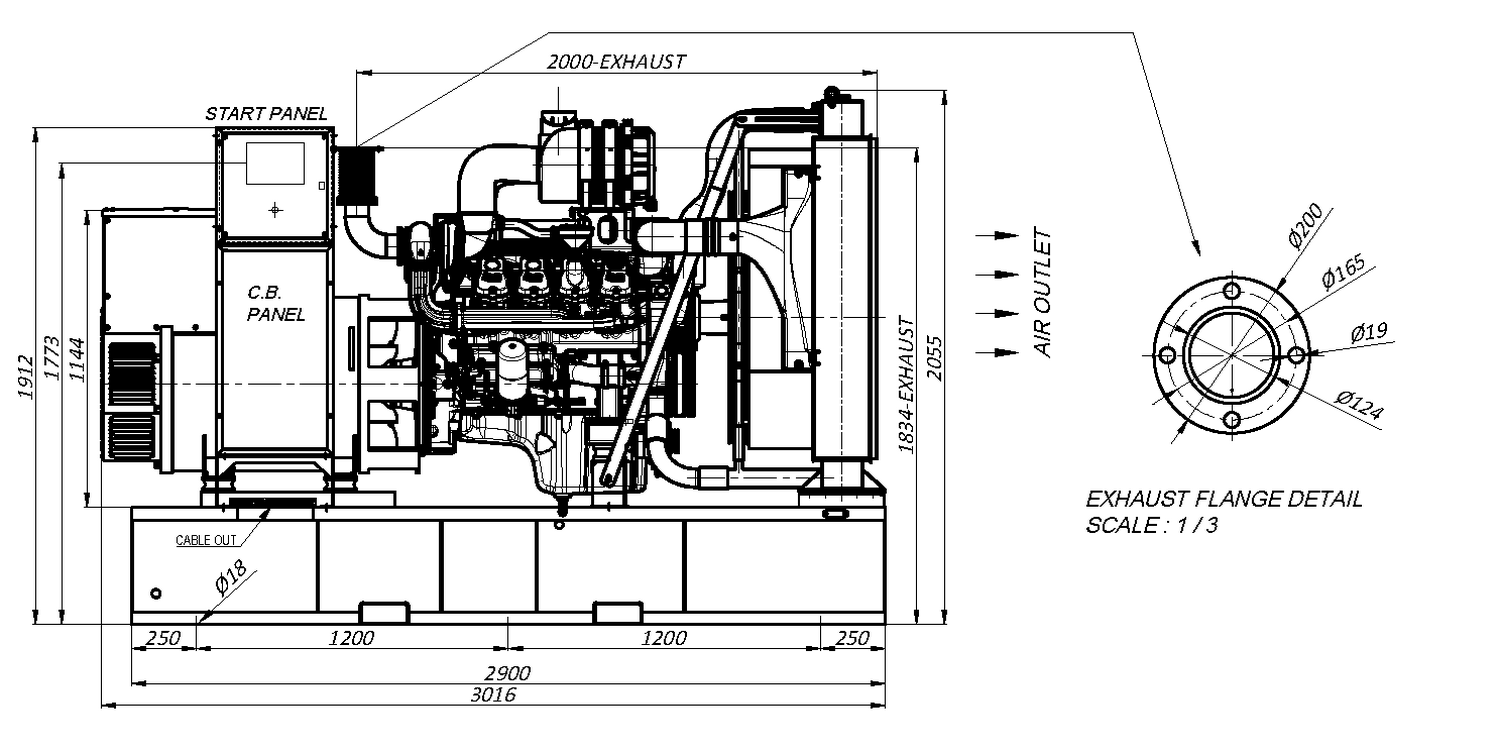

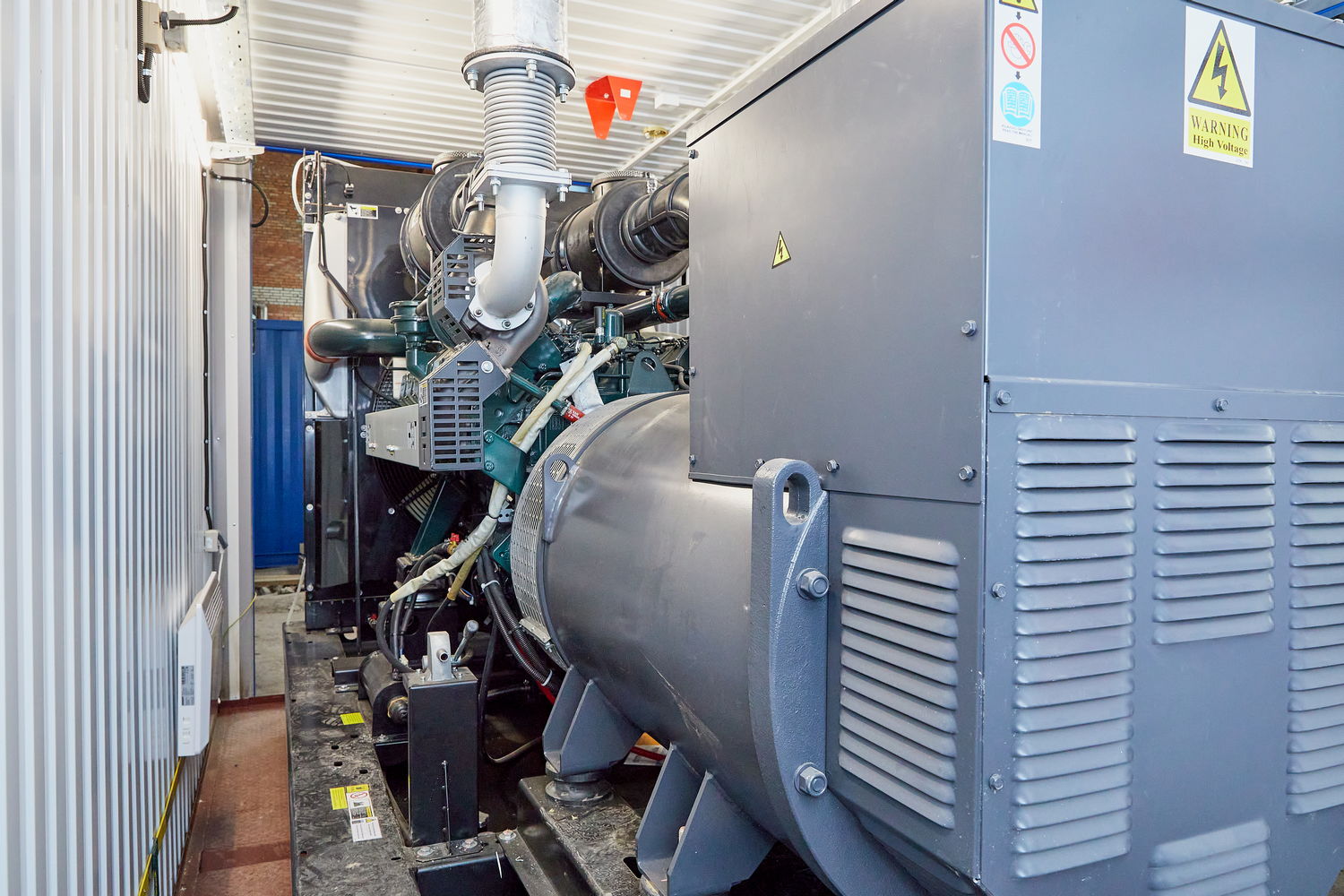

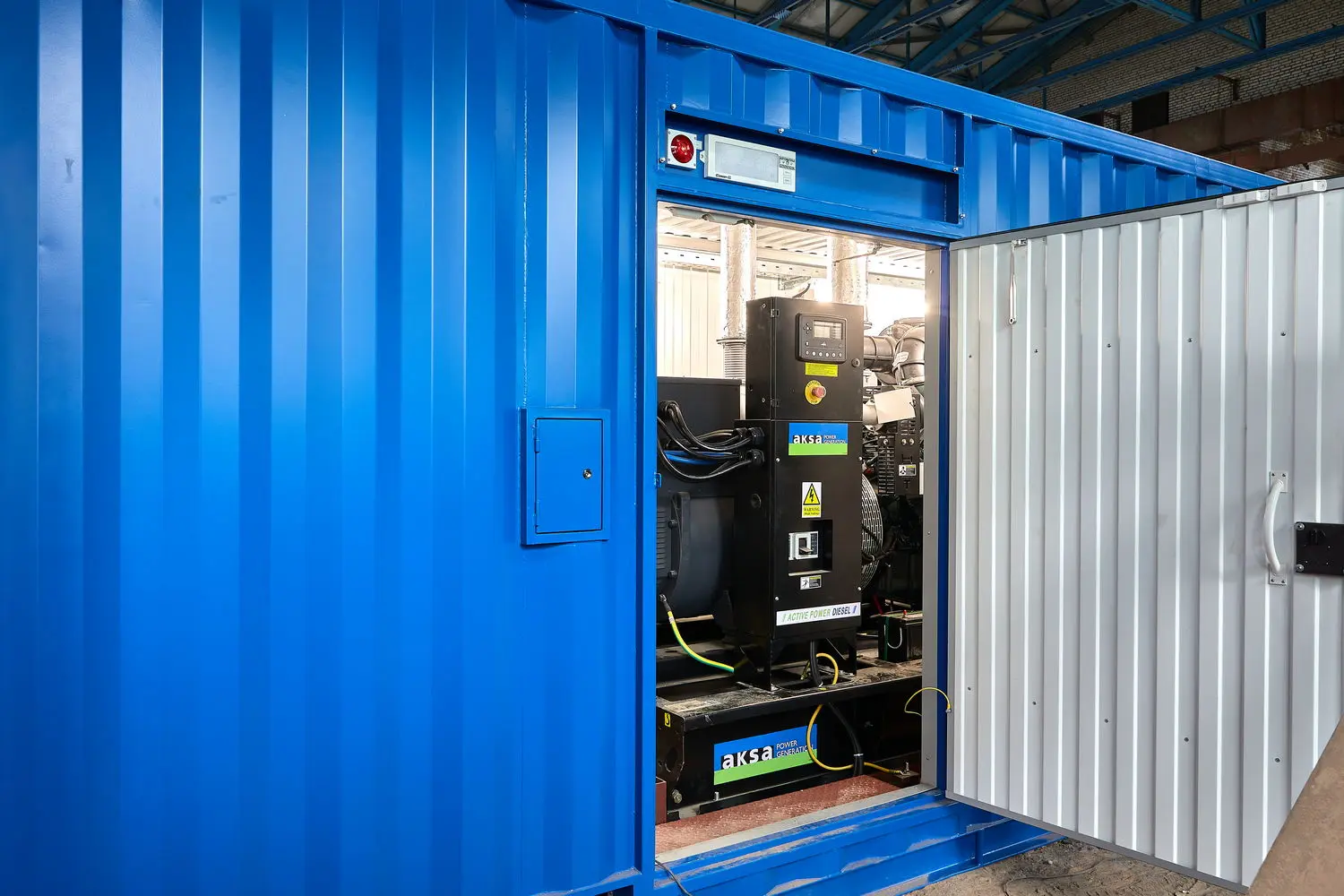

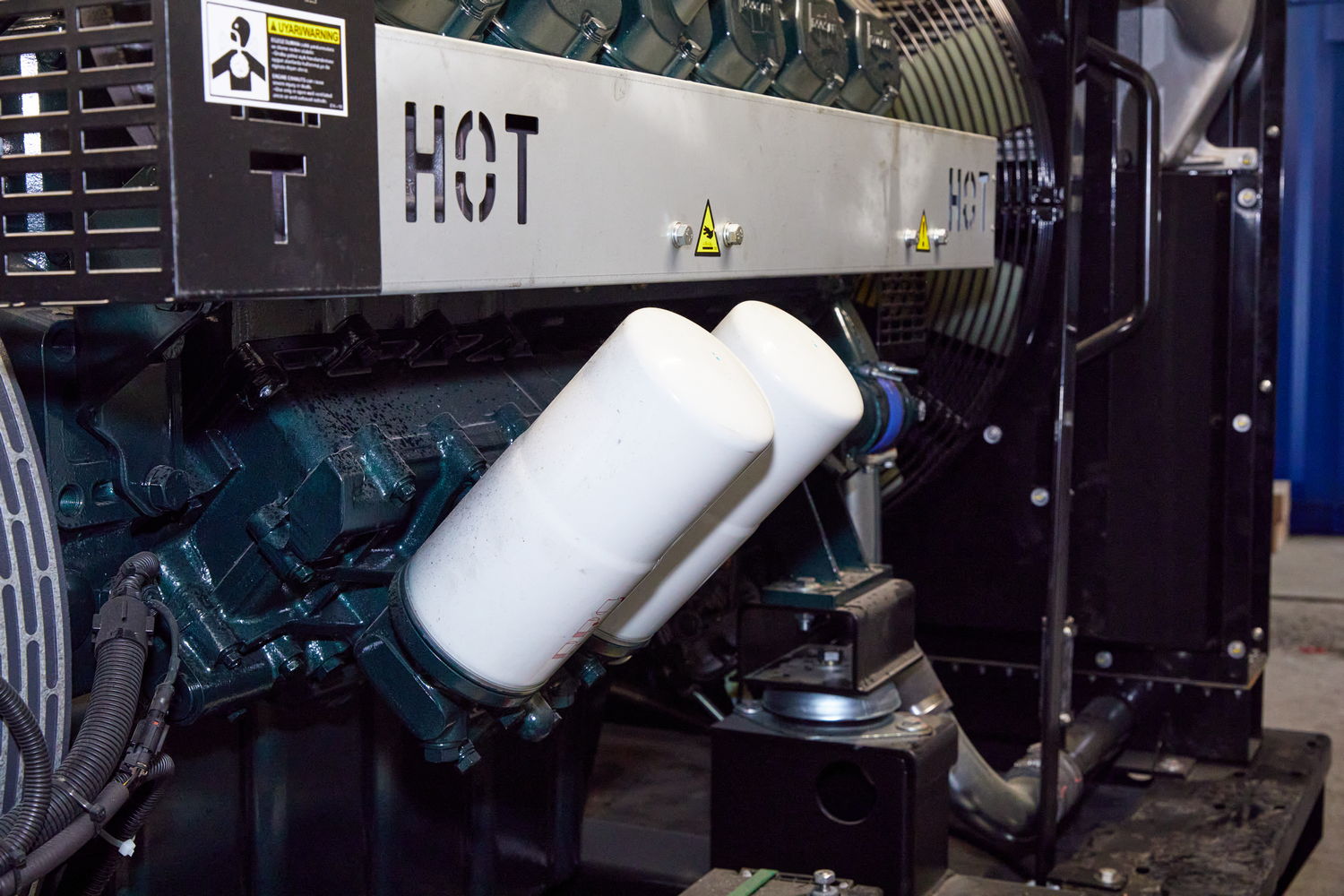

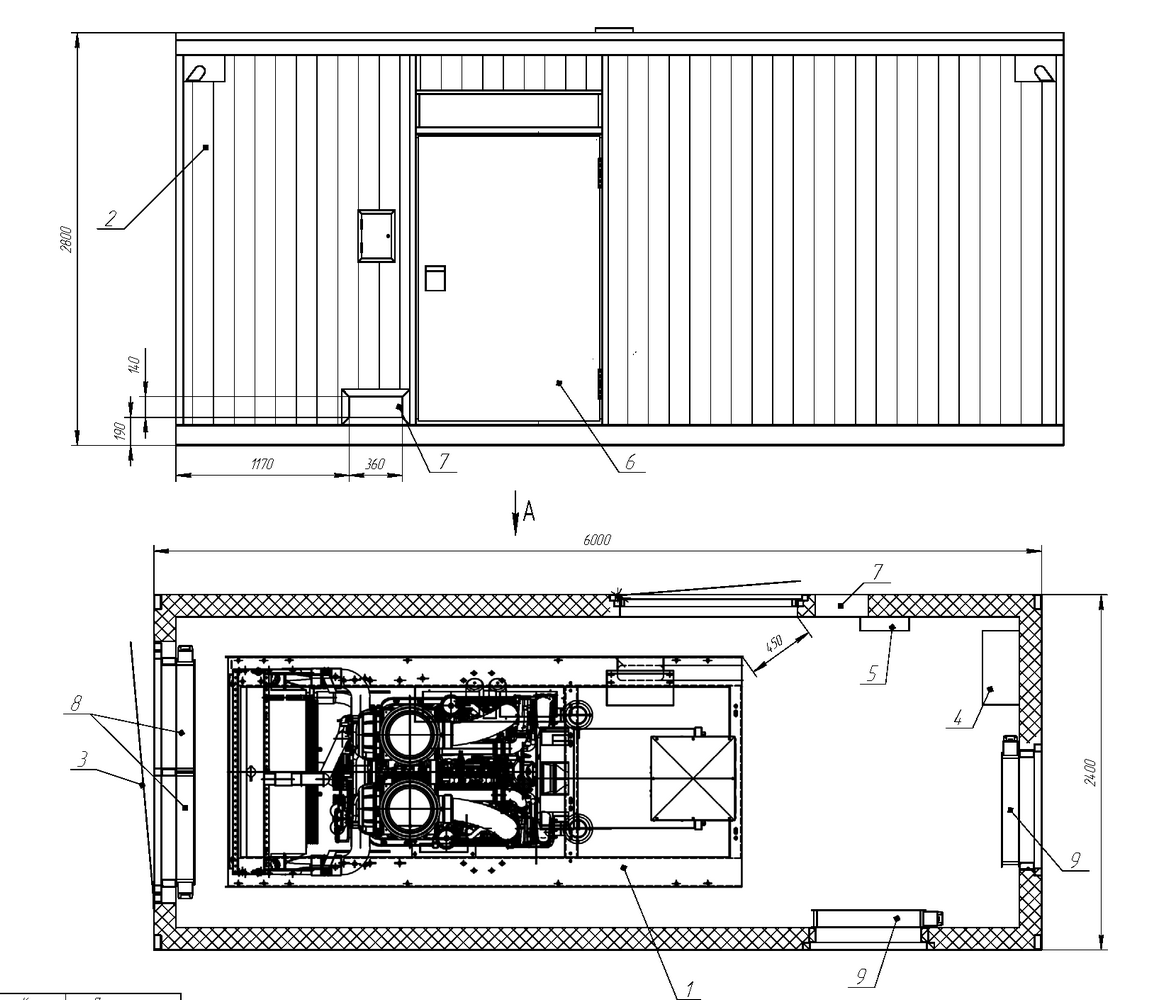

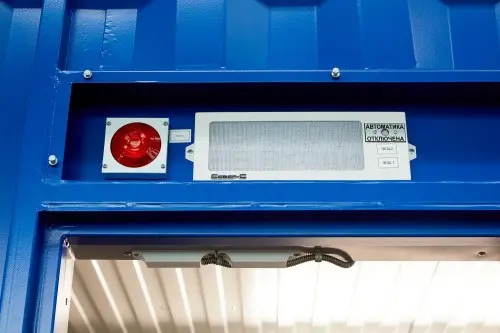

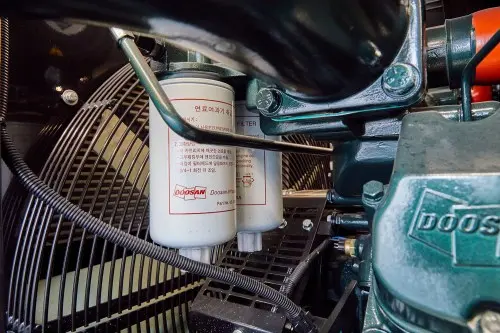

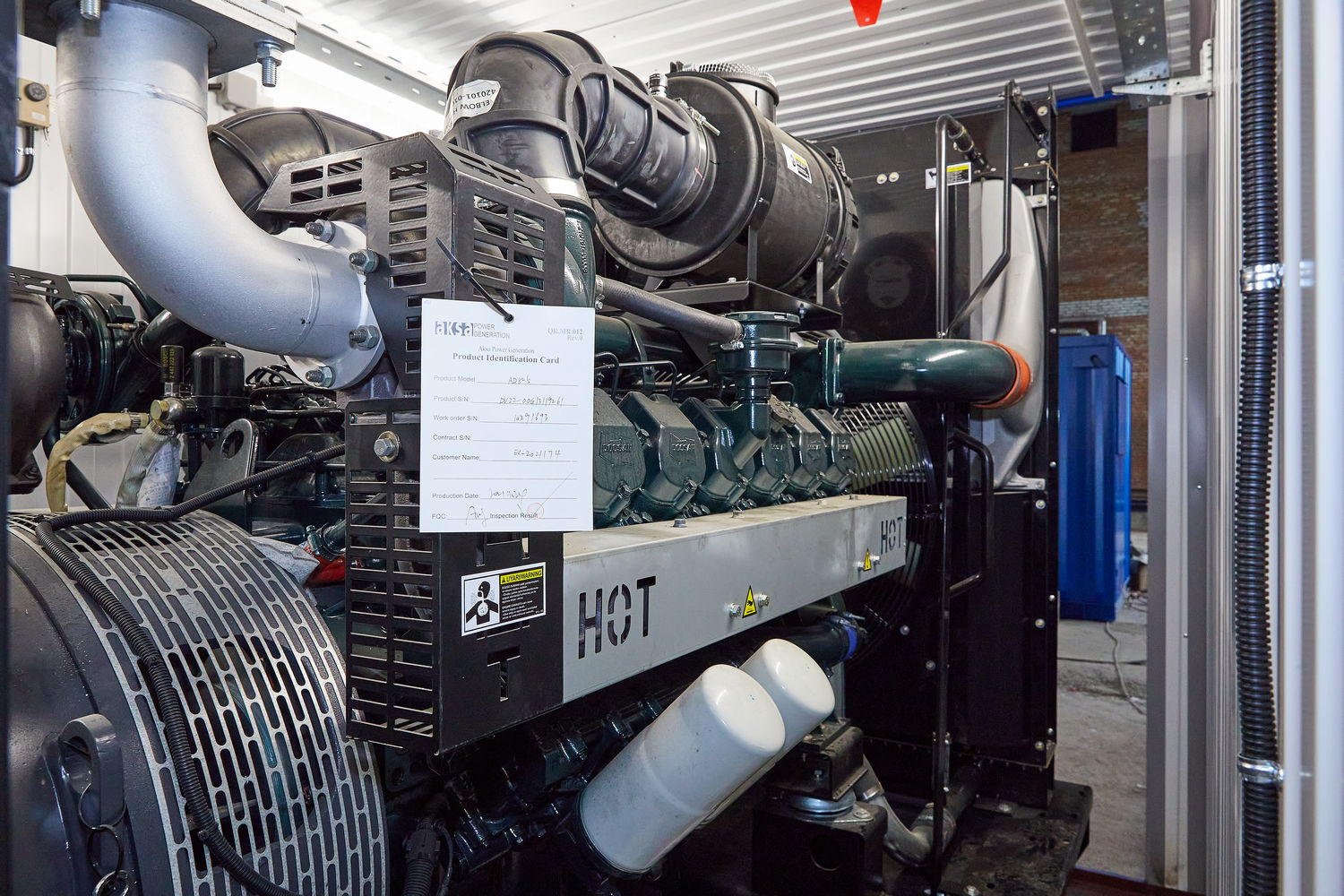

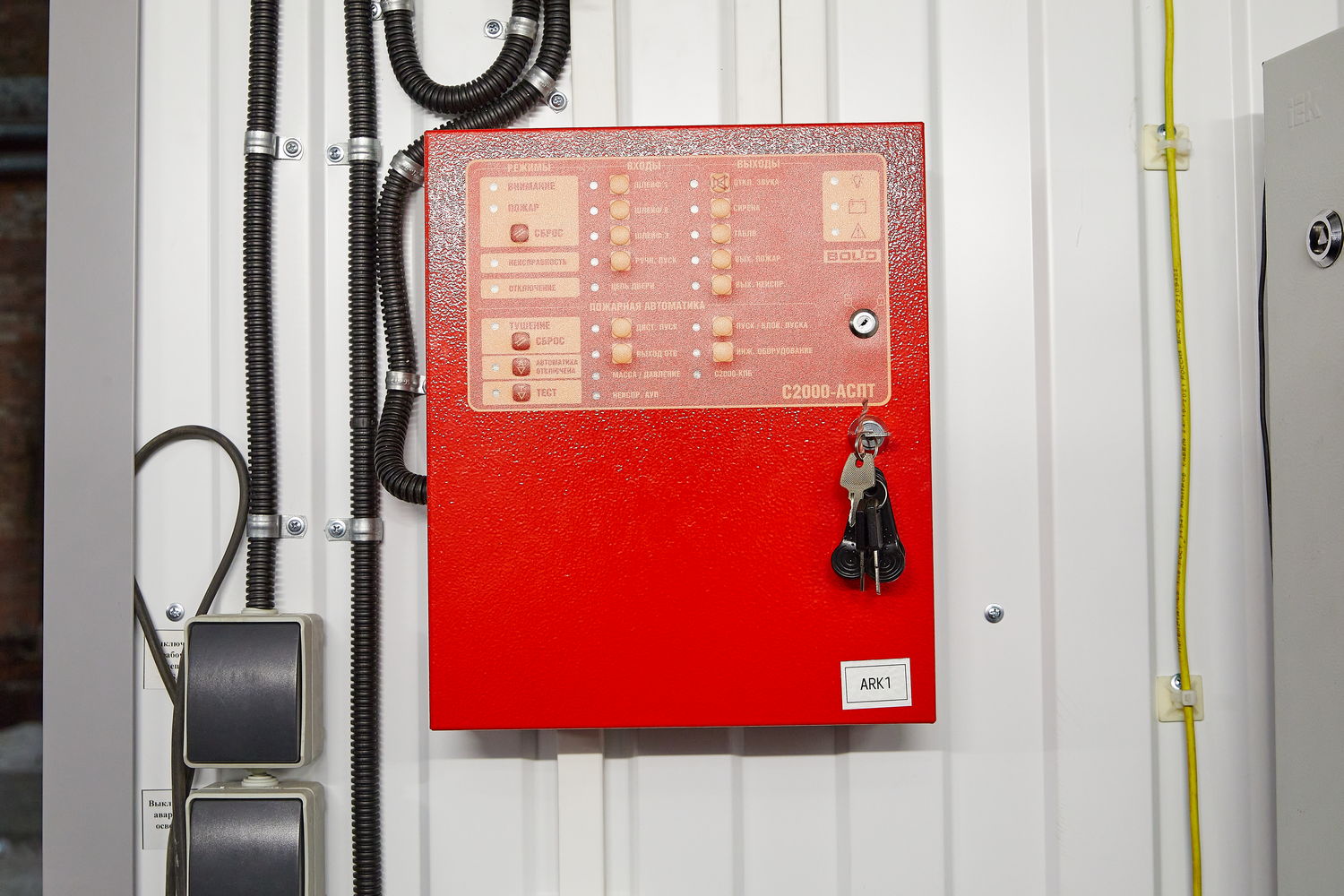

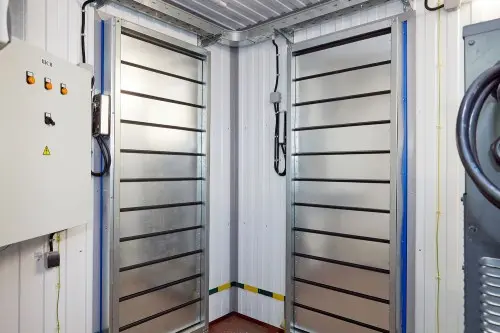

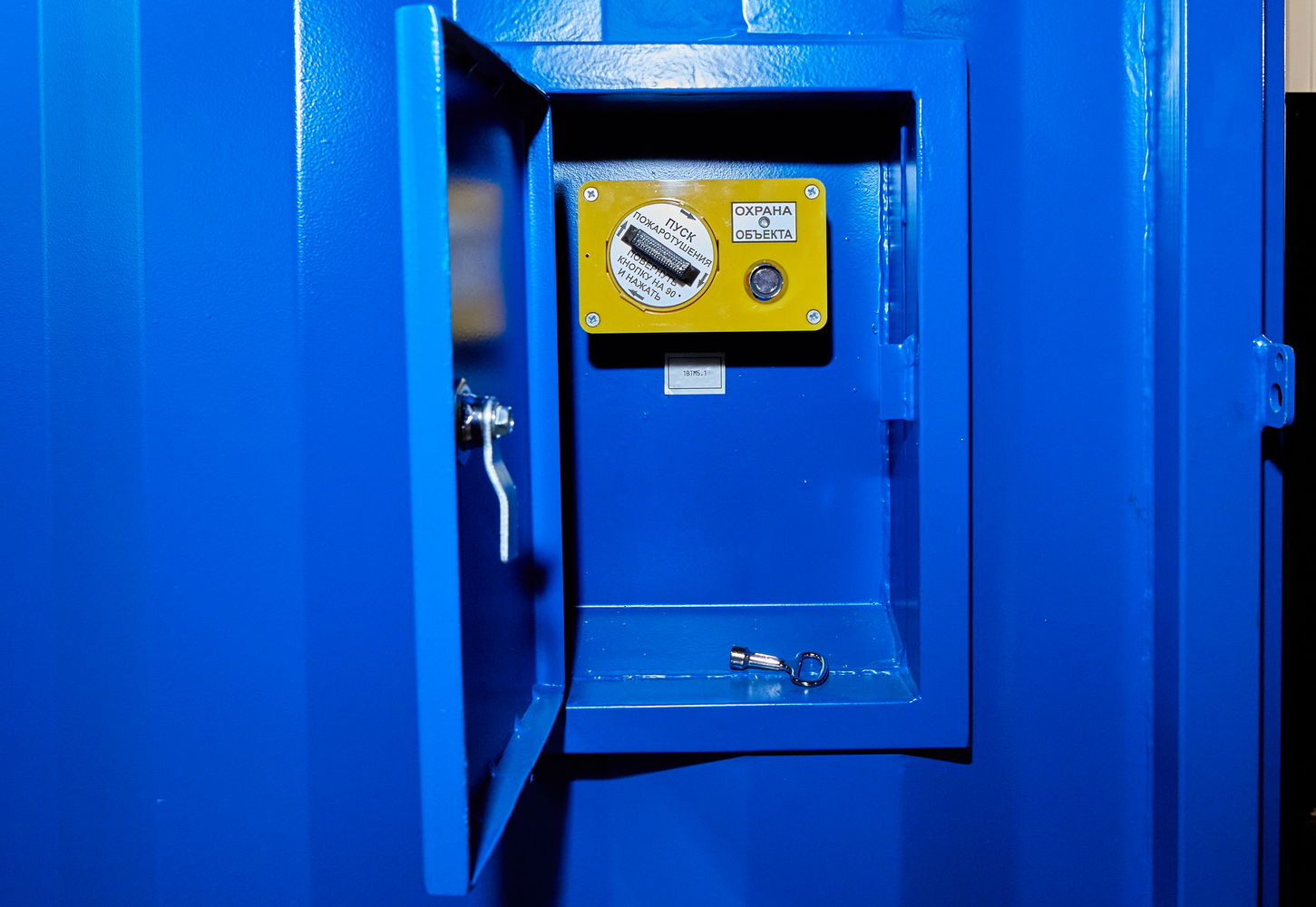

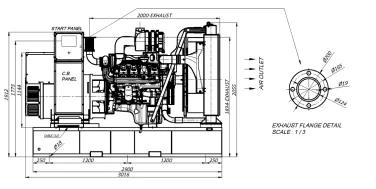

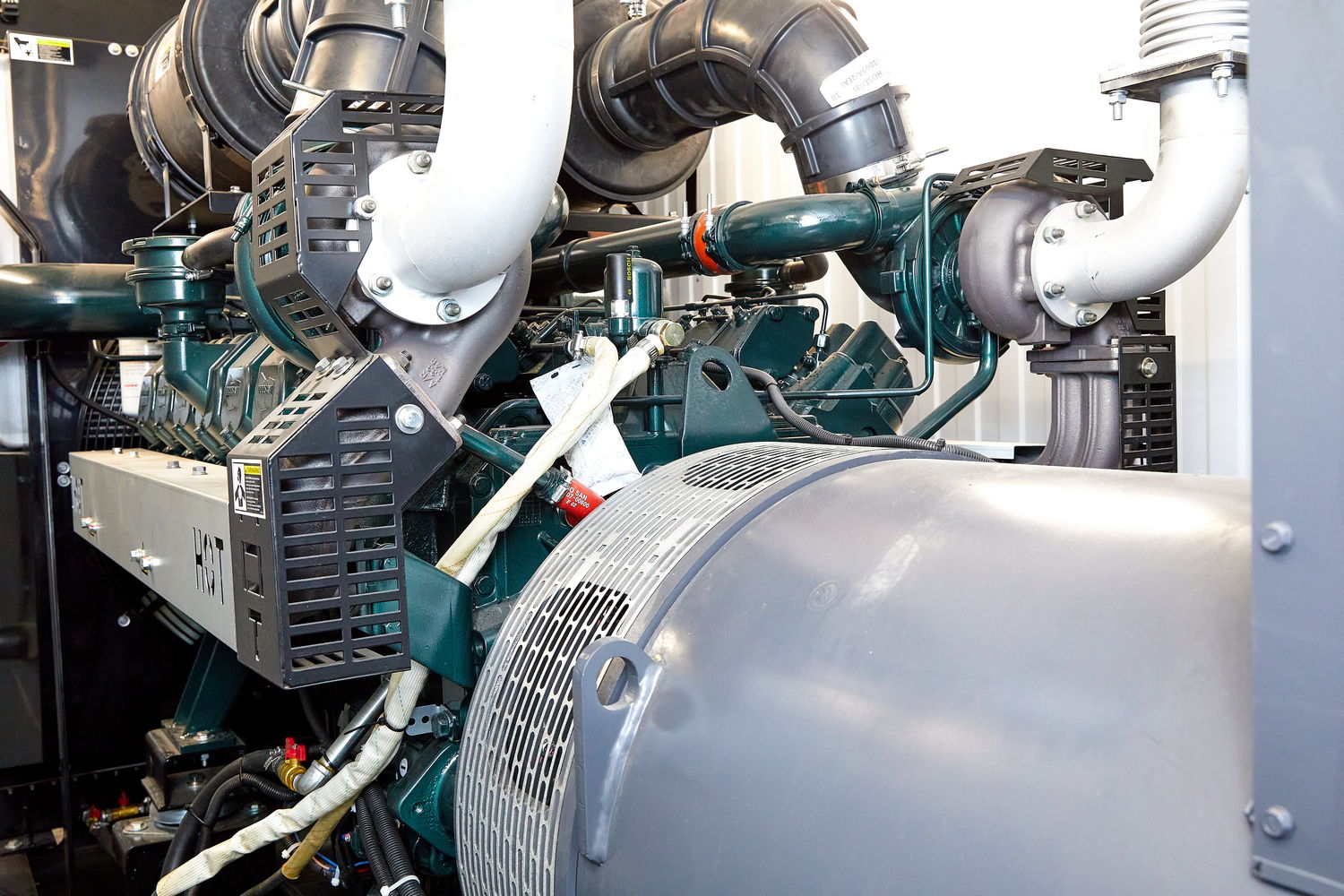

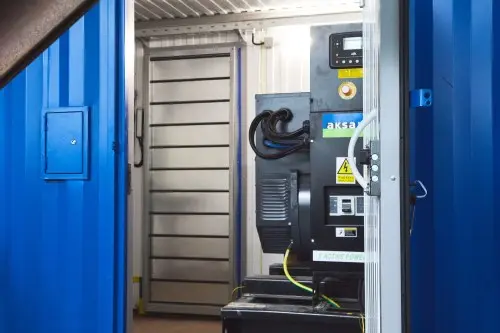

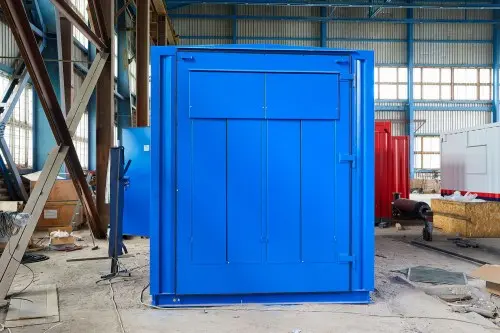

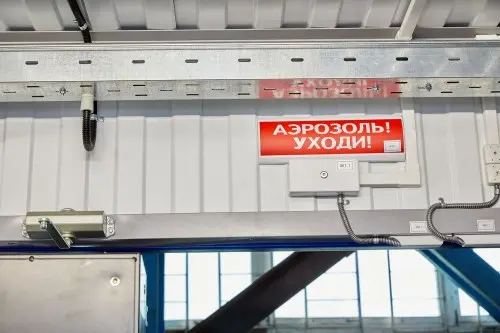

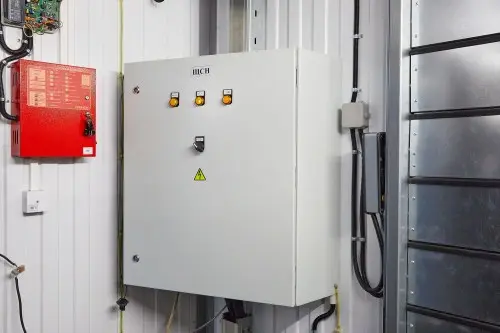

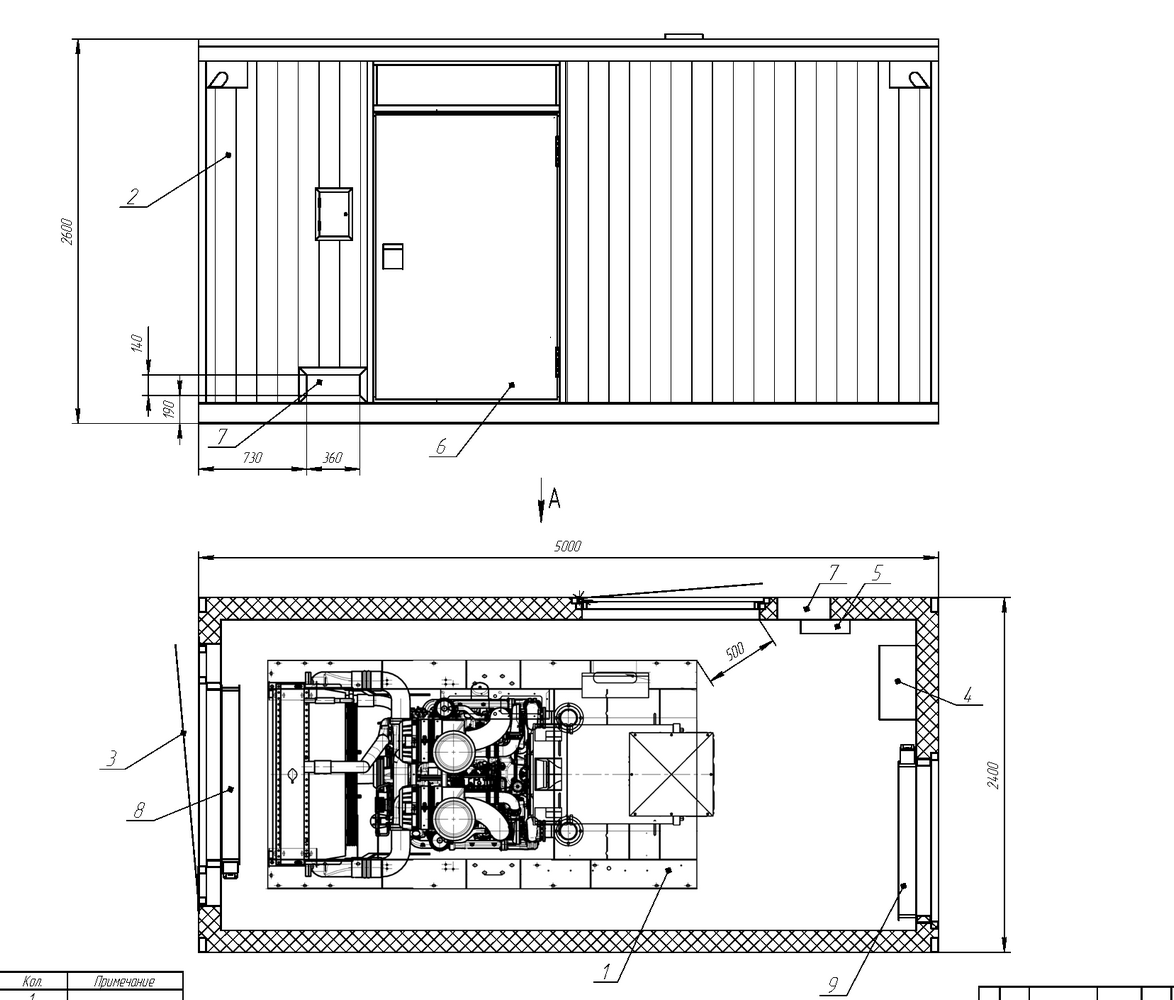

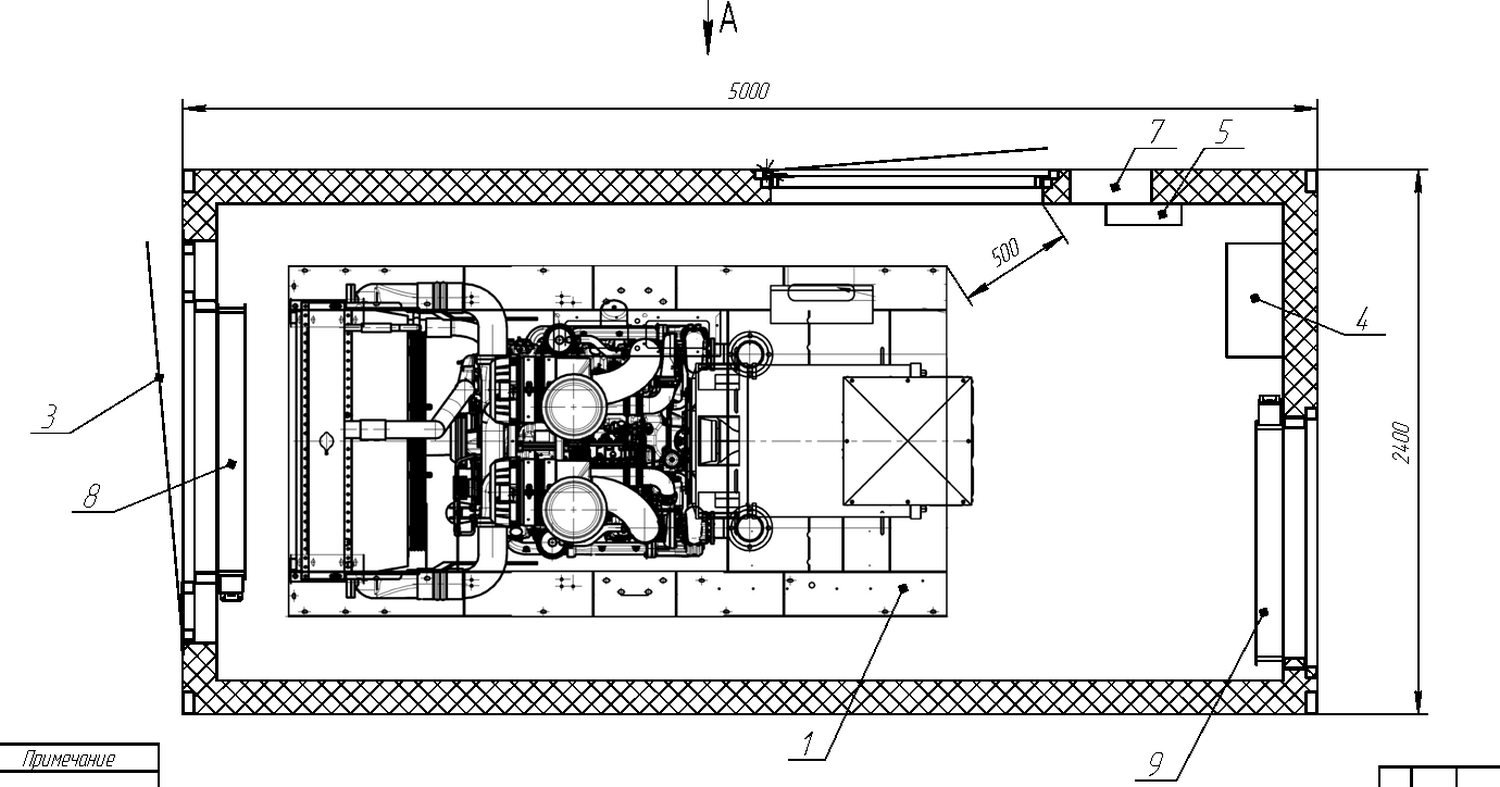

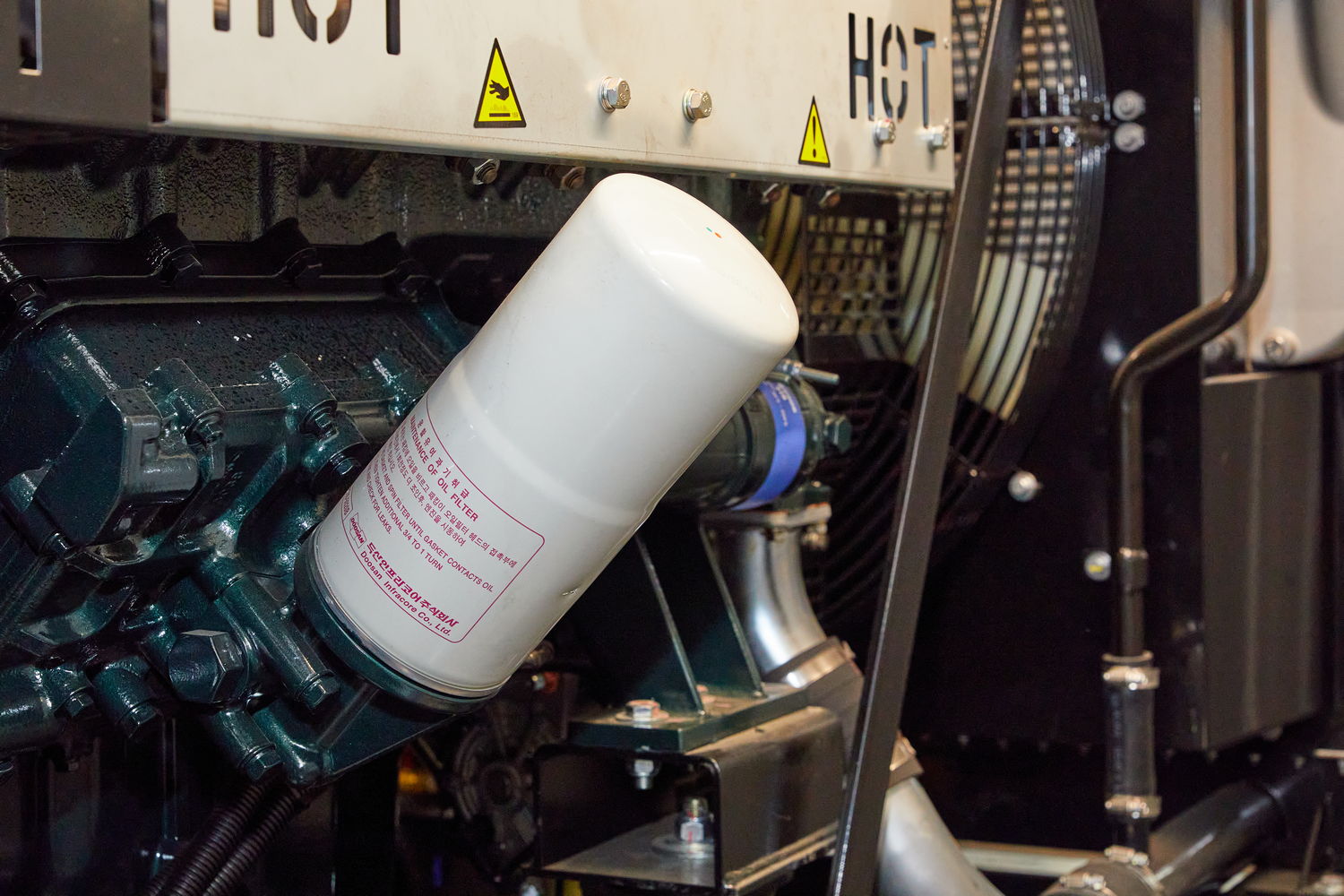

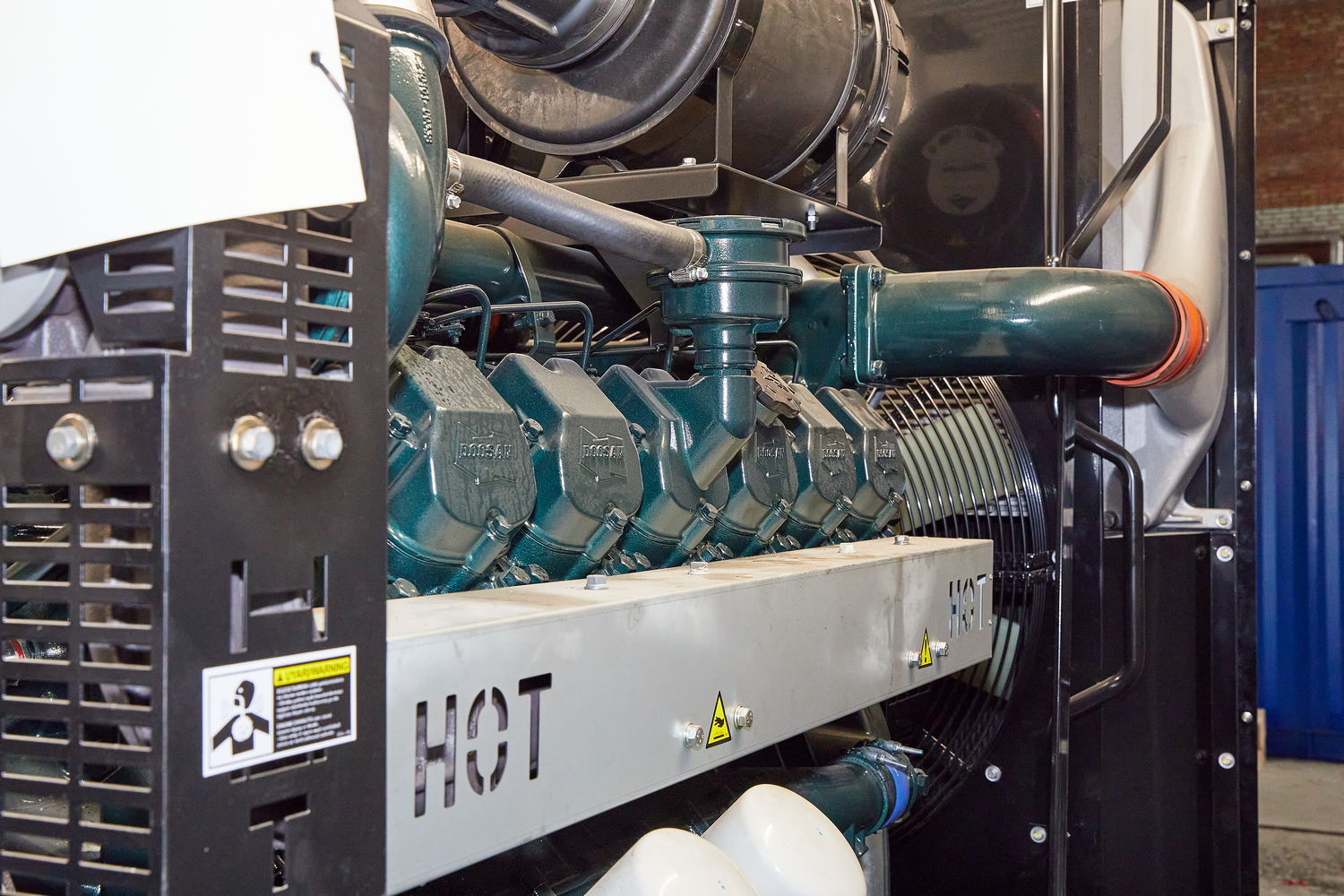

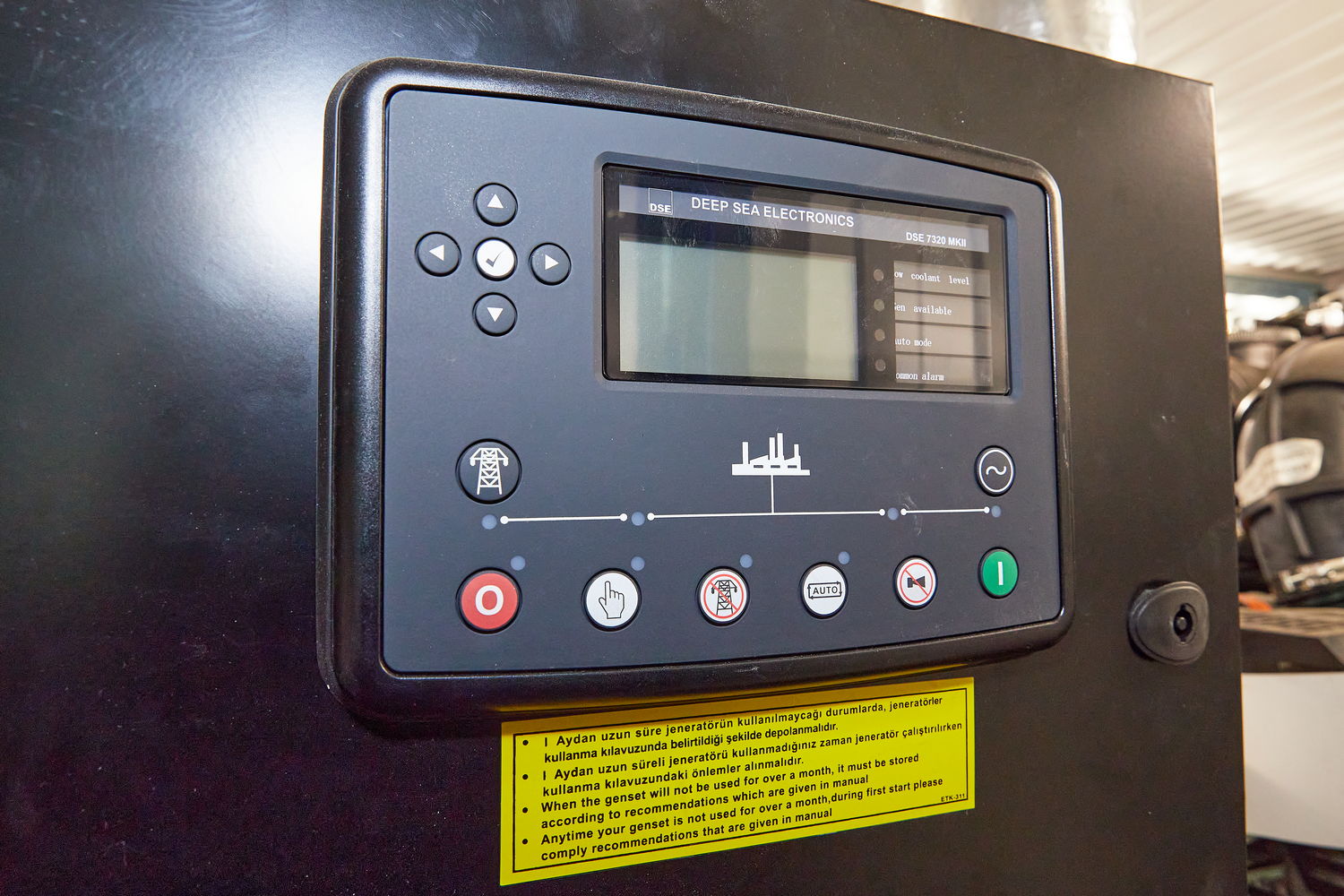

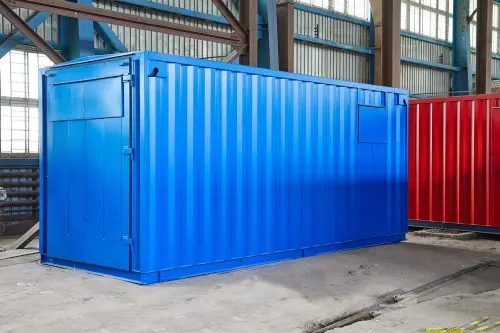

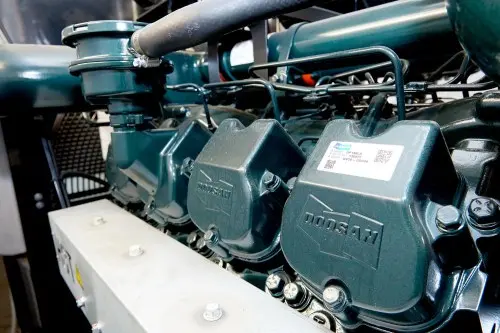

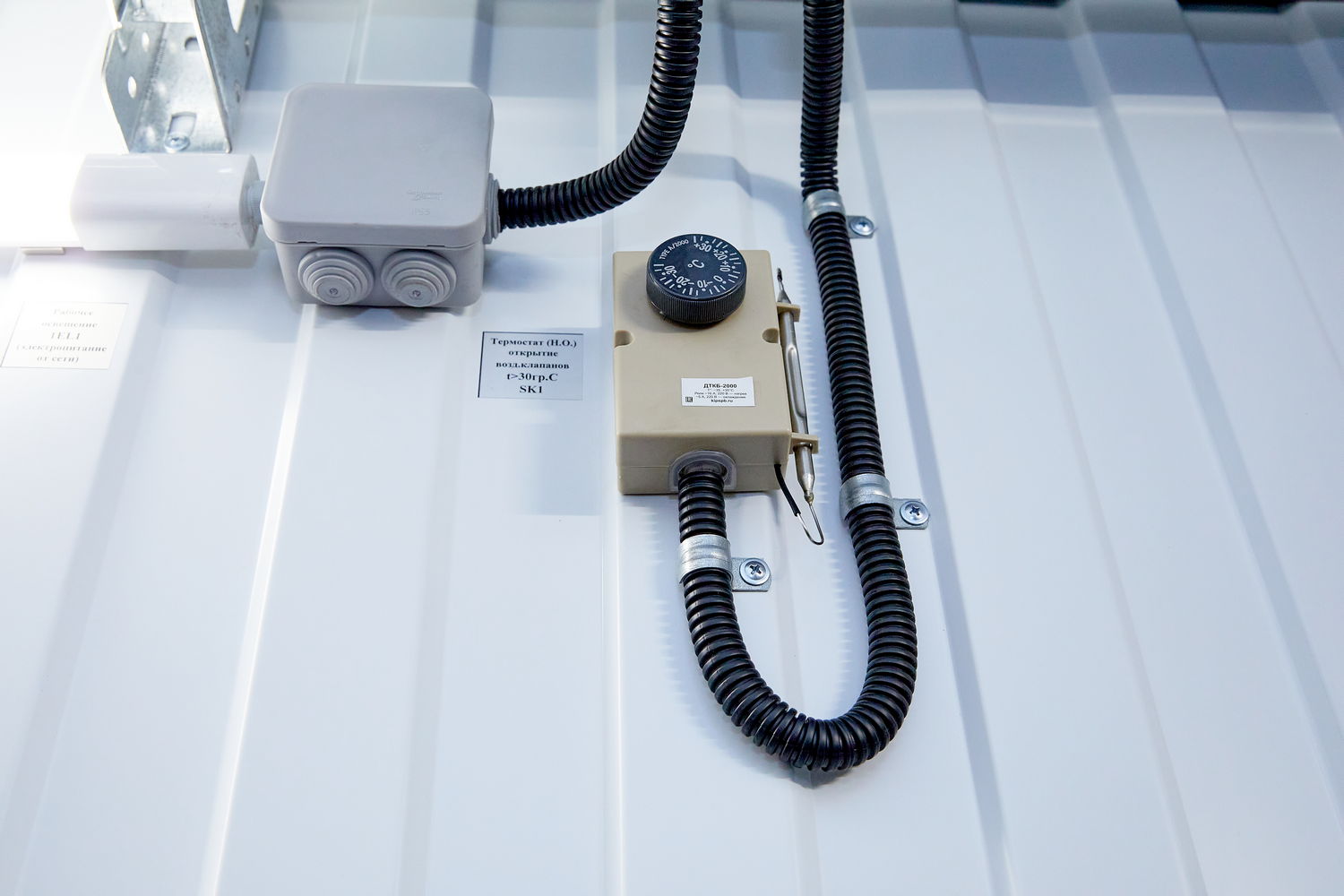

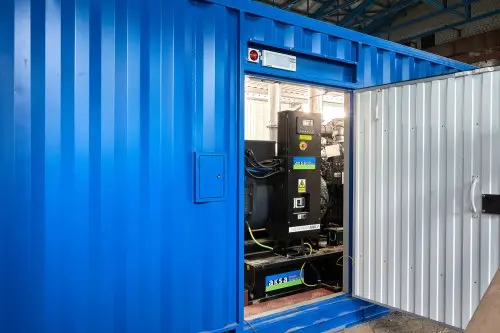

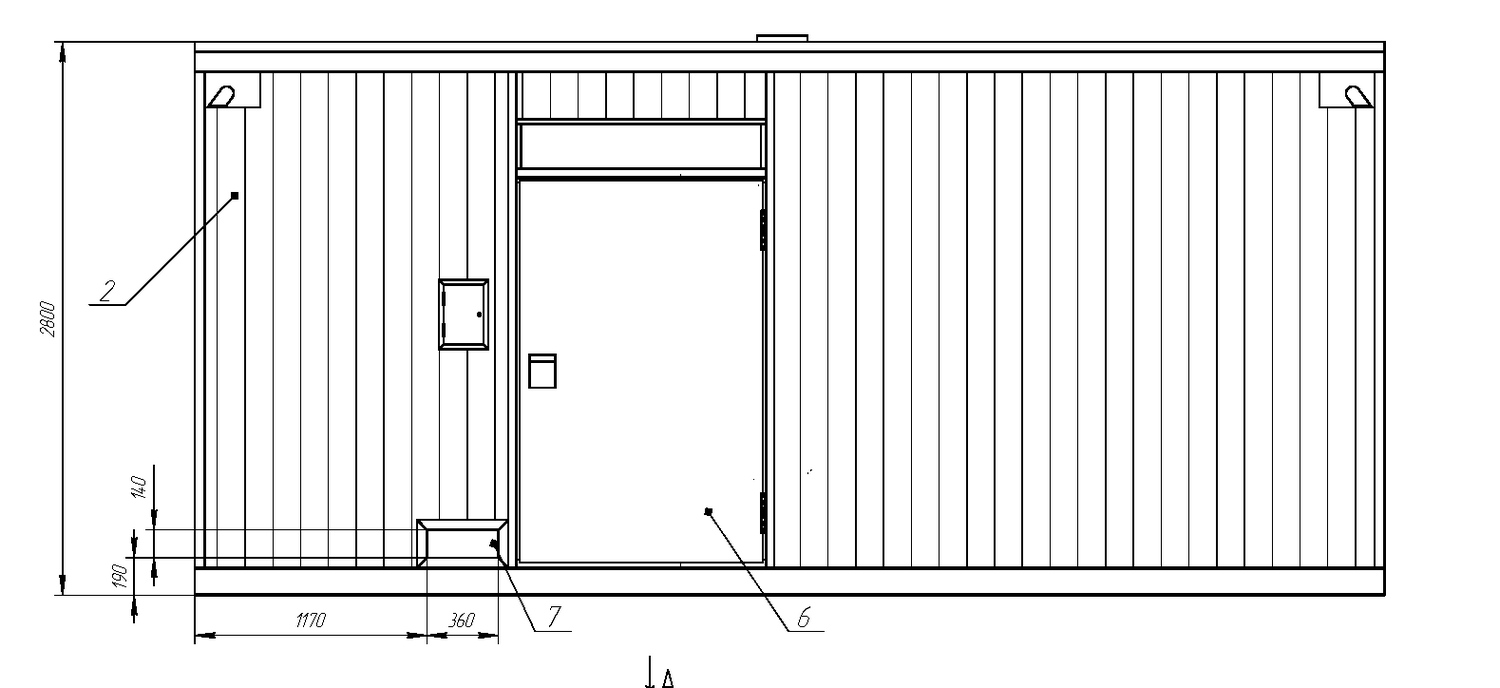

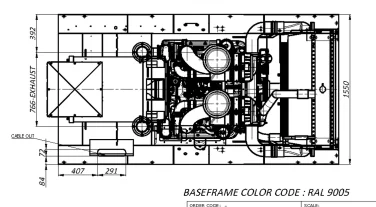

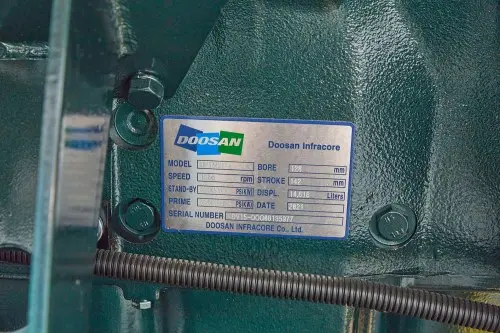

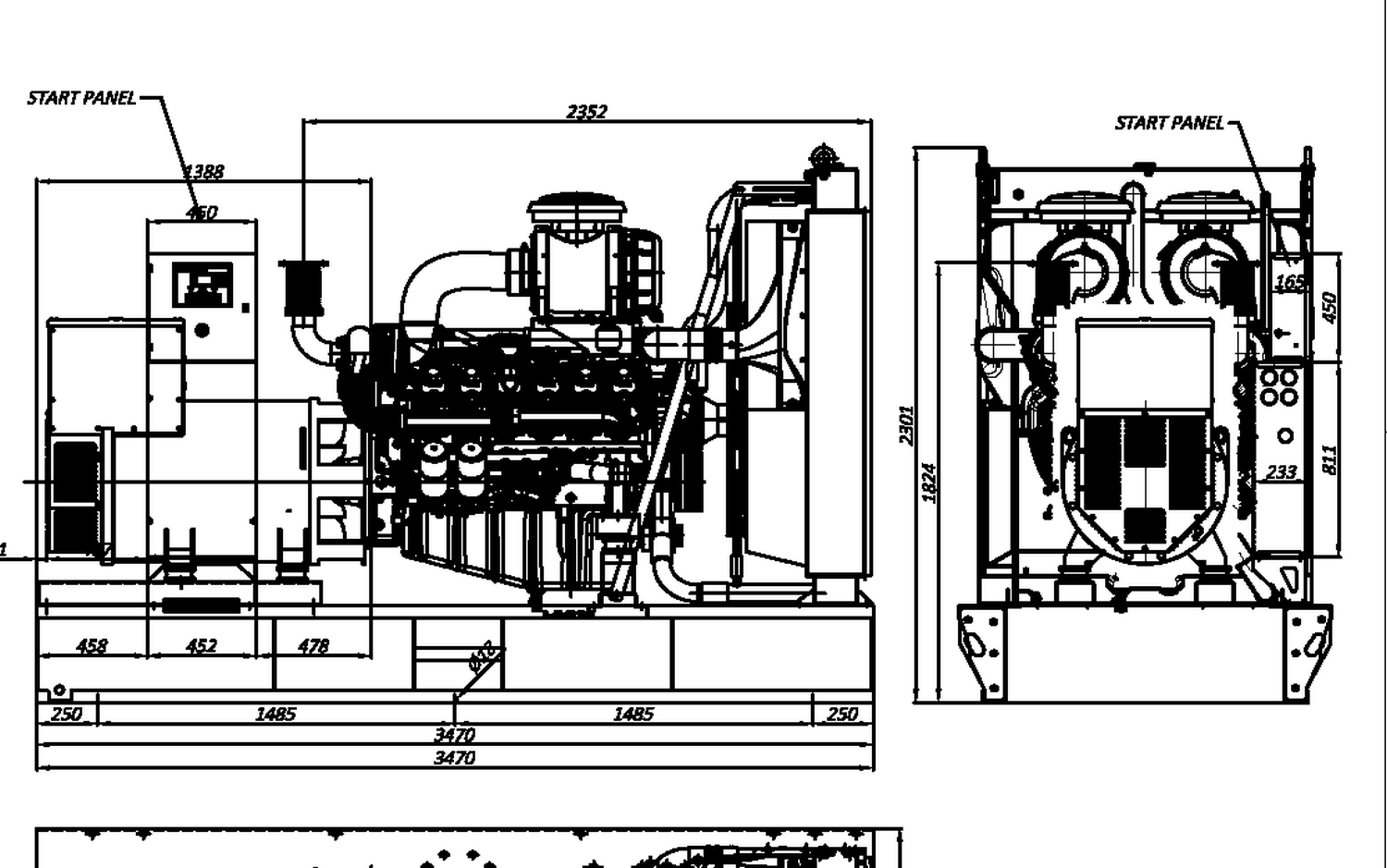

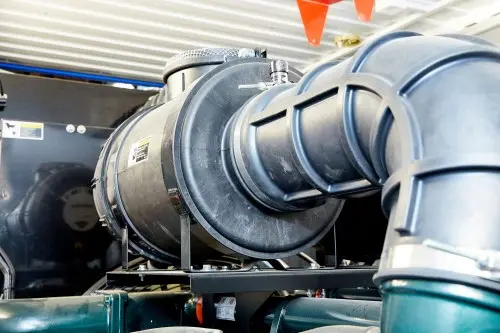

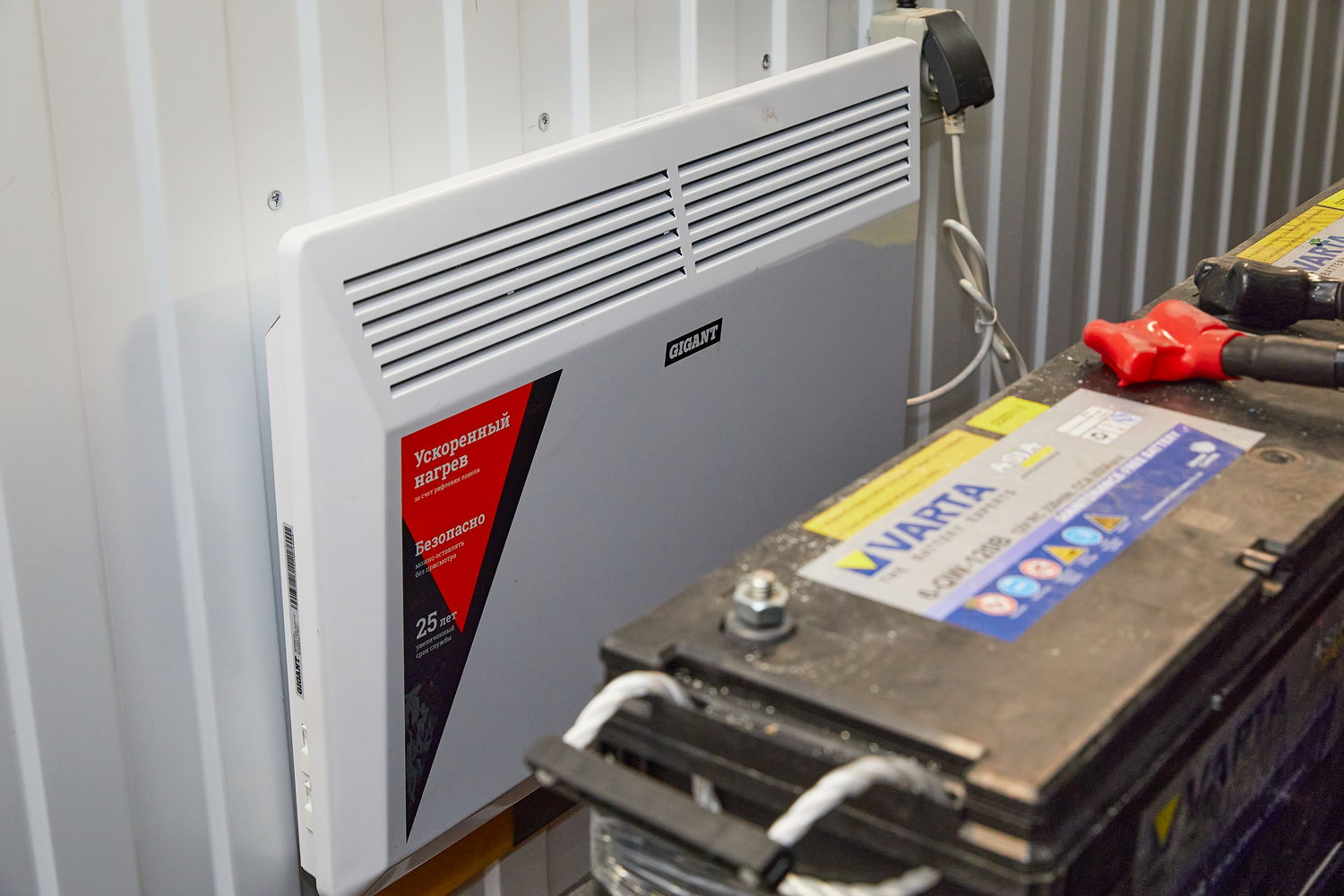

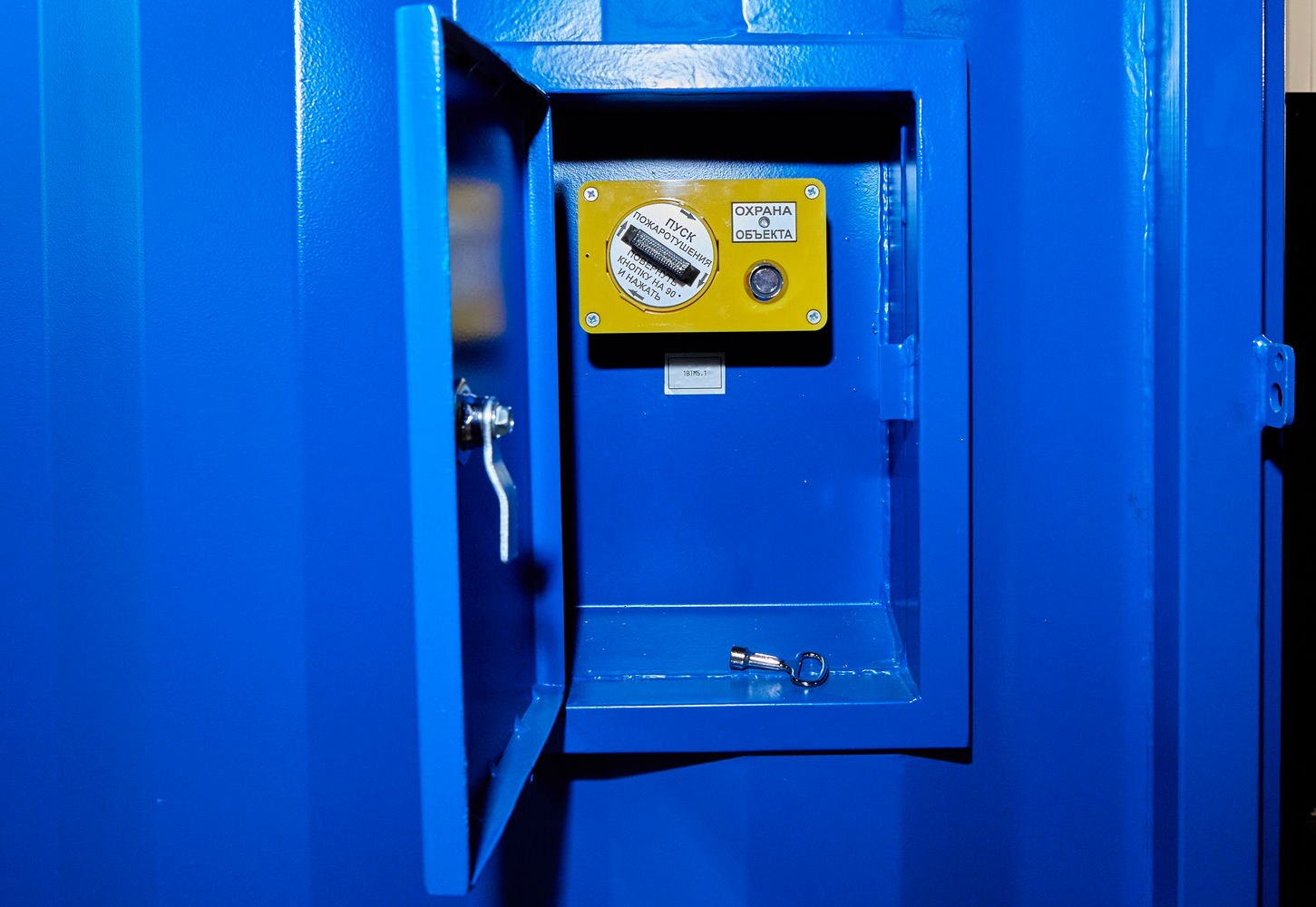

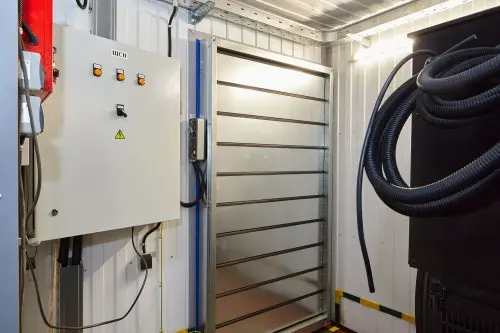

Solution	In June 2022, Techexpo company delivered two 600 kW and 420 kW containerized DGs for standby power supply of mine equipment at the Verkhnetykhtinsky site of the Karakanskoe field in the Kemerovo region. Two DGs are manufactured based on a Doosan Korean engine and a Mecc Alte generator and are controlled by DeepSea DSE7320 controllers. Containers for the DGs are manufactured at the Techexpo production facilities. DGs are completed with systems of ventilation, heating, routine and emergency lighting, auxiliaries board, fire alarm system and automatic aerosol fire extinguishing. The container has loops for top slinging. Both containers are painted in the color agreed with the client. DG TE.600С-Т400-2ЗRN power 600 kW: Doosan DP222LC engine (Korea) Mecc Alte generator Overall dimensions: 6000х2400х2800 mm. DSE7320-based automatic control panel ТE.400С-Е400-2РRN power 420 kW: Doosan DP180LD engine (Korea) Mecc Alte generator Overall dimensions: 5000х2400х2600 mm. DSE7320-based automatic control panel Video: DG video review
