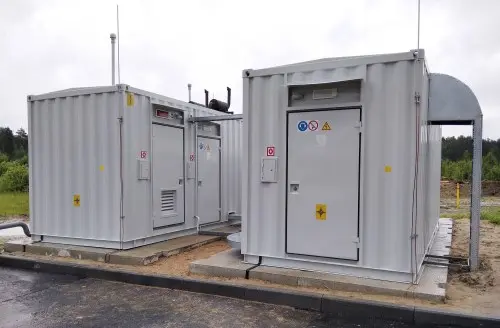

1200 kW power supply package with an underground tank and construction and installation activities with road construction for Generium biopharmaceuticals manufacturer

Total capacity 1200 kW
Client Generium JSC
Фото
Solution

In April 2021, Techexpo LLC manufactured a 1,2 MW power supply package for Generium JSC – a biopharmaceuticals manufacturer with labs with an area of 4.500 m2. Generium produces pharmaceuticals: Sputnik V, Antigma, Isoterm SARS-CoV-2, RNA-screen, Coagil-VII, Octofactor, Innonafactor, etc.

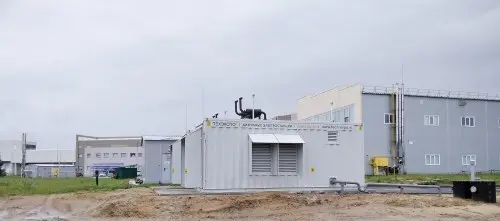

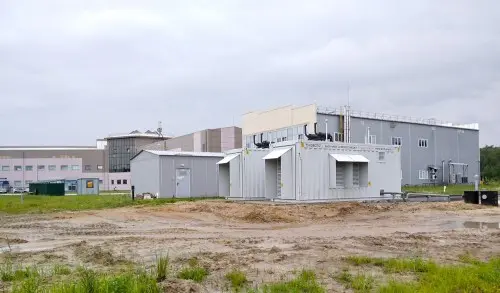

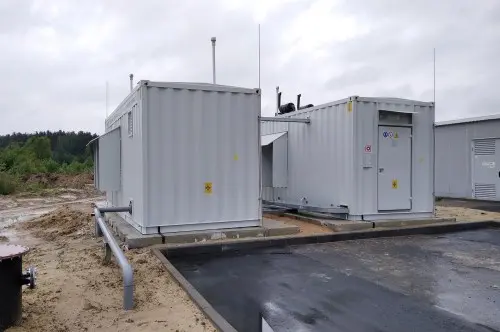

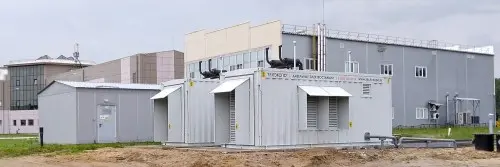

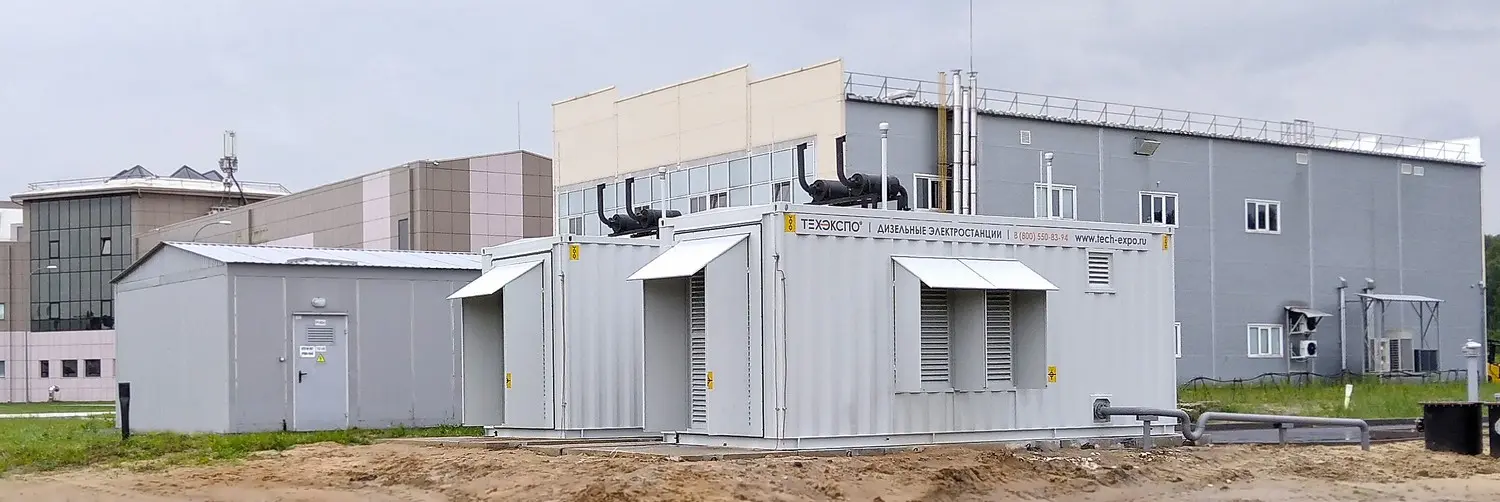

Techexpo built a 1,2 MW power supply package in the Vladimir region and modernized a 2500/10/0,4 packaged transformer substation to provide laboratory buildings, administration and storage buildings, and a boiler-room with emergency power supply. In addition, the Techexpo construction and installation department paved the asphalted road from the laboratories to the power supply package.

Энергокомплекс 1200 кВт и модернизация КТП

1,2 MW power supply package including:

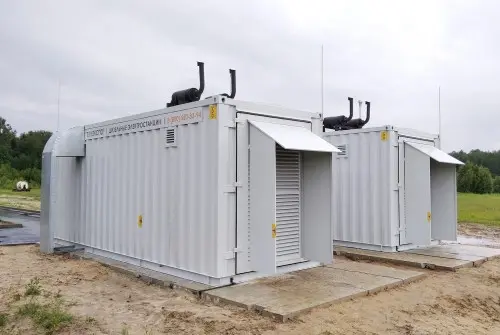

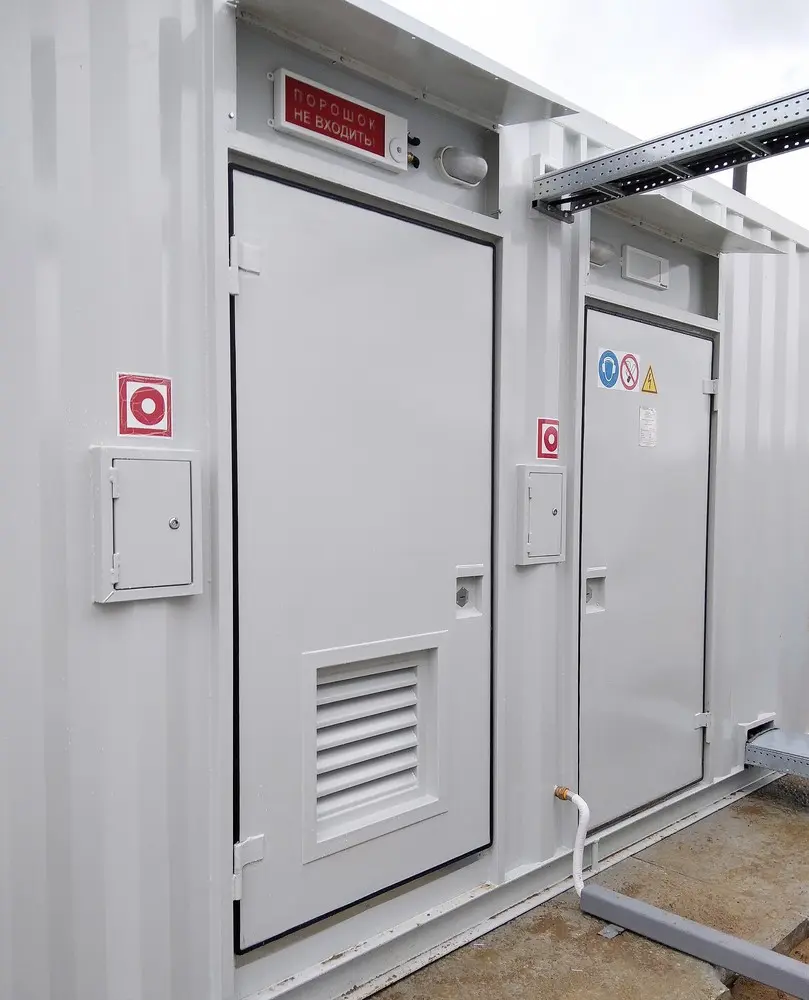

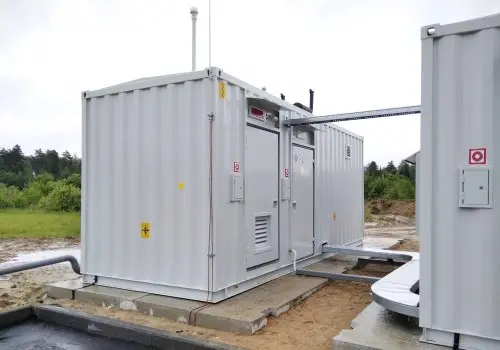

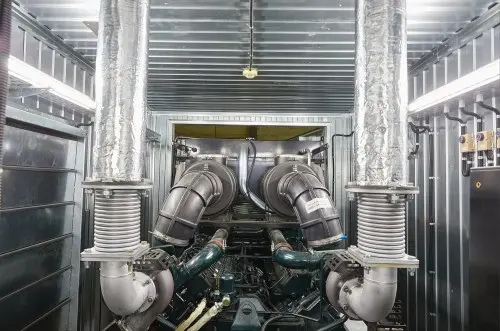

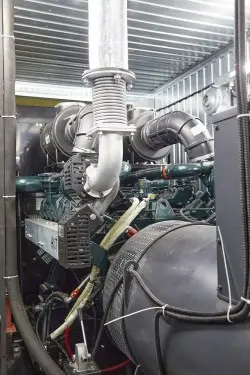

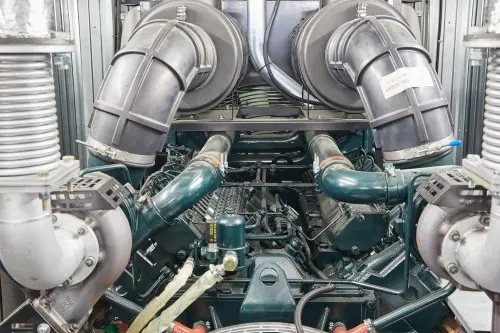

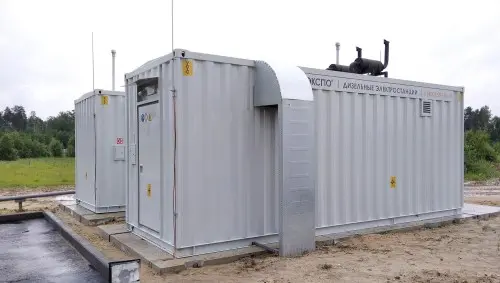

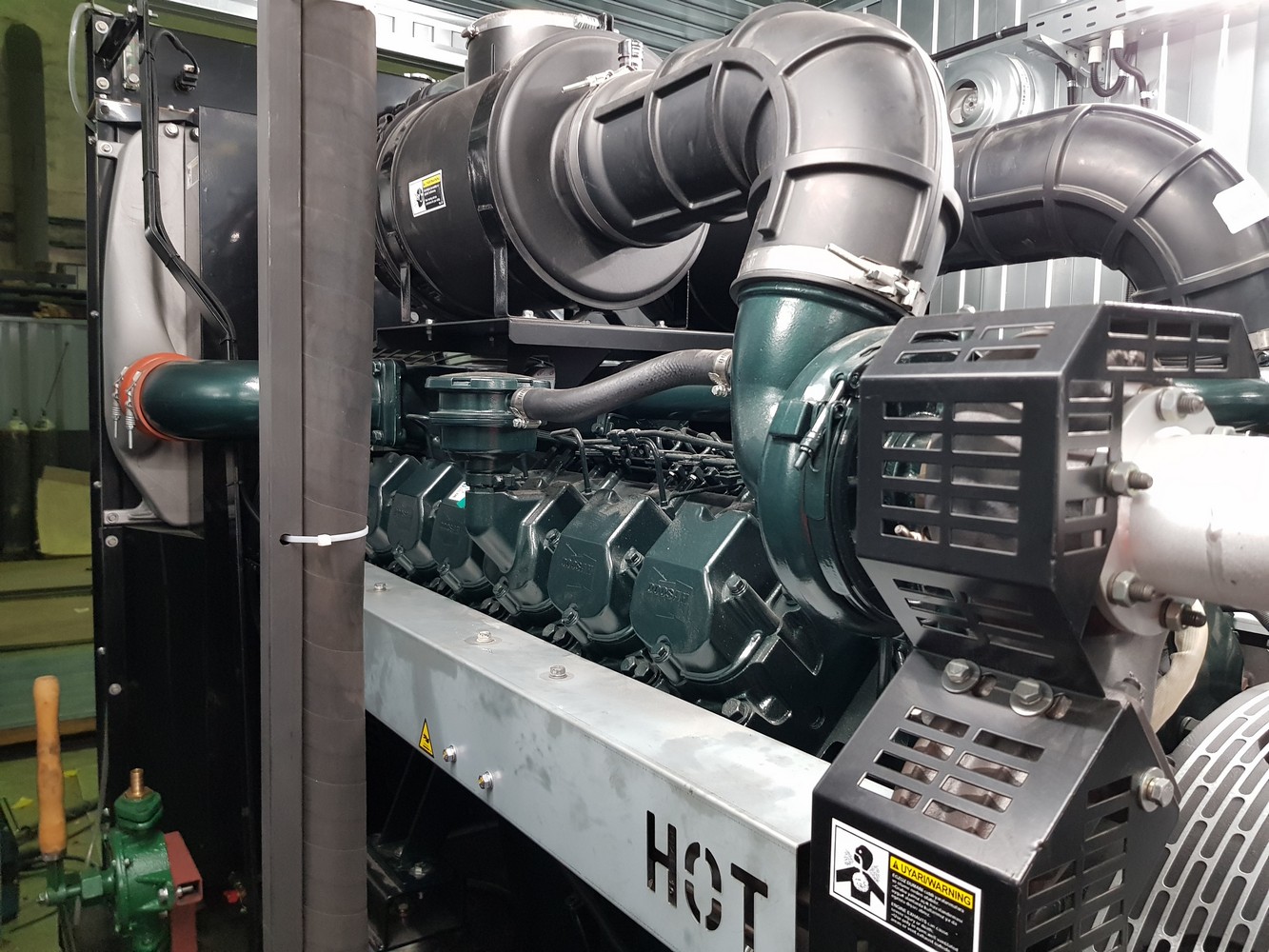

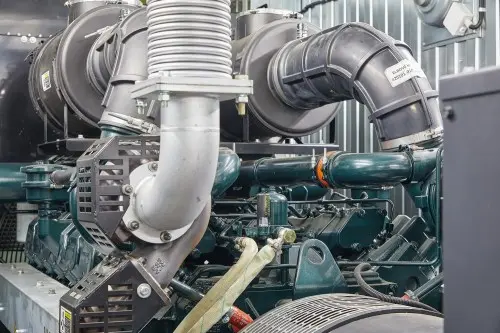

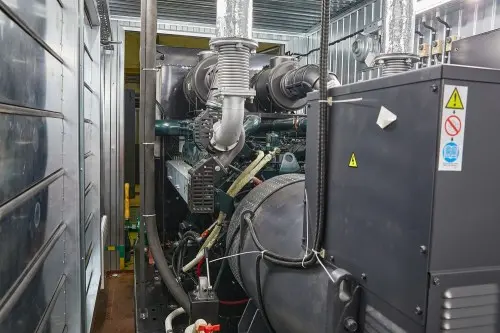

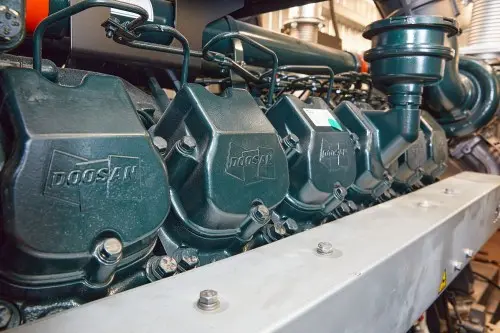

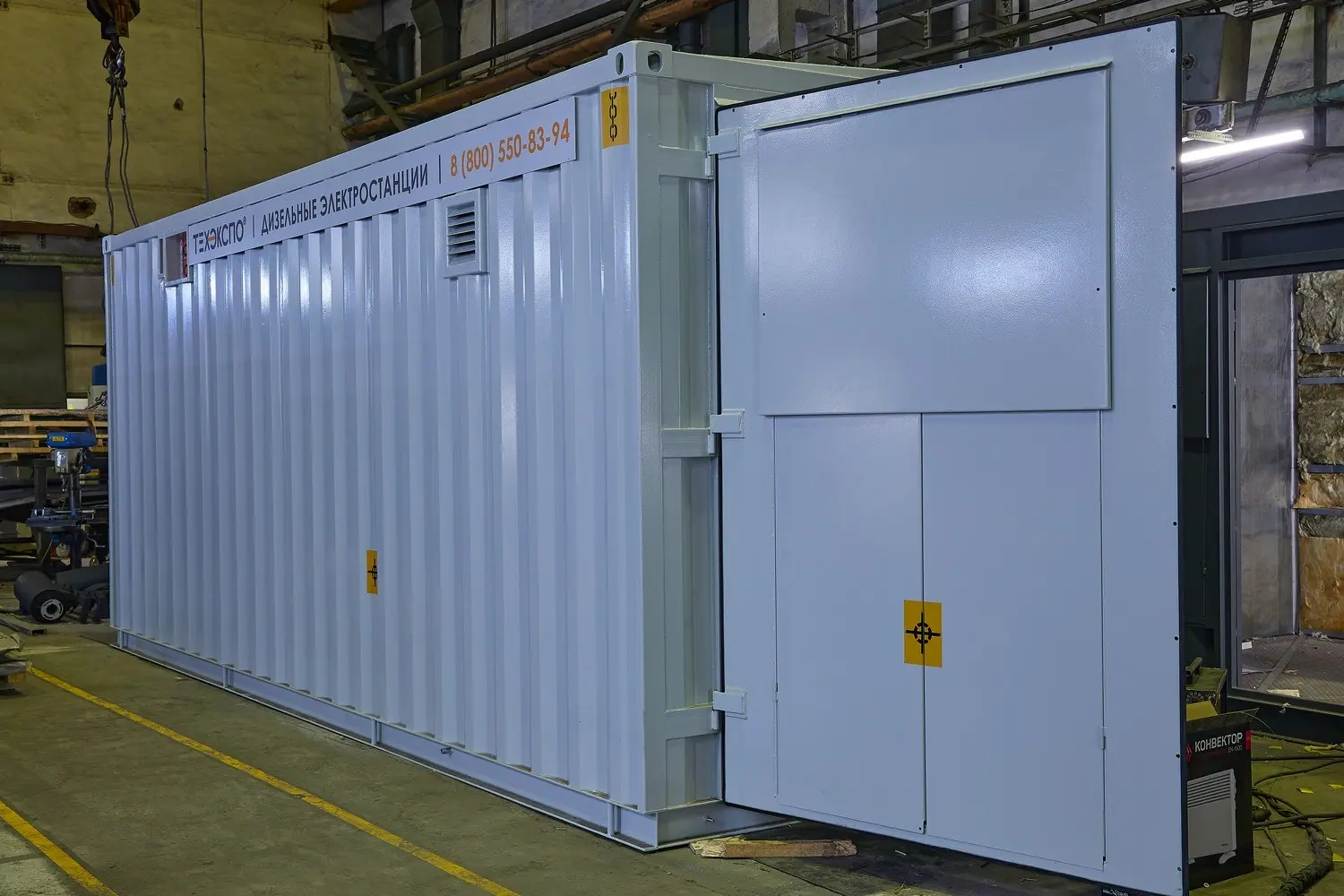

  • Two TE.600С-T400-2RN based on Doosan DP222LC engine (South Korea) DGs with Mecc Alte EVO 40-VL (Italy) alternator in all-welded Sever-type containers of 7000х2500х3000 (LхWхH) dimensions with a 2000-liter shared fuel in a separate room and with a cabinet of common buses in a separate room.

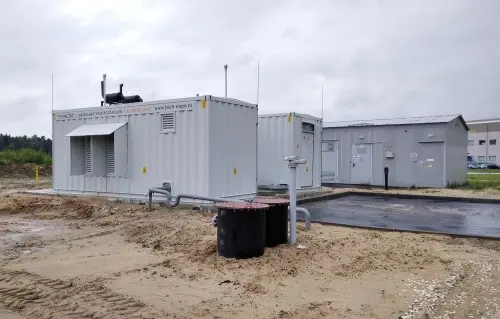

  • EP-3 emergency fuel collection tank of the genset, volume: 3 cubic meter volume.
  • 0,4 kV diesel genset lightning protection
  • 0,4 kV diesel genset grounding
  • Low-voltage package module 0,4 kV terminal panel + copper buses SHMT 10*120.

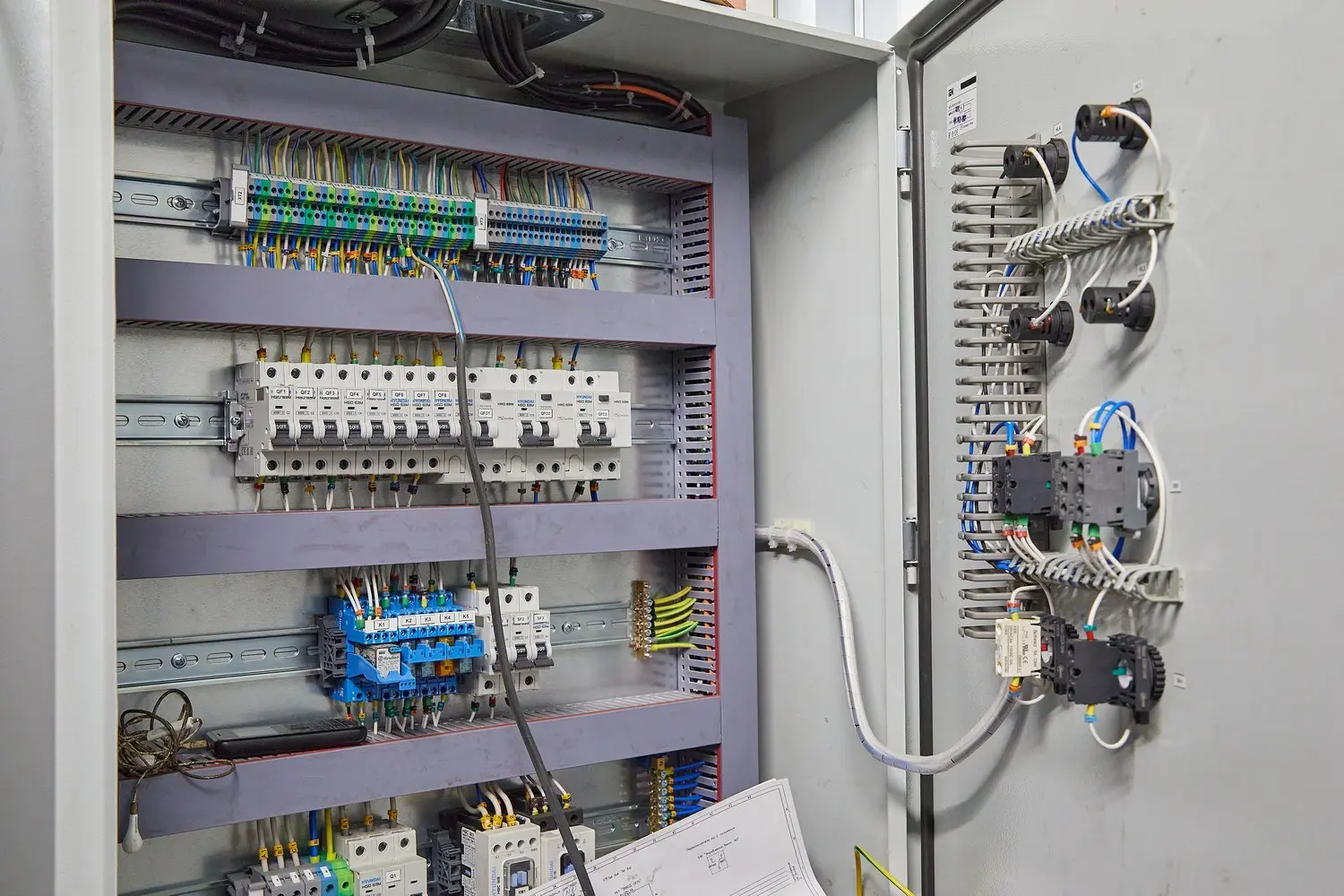

  • Assembled ATS panel.

Construction and assembling operations

1) cabling and wiring products including four-core copper cable VVGng(А)-LS 4*240 ms-1 (200 m) and KGVVng(А)-LS 1*240-1 (300 m).

2) foundation for the diesel genset

3) foundation for the EP-3 emergency drain tank

4) cable routing from TP 967 to DG 0.4

5) materials for the foundation of DG and EP-3

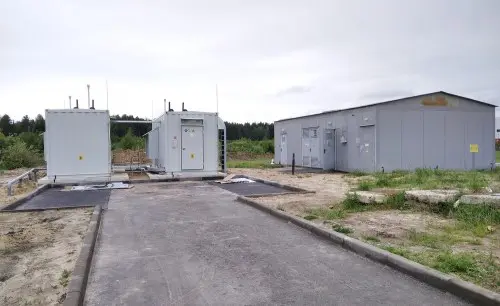

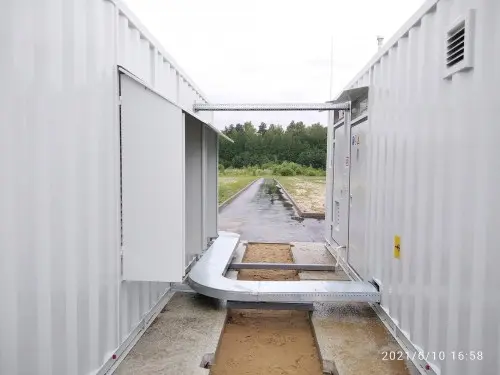

Performing work for arranging an access road 113*3.5 m and 7*8 m site.

1) excavation with loading and removal.

2) sand and macadam stone base with the tamping.

3) 2-layer asphalt laying with bituminous grouting.

4) curb laying.

5) materials for the access road.

Order the budget estimation for a similar project - make a request to

We’ll send an engineer to your site for free pre-project inspection, select equipment, develop the budget.
