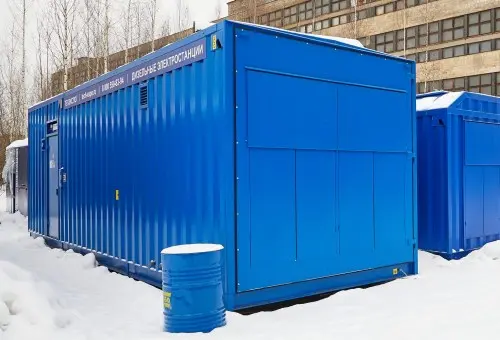

1.6 MW containerized diesel genset with 200 kW load resistor to Karelia for Glabrybvod Federal State Budgetary Institution

To deliver a 1.6 MW containerized diesel genset, rated power 200 kW, fuel tank, to Glavrybvod Federal State Budgetary Institution

In 2022, Techexpo LLC won a tender for the supply of a container diesel generator TE.1600S-T400-2RN with a rated power of 1600 kW based on a Mitsubishi S16R-PTAA2-C engine and a Mecc Alte ECO 46-1L/4 A current generator.

The “Main Basin Administration for Fisheries and Conservation of Aquatic Biological Resources” Federal State Budgetary Institution (“Glavrybvod”) is the largest and only state vertically integrated organization created to conserve aquatic biological resources of the country. Glavrybvod is subordinate to the Federal Fishery Agency.

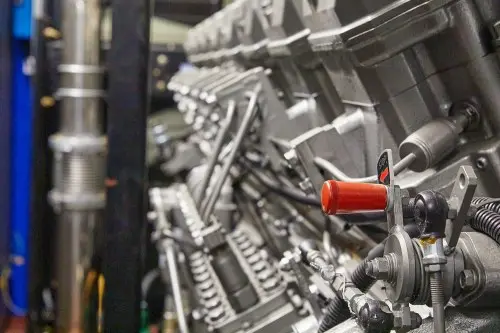

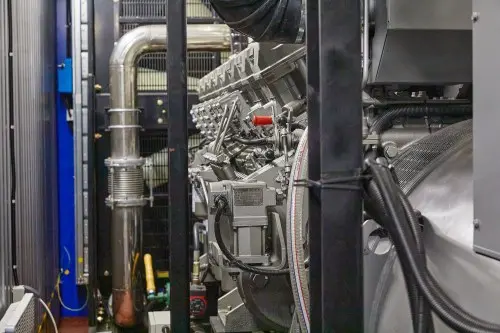

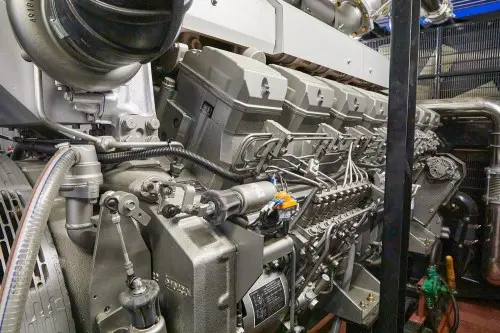

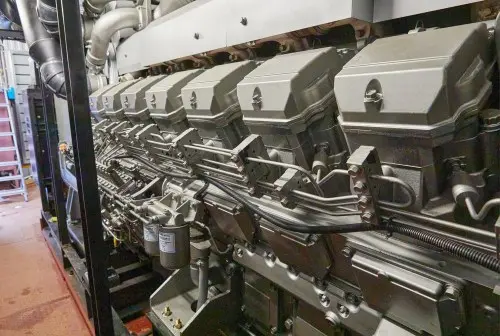

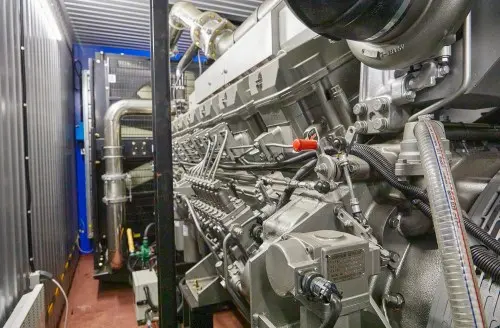

TE.1600S-T400-2RN genset with a rated power of 1600 kW based on a Mitsubishi S16R-PTAA2-С engine and a Mecc Alte ECO 46-1L/4 A current generator is intended for use as a backup source of electricity for the Glavrybvod fish breeding center in the village of Sosnovets (Karelia). Climatic loads - snow region IV (250 kg/m2), wind region II (30 kg/m2).

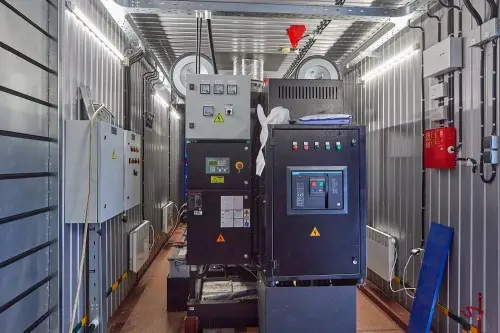

The genset includes the following technological equipment:

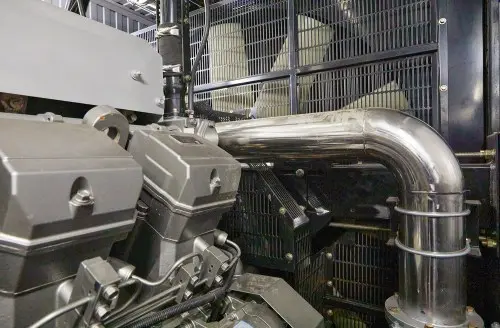

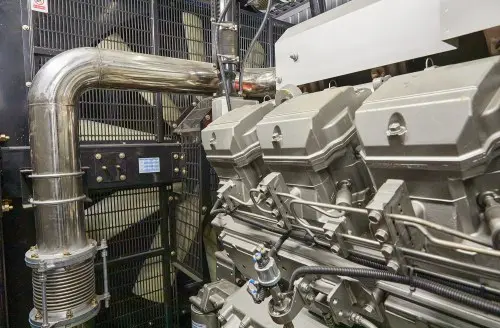

• Exhaust system;
• Technological air ventilation system;
• 0,4 kV power output system;
• Oil system;

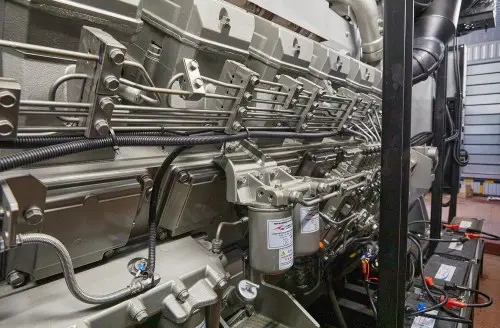

• Fuel system
• Cooling system;
• Lighting system;
• Heating system;
• Grounding system;

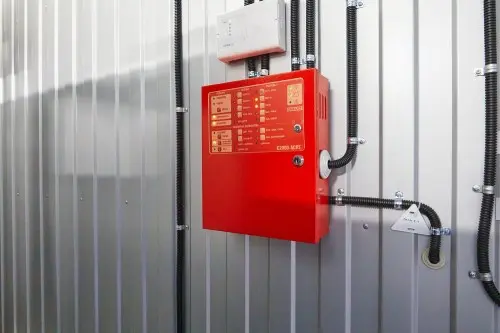

• Fire fighting system;

1.       TE.1600S-T400-2RN diesel genset with a built-in control system;

2.       External fuel tank with a volume of 10 cubic meters, underground installation (double-walled tank RG10) with FePetro STP75 submersible pumps;

3.       Process rack for laying pipelines and cables from the container unit to the underground fuel tank.

4.       200 kW load resistor.
