Delivery of a block container for the placement of a DGS, with packaging of a 720 kW toll DGS
| Client | Energy company |
| Фото |
|
| Task | Delivery of a container for medium-power DGS in accordance with the requested characteristics and configuration, in a short time. |
| Solution | Manufacture of a block container and the preparation of equipment for pickup by the Customer. |

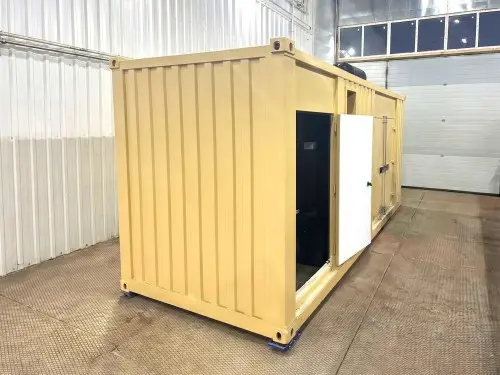

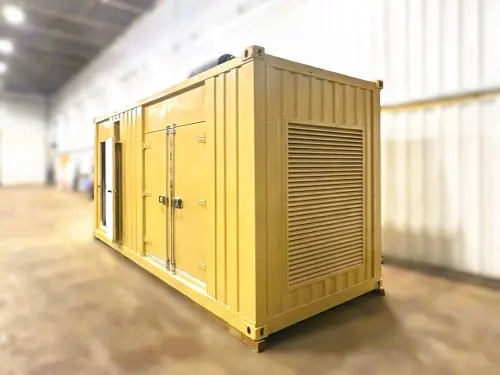

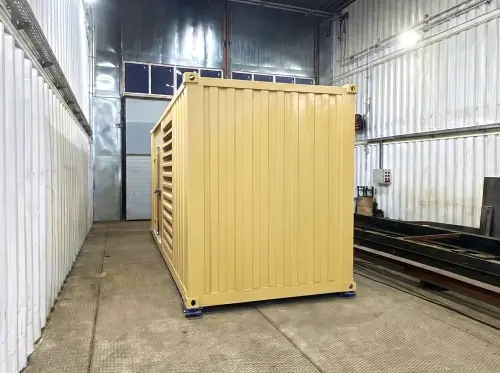

According to the project, the Techexpo company manufactured and prepared for shipment a block container with packing of a 720 kW toll station.
Container Characteristics
Main Features:

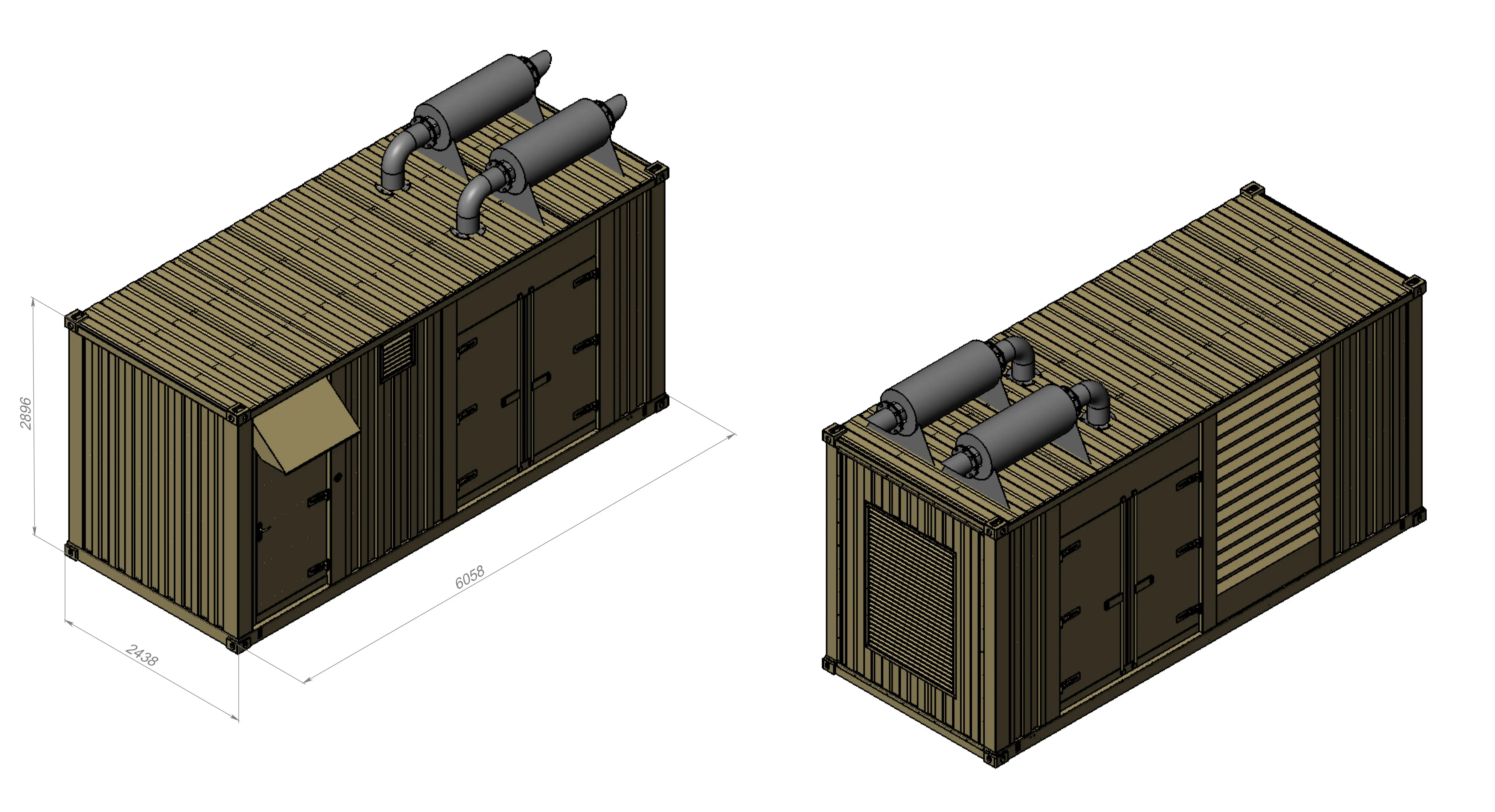

- overall dimensions (LxWxH), mm — 6000 x 2438 x 2896;
- the fire resistance degree of the container is III;
- constructive fire hazard class – C0.

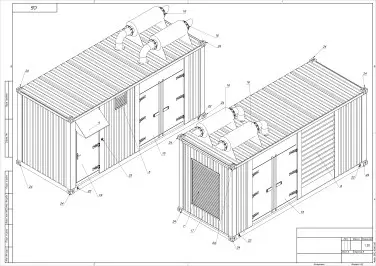

Container design
The container ensures the operation of the equipment installed in it at an air temperature from +40 °C to -40 °C. The container body consists of a welded rigid metal frame made of channels and profiled pipes, sheathed and welded externally with profiled metal sheets with a thickness of at least 1.5 mm. These materials guarantee the durability, safety and transportability of the container during transportation, as well as the protection of the DGS installed in it from precipitation.
Container floor: all-welded, made of corrugated steel of the "Lentil" type with a thickness of at least 4 mm, welded to the metal base of the container and withstands loads in accordance with appendices 1, 2, 3 SS 20259-80; the bottom of the body is welded with a solid steel sheet with a thickness of at least 1.0 mm.
Container walls: the gap between the inner lining and the outer metal sheets is filled with 100 mm thick heat-insulating, non-flammable material.
Container tightness: the floor design prevents fuel from leaking out of the container in case of an emergency spill; special trays with drain holes with sealed plugs on the outside of the container are provided for draining spilled technical liquids from the container.
Fasteners: support structures, fasteners and installation elements, as well as embedded components are provided for fixing the main (DGS) and auxiliary equipment of the power plant.
Container doors: for ease of maintenance and placement of the DGS, the container is equipped with hinged end gates in front of the radiator, hinged doors in the engine service area on both sides of the container; all doors are vandal-proof with an overhead bolt lock, seals, sealing hinges and handles.
Container Systems
- Ventilation

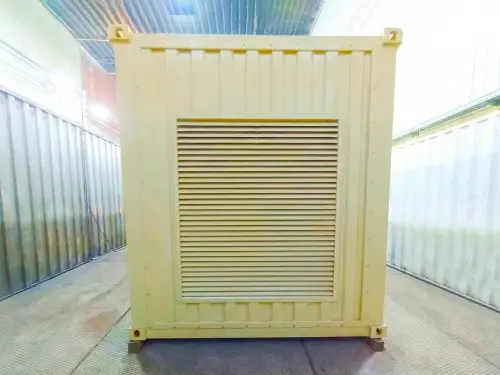

The housing has ventilation openings for air intake and exhaust with vandal-proof louvered grilles and awnings installed in them.

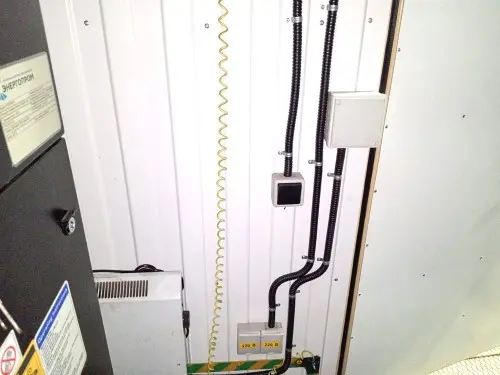

- Communications
— Cable routes are made in metal cable channels.
— A raised floor tray is made for laying power cables.
— To supply consumers with their own needs, the container provides 220 V AC and 24 V DC power grids.
- Noise reduction
Embedded structures are provided for the installation of the silencer on the roof of the container.
- Safety
— The container design ensures the safety of service personnel from electric shock in accordance with regulatory documents.
— The container has an automatic fire extinguishing system, security and fire alarm systems.
- Lighting

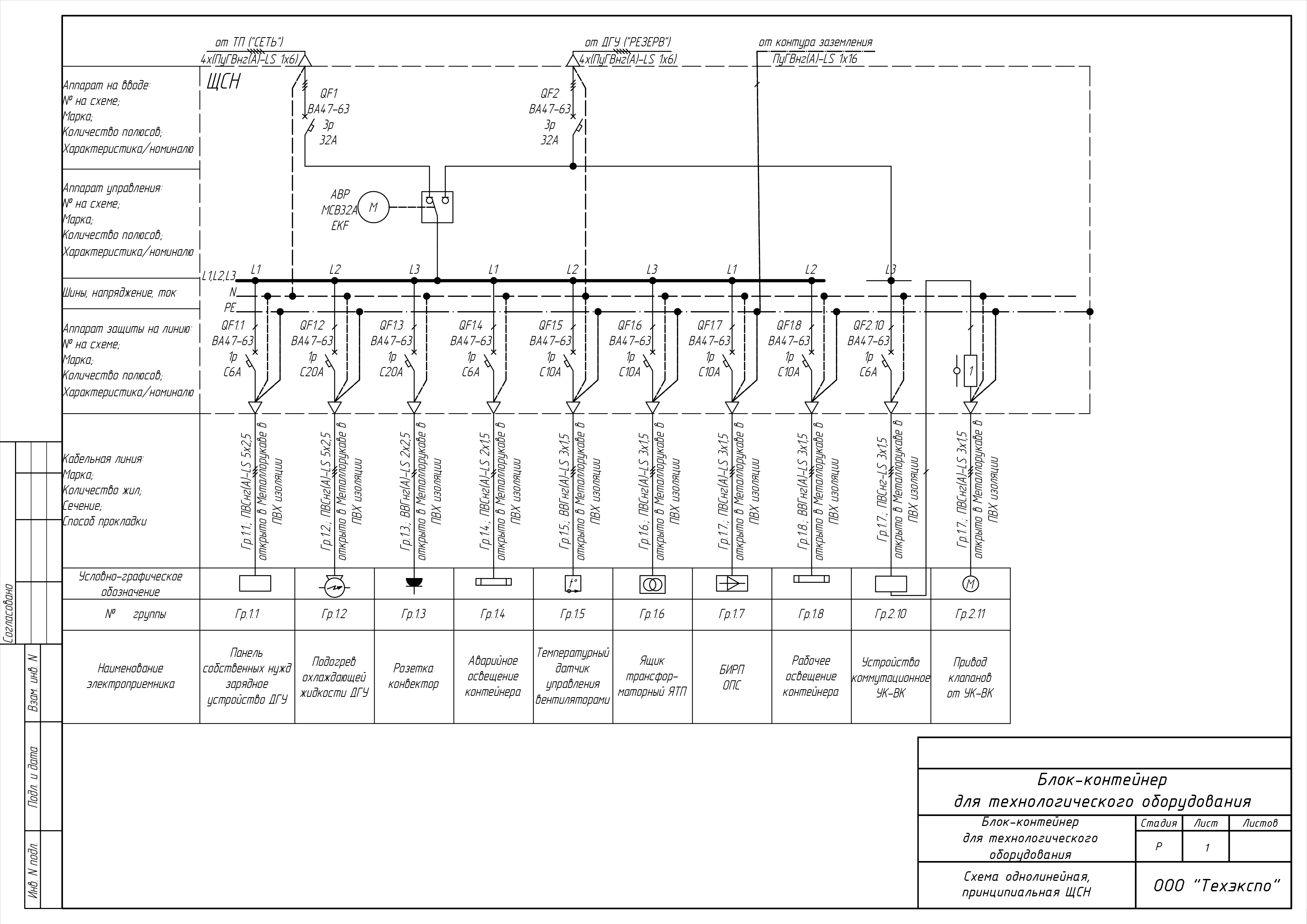

— The electrical lighting of the DGS in the container is provided from two independent sources: the main one — from a single-phase alternating current network with a voltage of ~ 220 V, and the emergency one — from a DC network with a voltage of 24 V (battery).
— The main and emergency lighting fixtures are LED.
Project Features
1. The duplicate emergency stop button of the DGS is located on the outer wall of the container at the entrance door.

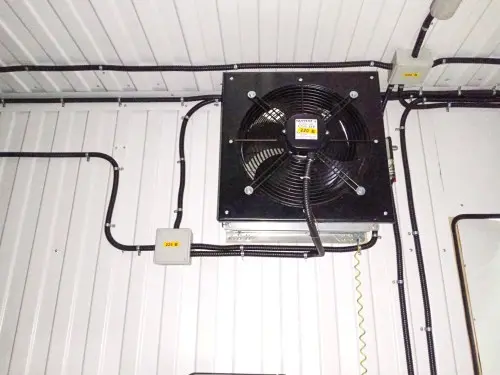

2. Automatic opening is provided/closing the air valves, turning on/off the exhaust fan.
3. When the DSU is in the «Reserve» mode, the container is heated by wall-mounted electric convectors with a built-in thermostat and heat release from the heater of the cooling liquid of the DGS.

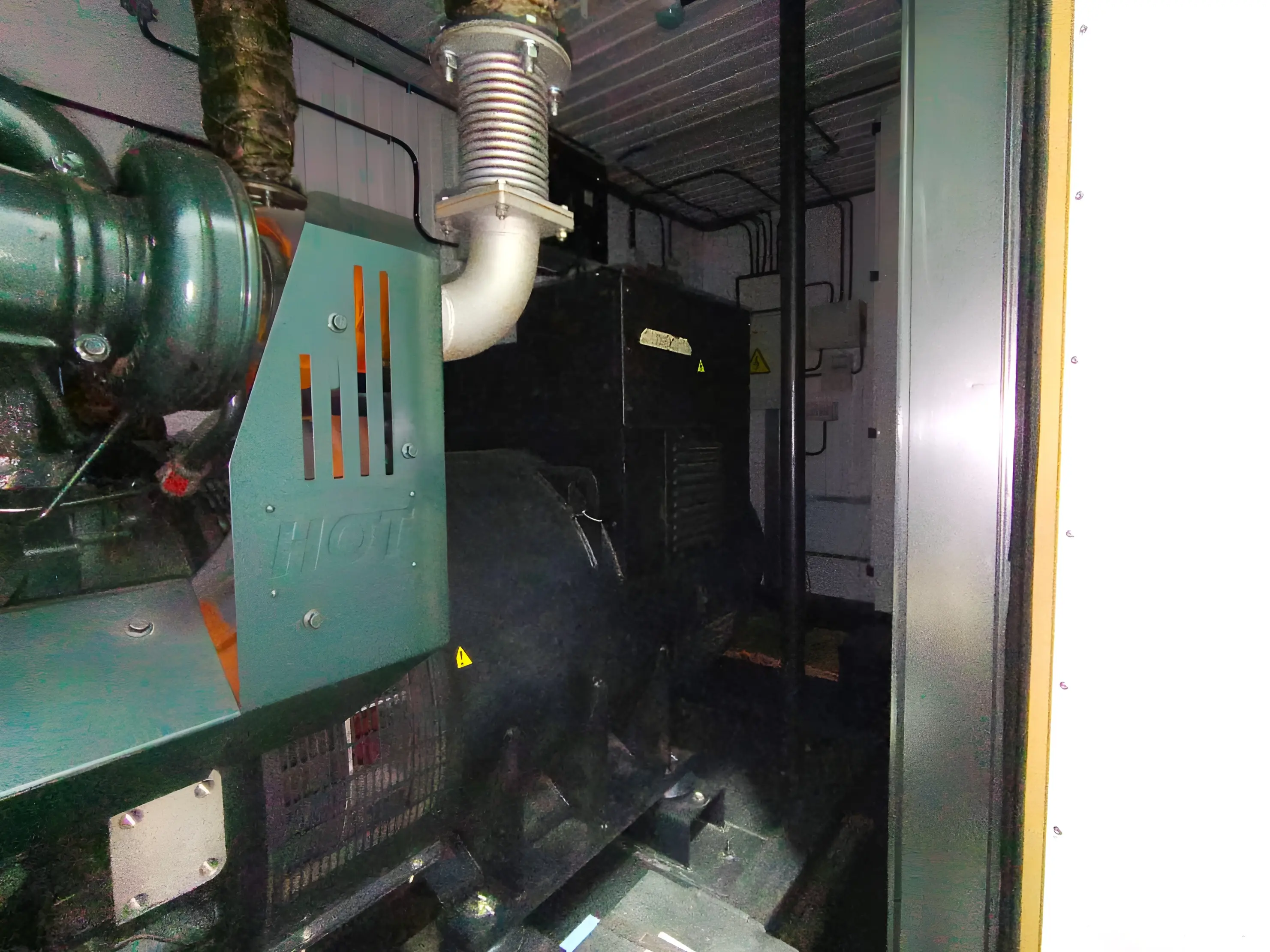

According to this project, the container was supplied complete with toll-free equipment:

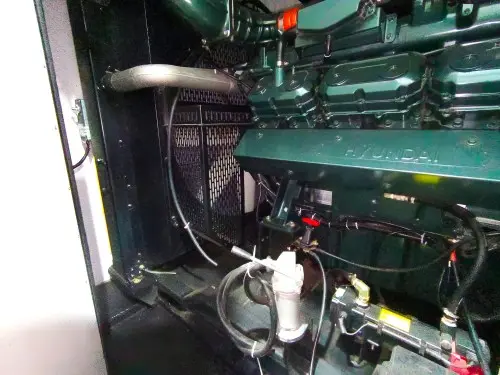

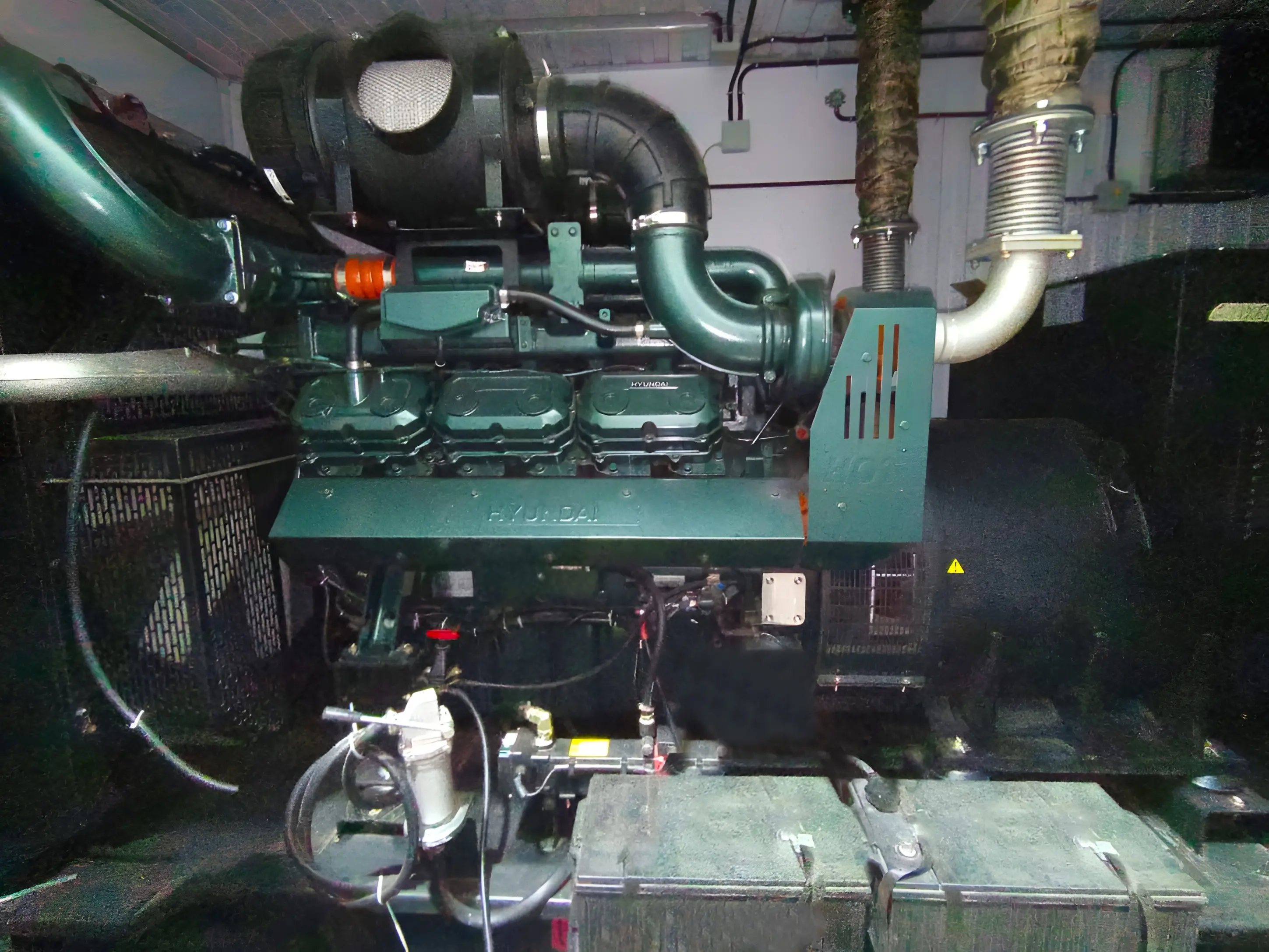

- EPS-720 diesel generator set with dimensions 3630x1680x2200 (LxWxH) mm, weight not more than 5000 kg;

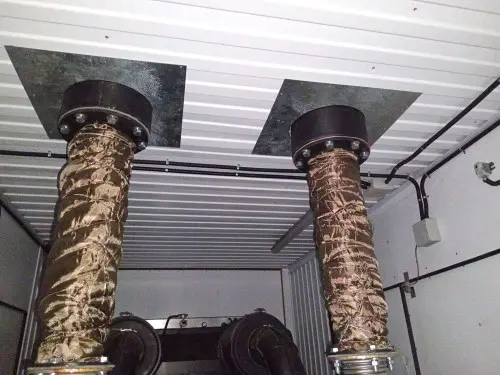

- Industrial mufflers (2 units) with dimensions 1146x420x420 (LxWxH) mm, complete with bellows compensators;

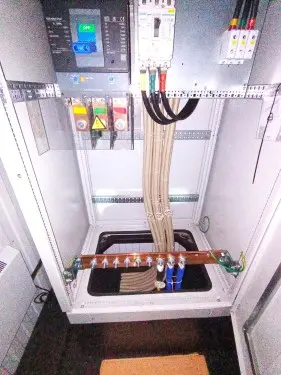

- Power cabinet with Delixi 3P circuit breaker, 1600A;

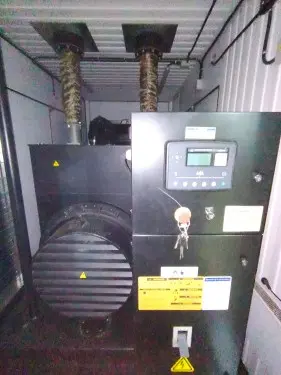

- DGS control cabinet complete with DEEPSEA DSE 7320 control panel;;

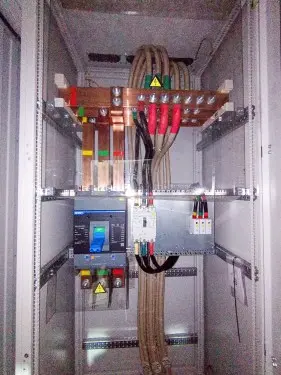

- VRU-DSU cabinet with circuit breakers installed in it;
- Cable for the DGS input and distribution device cabinet 100 m, tips 26 pcs.
Warranty
The warranty period for the supplied equipment is 12 months.
