10 MW gas power supply package based on MTU gas-powered electrical generator (Germany) + price and feasibility study

10 MW gas power supply package consists of 5 GB2028N5 / 16V4000L64FNER gas-powered electrical generators manufactured by MTU Onsite Energy (Germany) in the configuration of IEC Energy KIT. Designed for permanent operation.

Price of the 10 MW gas power supply package – 3 million EURO.

Delivery time - 6 months

Package:

• MTU 16V4000L64FNER
• Electrical capacity, kW: 2028
• Heat capacity, kW: 2055
• Fuel type: natural gas
• Fuel rate at 100% load (8000 kcal/mn³), nm³/h: 502
• Engine speed, rpm: 1500
• Overall dimensions, mm: 5300 х 2000 х 2400.

Gas manifold 200 Mbar

A gas manifold is pre-assembled at the manufacturing plant with the next equipment:

1. Mechanical filter
2. Gas pressure regulator
3. Shut-off valve unit
4. Leak check device
5. Pressure relay
6. Flexible hose for connection with the engine

Engine cooling system unit (IEC thermal module)

The engine cooling system is designed for diverting heat energy from the engine jacket, oil and fuel mixture cooling. The outfeed of heat energy is carried out with the help of cooling radiators.

The engine cooling unit (IEC thermal module) is supplied mounted on a separate frame that is installed next to the engine, it includes the following equipment:

1. Expansion tank of the engine cooling circuit
2. Expansion tank of the engine fuel mixture cooling circuit
3. Shut-off and safety valves, instruments and meters
4. 3-way valve of the mixture cooling circuit
5. 3-way valve of the cooling circuit of the engine jacket circuit
6. Engine cooling pump
7. Pump of the cooling circuit of the 2nd stage of the engine fuel mixture
8. Required compensator valves and flexible hoses
9. Piping of the engine cooling unit
10. Bearing frame of the engine cooling unit

Emergency cooling radiator

The emergency cooling system is designed to dump heat of the engine cooling system and ensure uninterrupted operation of the cogeneration module in modes both with partial heat load and without it at all through the radiator. The radiator is designed for an ambient temperature of 32°C.

The radiator delivery package includes the functionality of smooth change of fan rotor speed, which allows reducing power consumption in variable operating modes and preventing premature failure of the fan motors in the winter, when some of the fans stop, the blades become iced and freeze, which leads to overheating and failure of the motors at the next start. This functionality is provided either by installing a frequency converter, or by using electronically commutated fans (EC) in the radiator.

Exhaust silencer

The exhaust silencer is designed to reduce engine exhaust noise. It is designed for a residual sound pressure level of 65 dB(A) at 10 m (as measuring zone level according to DIN 45635) measured in the exhaust pipe.

6 MW gas power supply package for 277 million rubles (in stock in St. Petersburg)

A power supply package as part of 3 block-modular gas engine gensets to operate on both natural gas and associated petroleum gas. The manufacturer of gas-powered electrical generators is Rolls-Royce Solutions LLC (former MTU Rus LLC). The equipment is manufactured in 2021, has passed factory tests and is ready for shipment from the manufacturing plant in St. Petersburg. The capacity of one gas-powered electrical generator running on natural gas is 1948 kW. The capacity on the associated petroleum gas depends on the composition of the gas. To operate the gas-powered electrical generator on associated gas, it is necessary to use a gas treatment unit - it is included in this package.

Specification for the purchase of a power supply package as part of 3 block-modular gas engine gensets "BKEM Nord-GP-1948/10,5-HL1"

№	Name	Q-ty	Price in RUR VAT included
1	Gas engine genset with a rated output power of 1948 kW, containerized ‘BKEM Nord-GP-1948/10,5-HL1’, voltage 10.5 kV, based on MTU 20V4000 GS  gas-powered electrical generator with 20V4000L32ER engine according to the 3rd degree of automation, modular design, consisting of: gas-powered electrical generator container unit of shipping dimensions 12192x3200x3530, 41 tons; gas-powered electrical generator fuel supply system; gas-powered electrical generator oil supply system; gas-powered electrical generator cooling system; System of preparation of air for gas-powered electrical generator combustion; gas-powered electrical generator start-up system exhaust gas removal system; gas-powered electrical generator automatic control system; fire alarm system and control system for gas contamination of the gas-powered electrical generator container; gas fire extinguishing system of gas-powered electrical generator. single set of spare parts, oil, antifreeze, control cabinet	3	260 000 000
2	Gas treatment unit	1	17 000 000
	TOTAL price with fuel gas treatment unit:		277 000 000

Documents:

• Technical specification

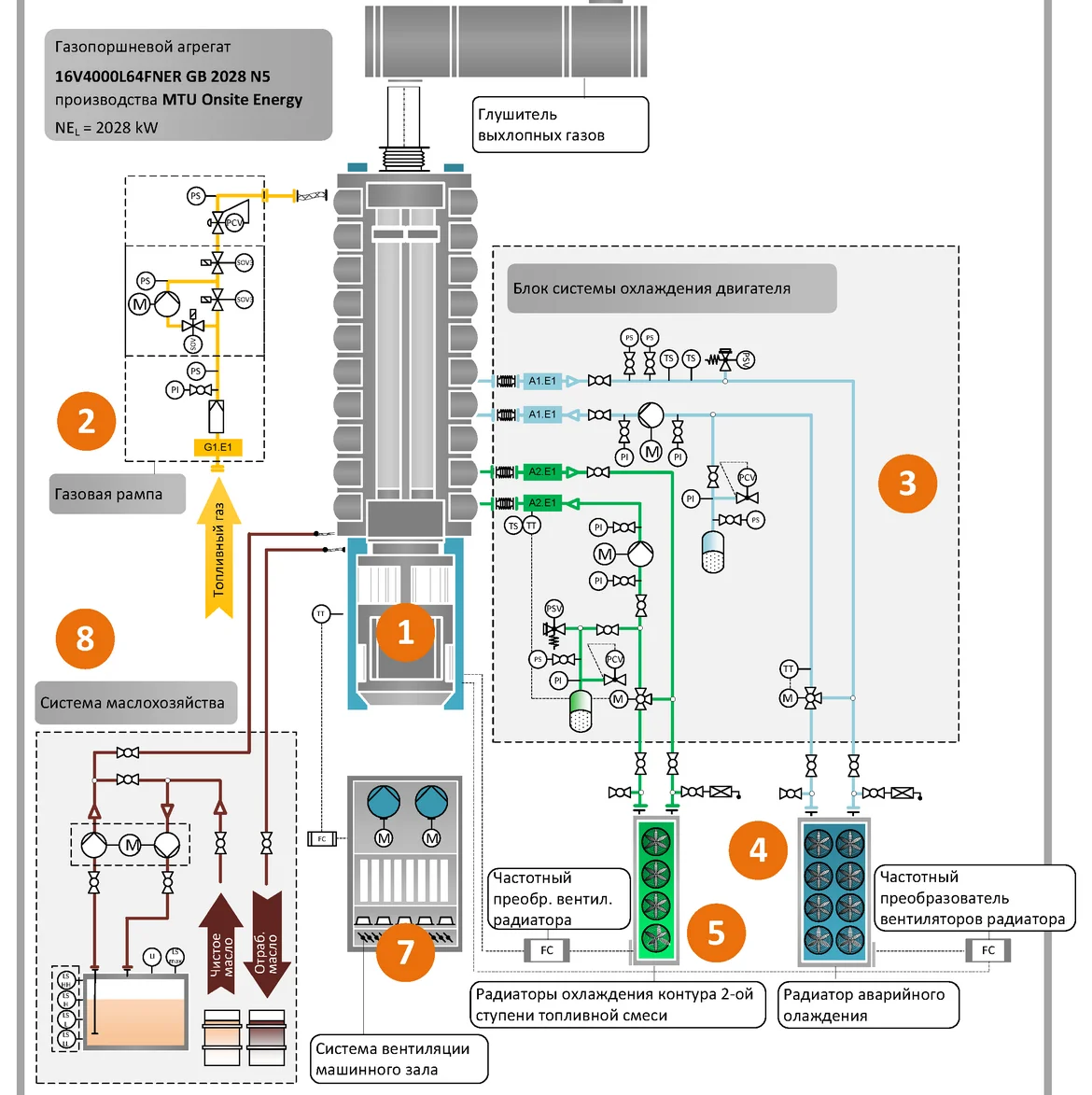

• Diagram

6 MW power supply package photo gallery:

Газовый энергокомплекс 6 МВт – фото 1 из 16

Газовый энергокомплекс 6 МВт – фото 2 из 16

Газовый энергокомплекс 6 МВт – фото 3 из 16

Газовый энергокомплекс 6 МВт – фото 4 из 16

Газовый энергокомплекс 6 МВт – фото 5 из 16

Газовый энергокомплекс 6 МВт – фото 6 из 16

Газовый энергокомплекс 6 МВт – фото 7 из 16

Газовый энергокомплекс 6 МВт – фото 8 из 16

Газовый энергокомплекс 6 МВт – фото 9 из 16

Газовый энергокомплекс 6 МВт – фото 10 из 16

Газовый энергокомплекс 6 МВт – фото 11 из 16

Газовый энергокомплекс 6 МВт – фото 12 из 16

Газовый энергокомплекс 6 МВт – фото 13 из 16

Газовый энергокомплекс 6 МВт – фото 14 из 16

Газовый энергокомплекс 6 МВт – фото 15 из 16

Газовый энергокомплекс 6 МВт – фото 16 из 16

Diesel generators with a power from 3 to 50 MW (megawatt) Know more

Feasibility study for introducing a 10 MW gas power supply package

Design conditions:

Basic specifications:

Calculation of production costs 1 kW·h of electrical power, rubles /kW·h

Economic indicators of power center

Return on investment – payback period

Diesel gensets with a power from 3 to 50 MW (megawatt)

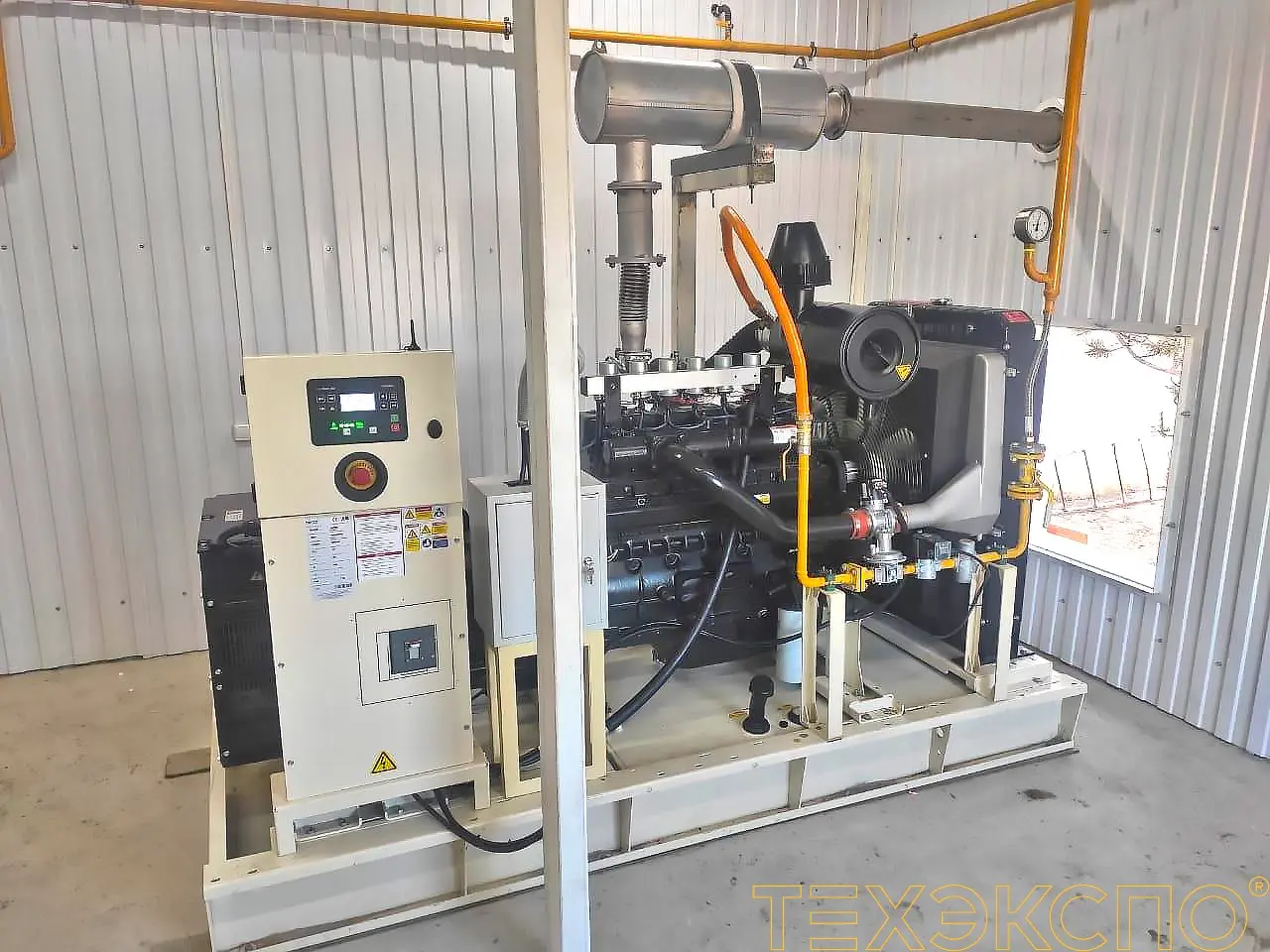

Manufacturing 100 - 1000 kW Doosan and Baudouin engine-based gas engine gensets

Techexpo LLC in cooperation with a partner factory delivers Doosan and Baudouin-based gas engine gensets with power from 100 to 1000 kW.

The price for these gas engine gensets is the lowest on the market because the gensets are manufactured under a specific technology based on a diesel reciprocating internal combustion engine running on natural or another combustion gas.

It is possible to get two types of energy – heat and electricity. A heat recovery system is optionally placed in a gas engine genset (cogeneration) or trigeneration allowing it to gain cold (relevant for ventilation, warehouse refrigeration, industrial cooling).

View prices for gas engine gensets Know more

Engine control system

Every unit of MTU Onsite Energy is completed with a control system. The control system provides supplying power, controlling and collecting information from engine equipment, generator and all auxiliary equipment supplied unassembled as complete units with the genset.

The 4000 series control system consists of an MMC control cabinet (MTU Module Control) and MIP (interface panel). The MMC control cabinet is supplied separately and usually installed outside the machinery room. The MIP cabinet mounted on the frame of the units forms a functional assembly.

Mineral oil facilities system

The system is designed to store the consumption volume of clean oil, automatic replenishment of engine crankcases, oil change in crankcases.

The system consists of the following equipment:

• Clean oil tank with a capacity of 2000 liters
• Electric pump for filling / draining / feeding oil
• Redundant hand pump for filling / draining / feeding oil
• Clean oil container level detector
• A set of necessary shut-off valves
• Bearing frame of the oil facilities system
• Piping of the oil facilities system
• Control cabinet for oil facilities system

Ventilation system of engine machinery room

Ventilation system is designed for working at outdoor temperatures in the range from -25°C to +30°C. Noise level at a distance of 1 m from the engine room considering the operation of the ventilation system 65-75 dB(A).

The air intake system is supplied as a pre-assembled unit and consists of:

1. Metal louvers
2. Air filter
3. Silencer
4. Electric motor
5. Blower fan
6. Fan motor frequency converter
7. Design parameters of the air intake system:
8. Capacity (under normal conditions) - not less than 76,000 nm³/h
9. Fan head at the operating point - at least 100 kPa
10. The air exhaust system consists of:
11. Silencer
12. Metal blinds
13. Design parameters of the air exhaust system:
14. Capacity (under normal conditions) - not less than 68,000 nm³ / h Power supply and control of the ventilation system

GENERATOR OPERATING MODES:

Generator operation is possible only if the mains switch is permanently closed (at least one of the inputs of the external power system network). In the event of an accident in the network / frequency voltage drop, an emergency shutdown occurs.

The next functions are included:

• Generator operation in parallel with the electric power system networks;
• Automatic disconnection of the generator from the power system network in case of deviation of the parameters of frequency, voltage with graduations on the generator switch.

Generator operation is possible only if the mains switch (-es) is permanently open or lack of power system mains at the site. Accordingly, mains failures/voltage or frequency drops do not affect the operation of the generator. The generator is the only source of power supply for the facility. When operating in standalone (island) mode, it is recommended to have standby equipment. The number and capacity of backup units are determined based on the requirements for the reliability of power supply to consumers of the facility. When several units are used together on the same bus section, the station control panel (MCS) is required in the scope of supply, which is offered if there are no power system networks at the facility. Accordingly, mains failures/voltage or frequency drops do not affect the operation of the generator. The generator is the only source of power supply for the facility. When operating in standalone (island) mode, it is recommended to have standby equipment. The number and capacity of backup facilities are determined based on the requirements for the reliability of power supply to consumers of the facility. When multiple units are used together on the same bus section, the Station Control Panel (MCS), which is supplied OPTIONALLY, is required in the scope of delivery.

The next functions are included:

• Generator operation in island operation with no connection to the electric power system;

• The blackstart function – starting generators from batteries if there is no bus voltage.

3. Combined

In this mode, the "parallel" mode of operation (with a permanently closed mains switch) is taken as the basic one. In the event of a mains failure/voltage or frequency drop, the mains switch trips. At the same time, the generator keeps operating, the control system transfers it to the “island” mode. The "island" mode operation is performed until the network is restored on the mains switch. When the stable mains voltage is restored, the control system automatically synchronizes the generator together with the connected consumers with the power system network at the mains switch. Then the generator continues operation in the "parallel" mode of operation.

The next functions are included:

1. Generator operation in parallel with the electric power system networks;
2. The blackstart function – generator startup from batteries when there is no bus voltage;
3. Import/export control - organization of continuous measurement of the actual electrical load on the circuit breakers (CB) with subsequent automatic/manual adjustment of the electrical power of the generator in line with the actual consumption of electricity. With auto-adjustment, after the generator is switched on, the control system continuously measures the generated power and the load consumed by the connected consumers. They are compared in real-time and, if necessary, automatic adjustment of the power of the generator/generators to achieve zero (or set by the operator) balance on the communication line with the power system;
4. Automatic disconnection of the generator from the network of the power system in case of deviation of the parameters of frequency, voltage with the shift to the "island mode of operation" to the allocated load of consumers, subject to a positive value of the "export" of electricity, with graduations on the corresponding switch breaker SB1 (or SB2).
5. Operation of the generator in island mode without connection to the network of the power system;
6. Subsequent automatic synchronization of the generator with consumers on the switch breaker SB1 (or SB2) with the power system network, after restoring normal network parameters at the corresponding input.
7. Automatic switching on by the control system of the switch breaker SB1 (or SB2), in case of an emergency shutdown of the generator, when operating in the "island mode", after opening both generator switches.

Diesel gensets with power from 3 to 50 MW (megawatt)

Heat recovery system from a gas-powered electrical generator

For MTU 16V4000L64FNER gas-powered electrical generator a heat recovery system provides the next advantages:

• Increasing the overall efficiency up to 89.1%
• "Free" 2055 kW of heat energy (at 100% generator load)
• Independence from heat suppliers

In the MTU 16V4000L64FNER gas-powered electrical generator, the heat energy of the following flows can be usefully used:

1. The thermal power of the engine cooling system is 1060 kW, including the heat power:

• Oil cooling,
• Water cooling of the motor jacket
• 1st stage fuel mixture cooling

2. The thermal power of the exhaust gas flow when cooled down to (120 °C) is 995 kW The total useful thermal power of the MTU 16V4000L64FNER is 2055 kW.

COGENERATION - a joint production of electricity and heat

Depending on the heat recovery system used, the useful heat power of the gas-powered electrical generator can be converted:

1. Hot water recovery system - 2055 kW of hot water with a temperature curve of 70/80... 100ᴼС
2. Steam recovery system - in 1060 kW of hot water with a temperature curve of 70/80... 85ᴼС and 995 kW of saturated or superheated steam, pressure 6...32 bar

TRIGENERATION – a joint production of electricity, heat, and cold

The ‘Trigeneration’ solution is interesting for clients with a need for a cooling load in the form of cold water with a temperature of +1 ... +15ᴼС. The proposed solution is based on the use of absorption lithium bromide refrigeration machines, which convert thermal energy into cold energy in the form of cold water with a temperature of +1 ... +15ᴼС.
