650 kW Doosan diesel genset for Gelendzhik Arena entertainment complex

In September 2022, Techexpo company delivered a 653 kW containerized DG for a large cultural and entertainment complex called Gelendzhik Arena and carried out a range of commissioning works.

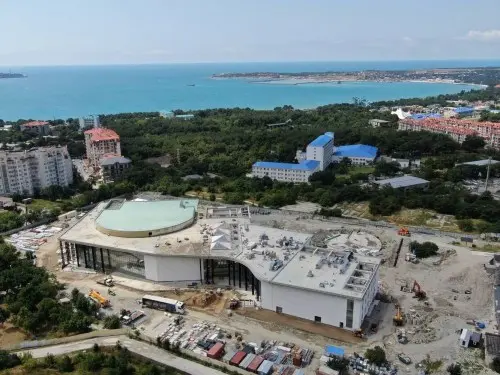

Under-construction Gelendzhik Arena is a 5-story cultural, business and entertainment complex with an area of over 14 000 sq. m., an admission capacity – over 2500 visitors. The opening of the complex is planned for 2023 in Gelendzhik.

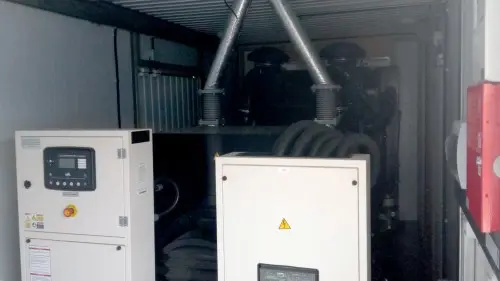

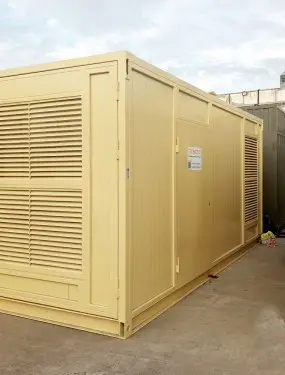

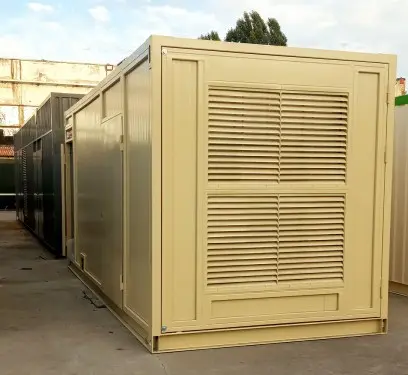

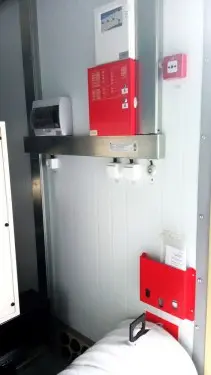

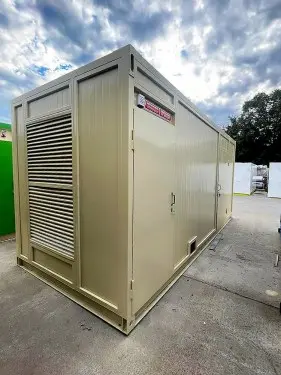

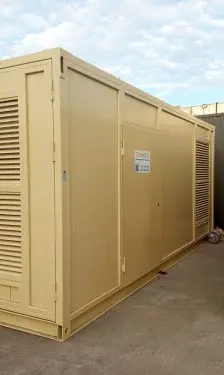

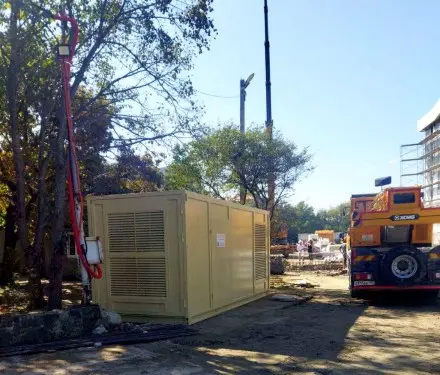

The DG is housed in an all-welded container of 6000х2400х2600 mm. Auxiliaries board, convectors, automatic supply and exhaust ventilation system, gas exhaust system, fire alarm and automatic fire suppression system, as well as the routine and emergency lighting system are placed inside the container.

DG characteristics:

• Power: 653 kW

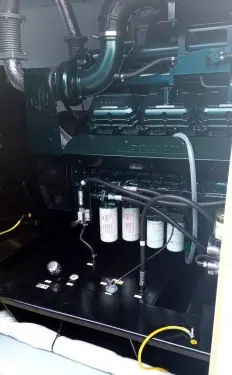

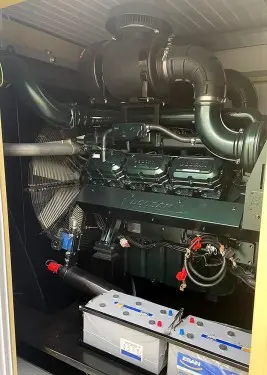

• Diesel engine: Doosan DP222CB
• Generator: Crompton Greaves G1R400MA

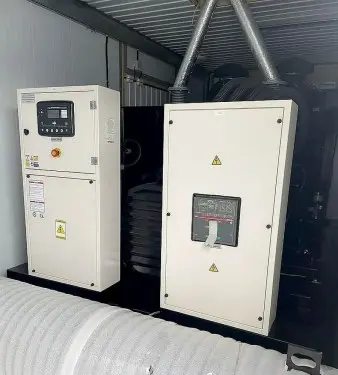

• Microprocessor controller-based control panel
• Built-in fuel tank: 1135 l.
• Low-noise silencer
• Generator circuit breaker

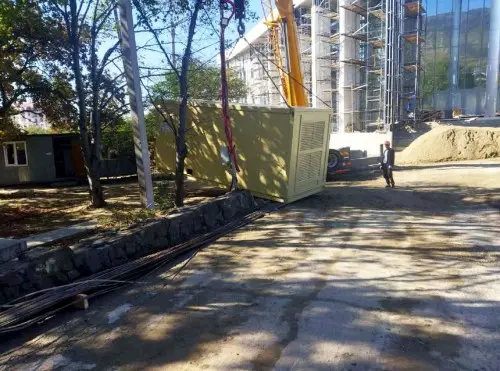

When the DG was delivered to the site, the technical specialists of Techexpo carried out a range of pre-commissioning activities. The DG operation under load and the quality of the generated power were tested. A briefing was provided for the diesel genset maintenance staff.
