280 kW Cummins containerized diesel generator for the research institute of chemical technology (‘Rosatom’)
| Total capacity | 280 kW |
| Client | The leading research institute of chemical technology Joint-Stock Company |
| Фото |
|
| Solution |

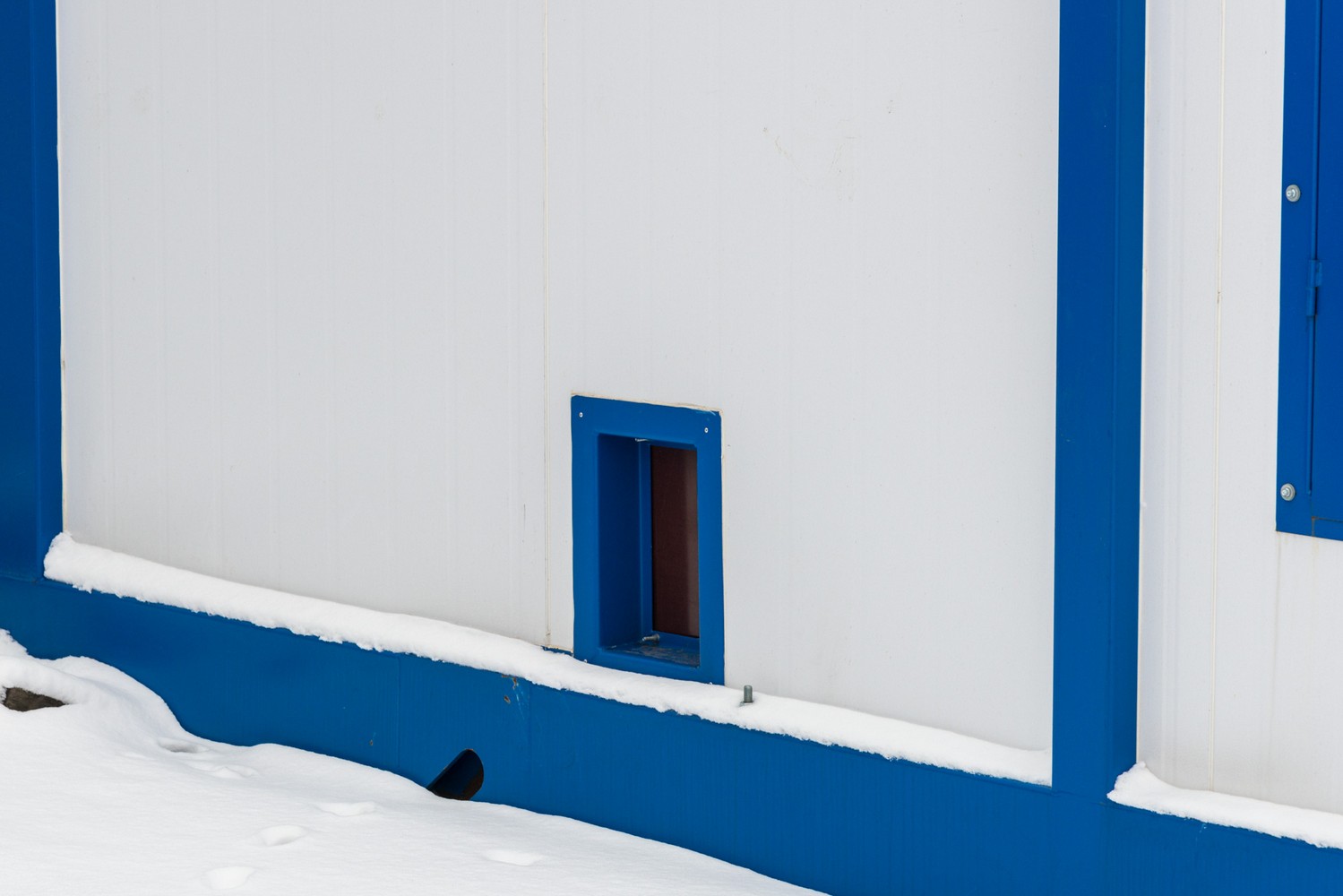

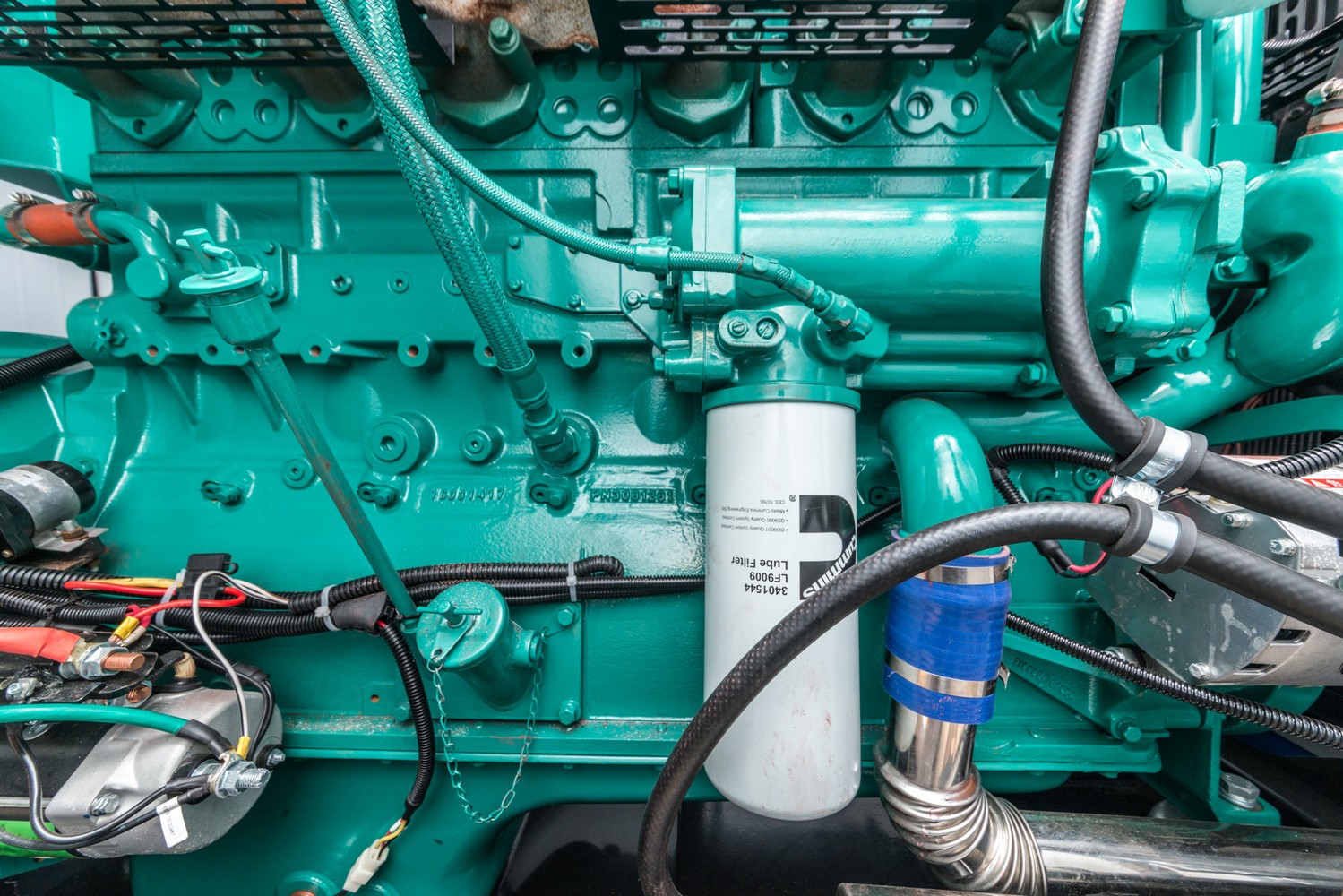

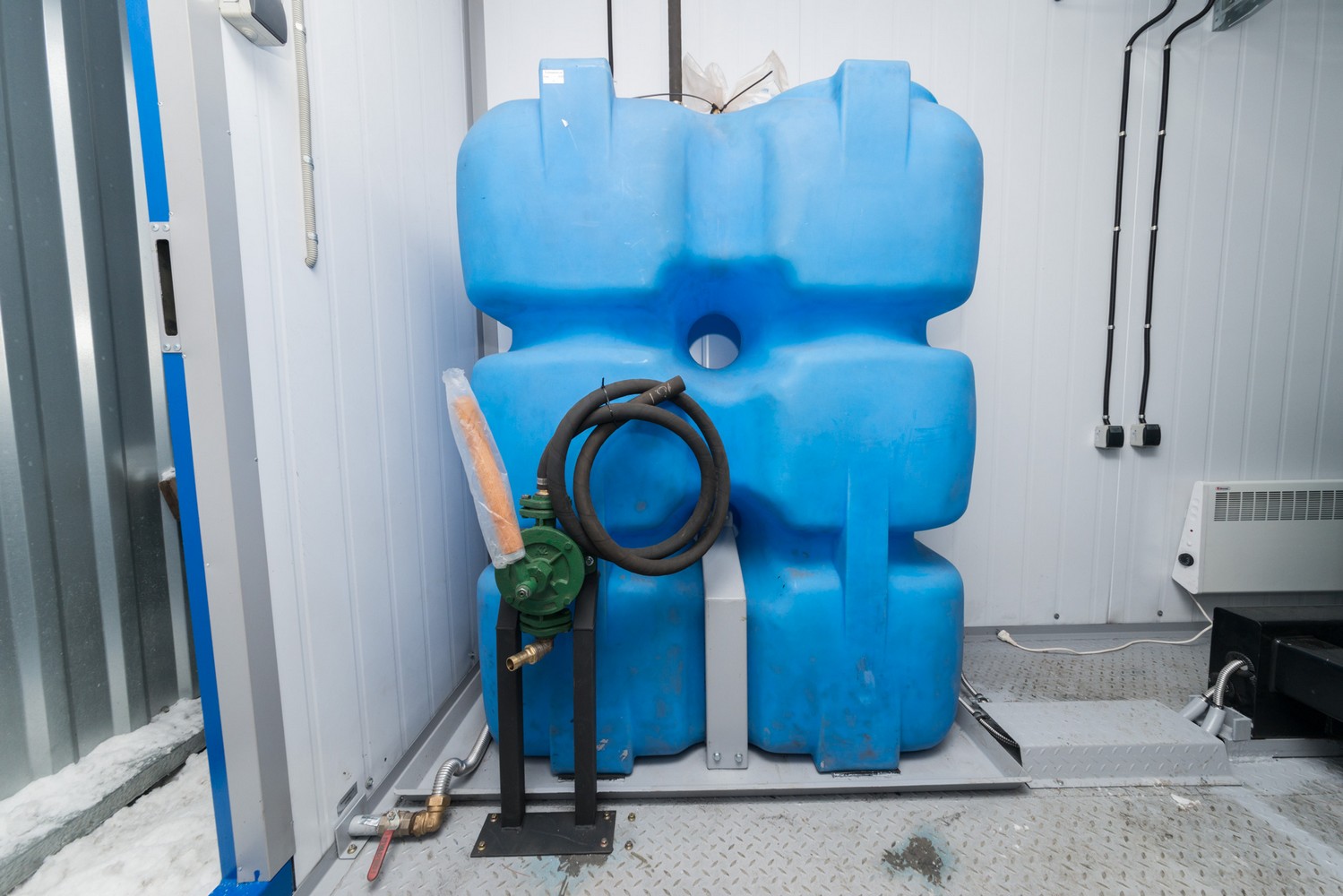

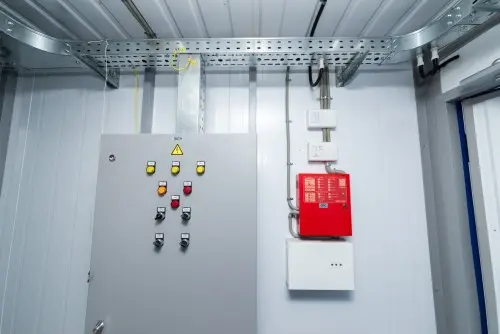

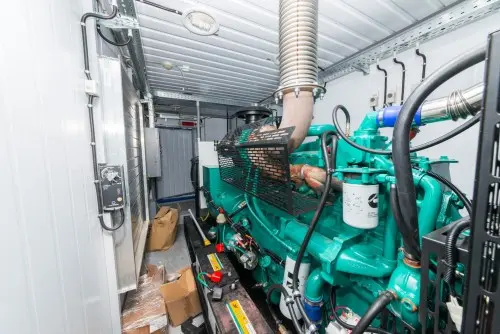

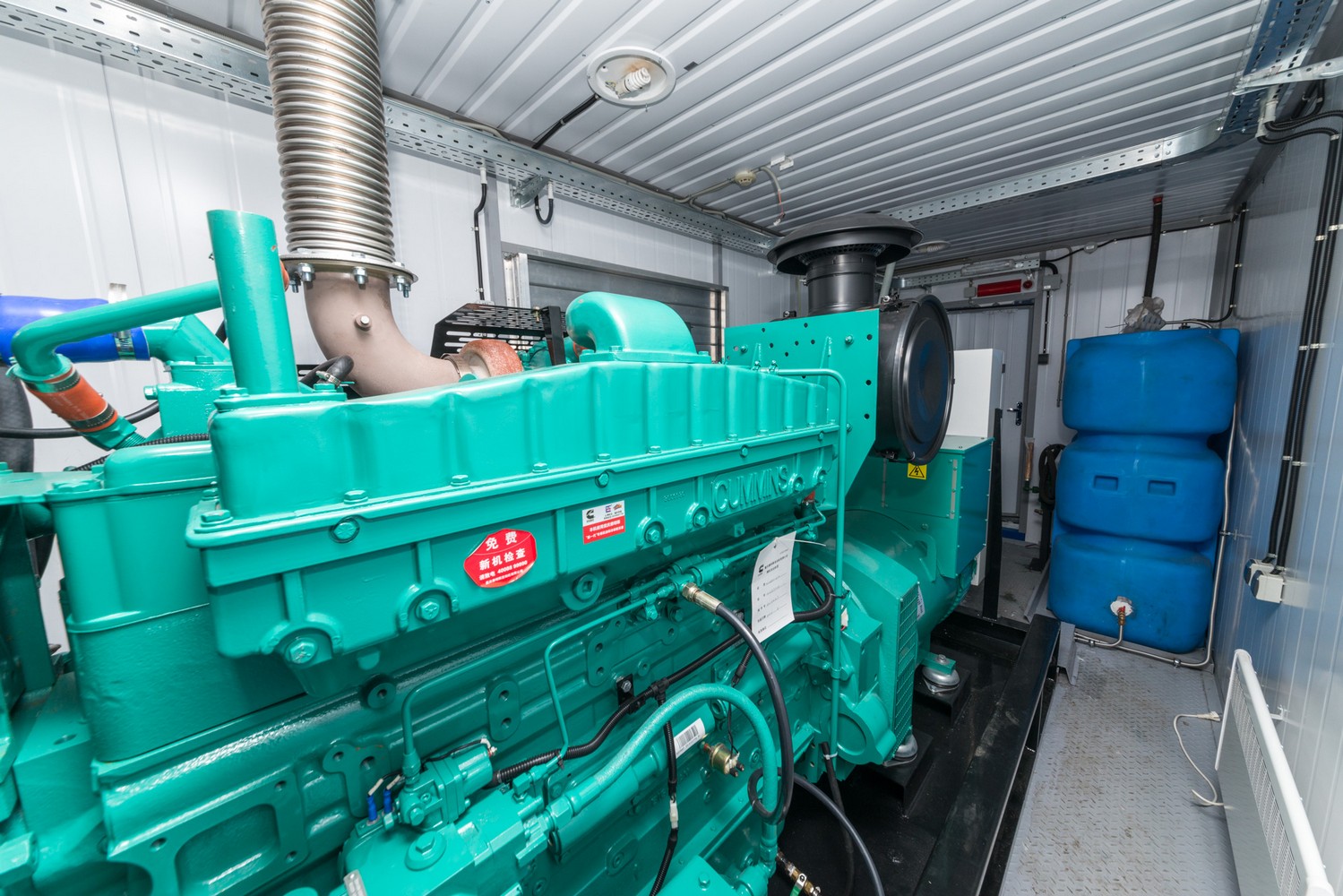

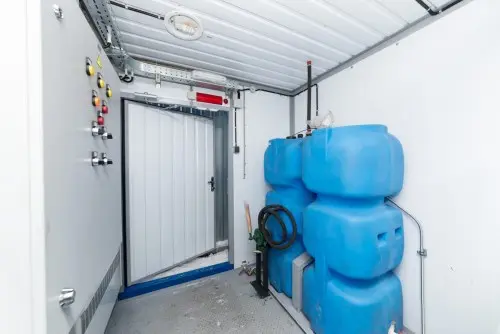

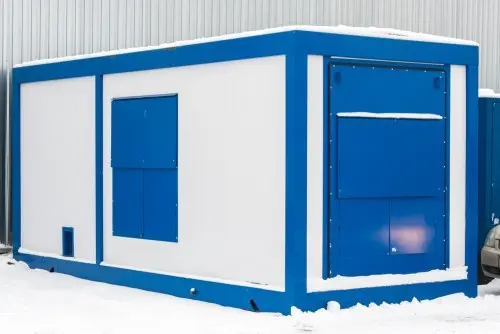

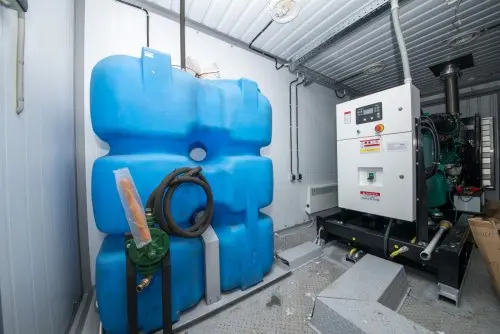

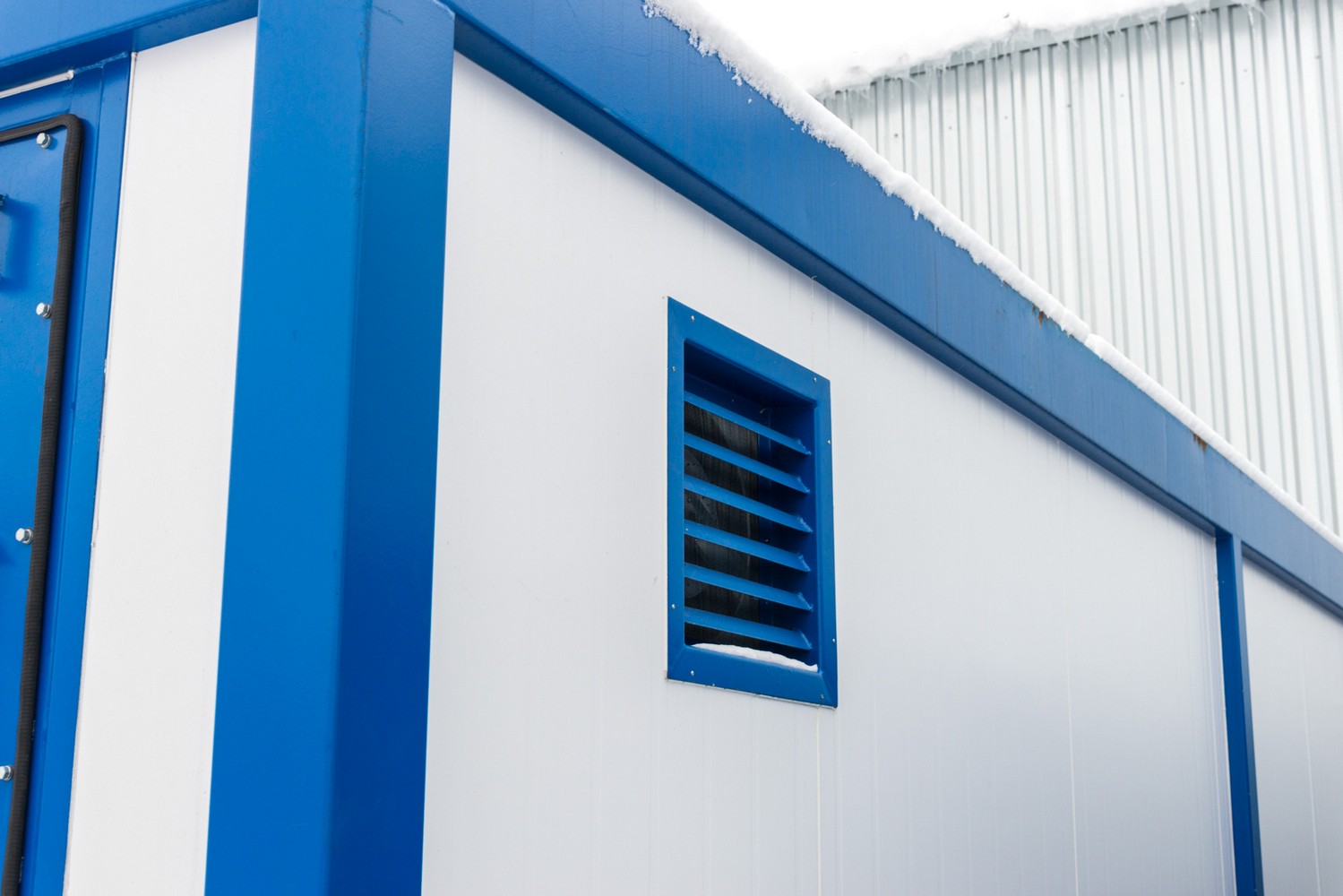

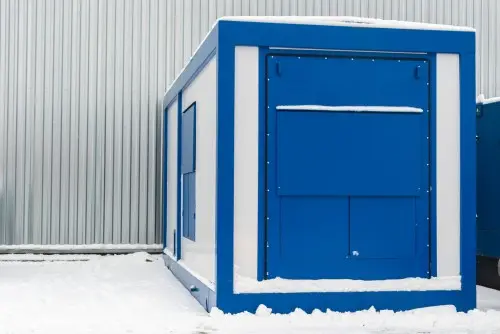

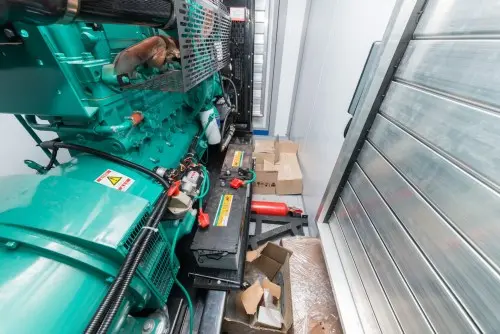

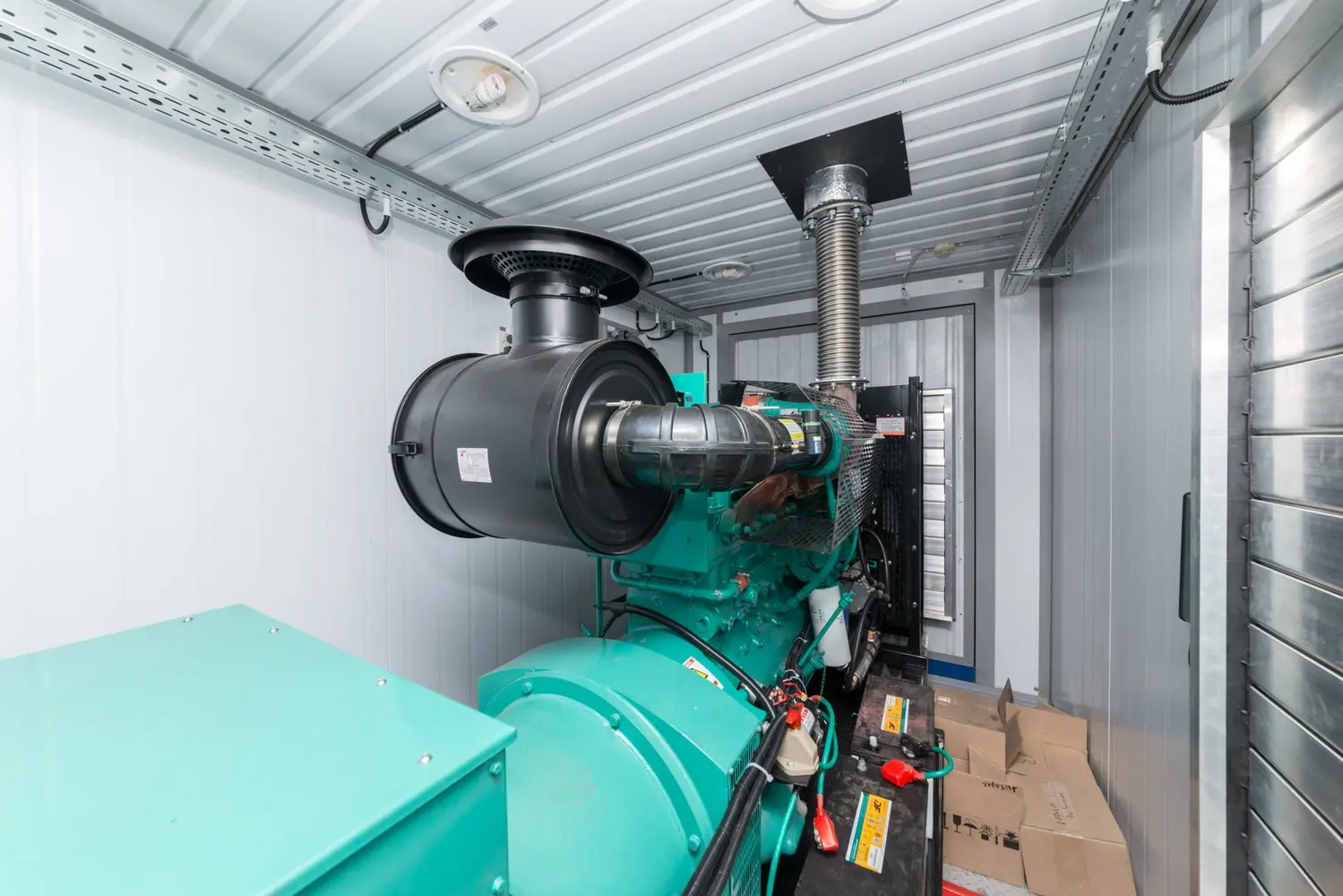

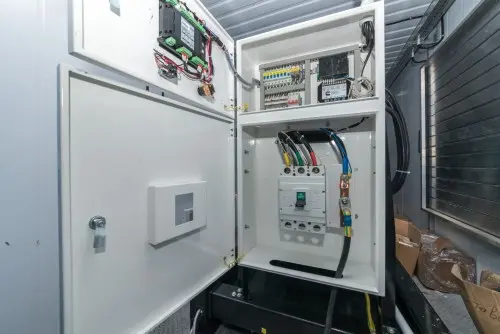

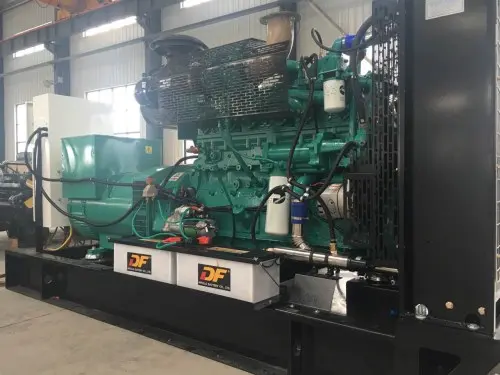

In September 2017, Techexpo company delivered a 280 kW diesel generator with a 2nd degree of automation for the leading research institute of chemical technology of Rosatom State Corporation for chemical technologies, which is located in Moscow. The diesel generator set with an ATS is manufactured based on a Cummins (China-USA) NTA855G2A diesel engine. This is a 4-stroke turbocharged engine for 14 liters. The institute will use the genset as the main standby power supply. The container body for the genset is made from rolled steel and ensures the strength and stiffness of the structure. Container dimensions: 6000*2450*2800 mm. The diesel generator receives fuel from the main tank (430 l) and a 990-liter backup fuel tank, which is additionally placed into the container. The replenishment of the backup tank is carried out through a filling port brought to the side wall of the container. The container is equipped with a ventilation and heating system to meet the temperature conditions of the generator and fire safety requirements. Two carbon dioxide extinguishers OU-3 are placed inside the container and an automatic aerosol fire extinguishing unit with an S2000-ASPT fire control and control device. An automatic security alarm unit with an S2000-4 fire alarm control panel with magnetic contact sensors installed on the entrance door provides the security protection of the DG. An auxiliaries board is installed inside the container. All supplied equipment is certified in the Russian Federation subject to the regulations of the Russian Federation. |
Order the budget estimation for a similar project - make a request to order+35836@tech-expo.ru
We’ll send an engineer to your site for free pre-project inspection, select equipment, develop the budget.
