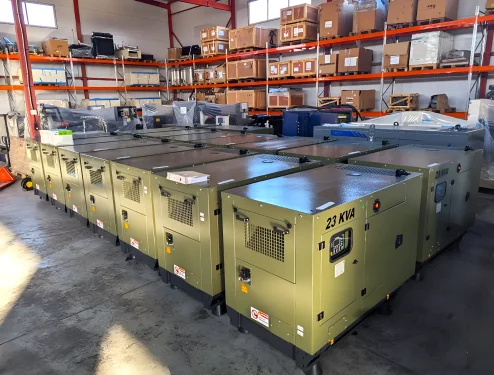

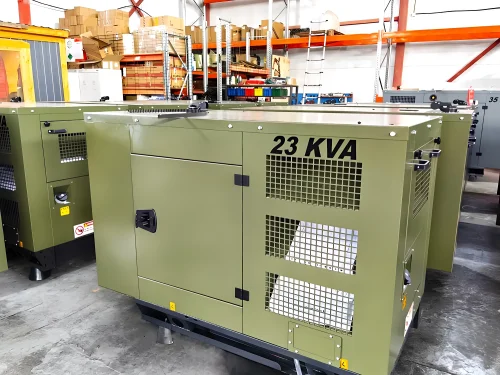

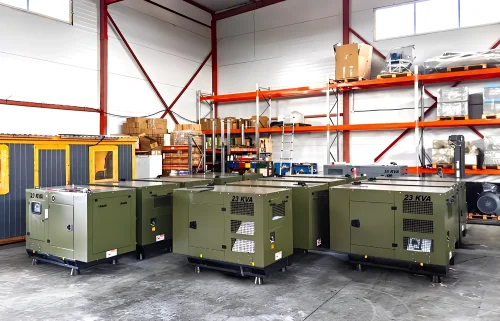

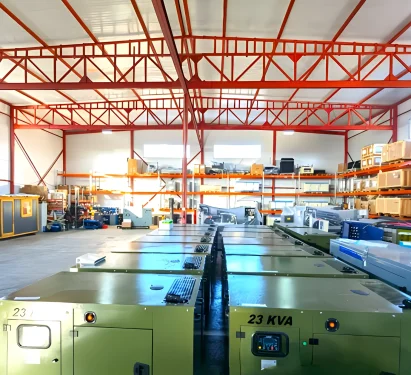

Supply of 16 diesel generator sets 16kW each for a manufacturing company (Universal Aero)

Total capacity 256 kW
Client Universal-Aero CJSC
Фото
Task To ensure the prompt delivery of a large number of low-power diesel generator sets to the customer's facility for backup power supply of production.
Solution 16 diesel generator sets in a casing (silent) of 16 kW each within 1 month from the date of receipt of the order.

Our permanent partner and customer, Universal Aero CJSC, has its own production base and specializes in the development, production, testing and repair of aviation equipment. The uniqueness of this order is that the company needed to obtain a large number of standard power equipment in a very short time.

An important wish of the customer during the implementation of this project was to ensure a moderate noise level of operating generator sets. The design of the generator sets TE.16C-T400-1RP in the casing made it possible to solve this problem. The compactness of the stations is also one of the main technical features of this delivery.

It should be noted that the project was implemented ahead of schedule for 16 working days and in compliance with all the wishes of the customer.

Complete set of diesel generator set TE.16S-T400-1PP:

  • Engine with attachments

  • Power generator

  • Fuel tank in the frame

  • Noise protection casing (color RAL 6003)

  • Control panel based on the Datakom 500 controller

  • Automatic generator protection

  • Electric coolant heater 220 V

  • 220V Battery Charger



Technical characteristics of the TE.16C-T400-1PP diesel generator set:

  • Mitsubishi S4Q2-61SD engine

  • Number of phases – 3

  • Type of current – alternating

  • Rated voltage – 400 V

  • The nominal frequency – 50 Hz

  • Noise level – 69 Db

  • Engine crankshaft rotation speed – 1500 rpm

  • Built–in fuel tank – 60 liters

  • Fuel consumption at 70% load – 4.1 l/h.

  • The starting method – an electric starter

  • Generator – Leroy Somer TAL042

  • Overall dimensions – 1750x9501420 mm

  • Weight – 750 kg

  • The cooling system – liquid

  • Type – silent (in a casing)

Order the budget estimation for a similar project - make a request to

We’ll send an engineer to your site for free pre-project inspection, select equipment, develop the budget.
