Mobile 800 kW diesel genset Cummins with a 3000-liter fuel tank to Norilsk for processing non-ferrous scrap

Total capacity 808 kW
Client Nordinvens LLC
Фото
Solution

In July 2022, Techexpo company delivered an 808 kW TE.800P-T400-2RN mobile containerized diesel generator set with Cummins engine to Norilsk for Nordinvens LLC. This is a large company engaged in the processing of metal waste and scrap of non-ferrous metals in the region. The diesel genset will be used as a temporary power supply source.

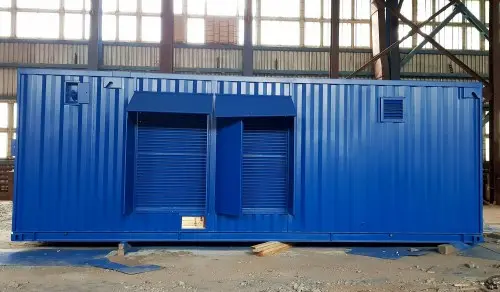

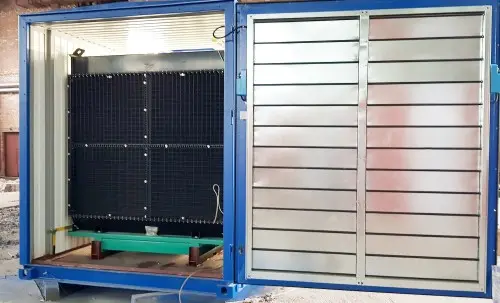

An 8000х2500х2900 mm heat-insulated all-welded container of the DG consists of assembly and fuel compartments.

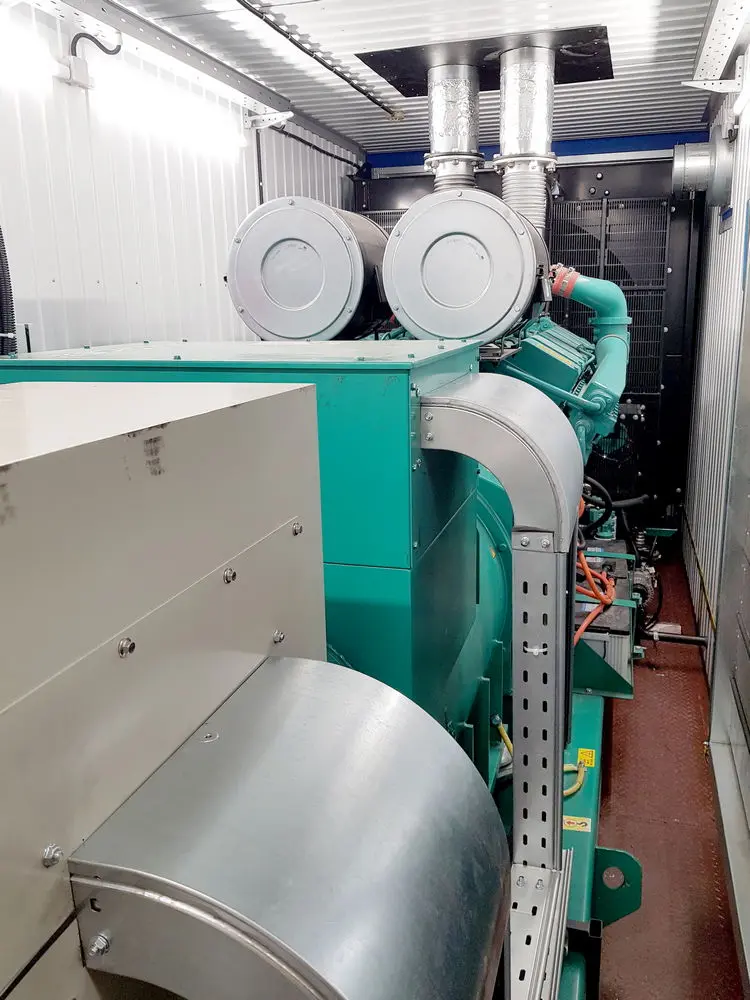

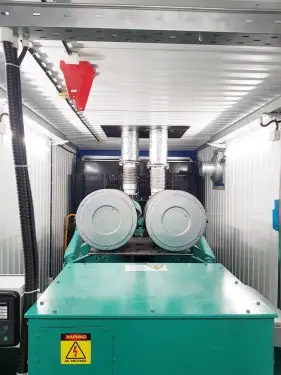

The assembly compartment houses the power equipment of the genset:

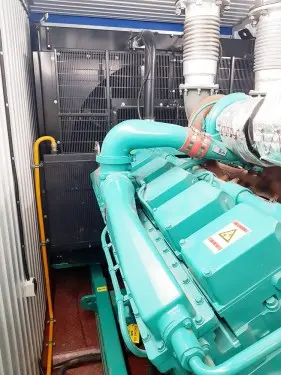

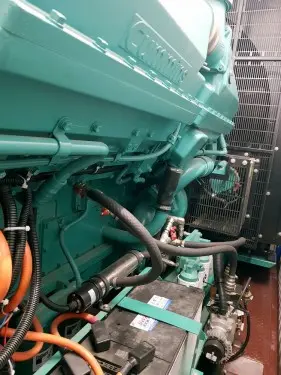

  • Cummins KTA38 G5 diesel engine
  • Stamford HCI634J current generator

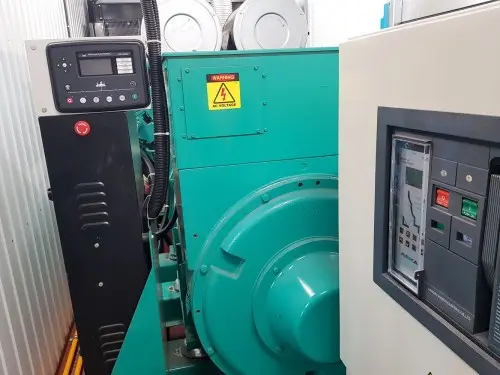

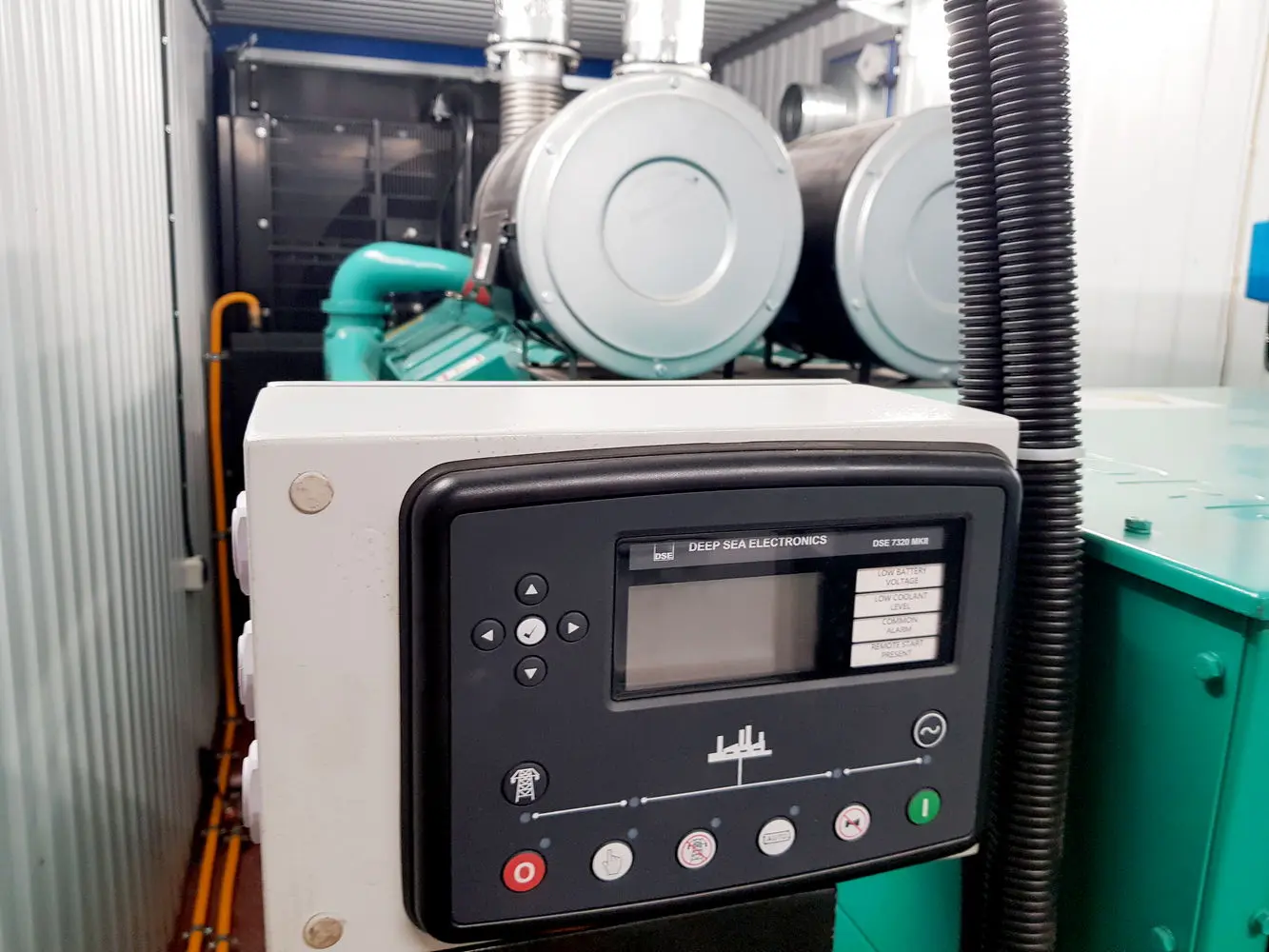

  • DSE 7320MK2 DG control panel (controller)
  • Electrical coolant preheater

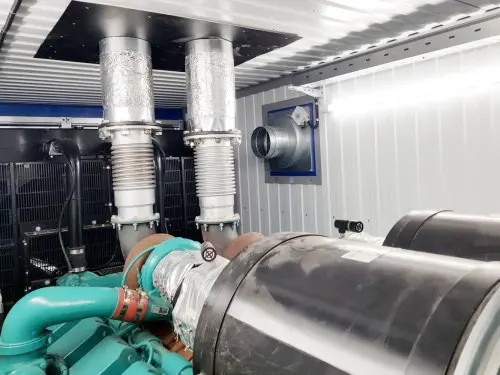

  • Bellows expansion joint of the gas exhaust pipeline
  • Industrial silencer
  • Generator circuit breaker
  • Autonomous preheater

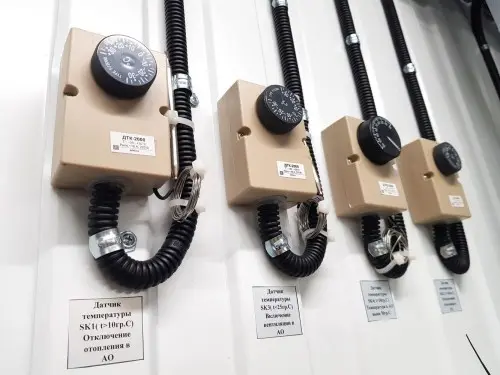

  • Ventilation, heating and lighting systems

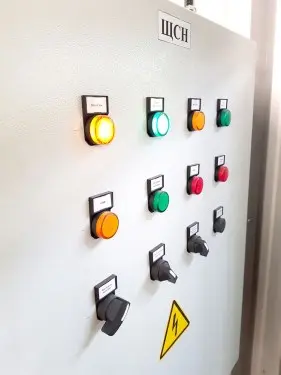

  • Auxiliaries board
  • Exhaust system
  • Automatic fire fighting and fire alarm system.
  • Fuel line system from the fuel tank to the DG

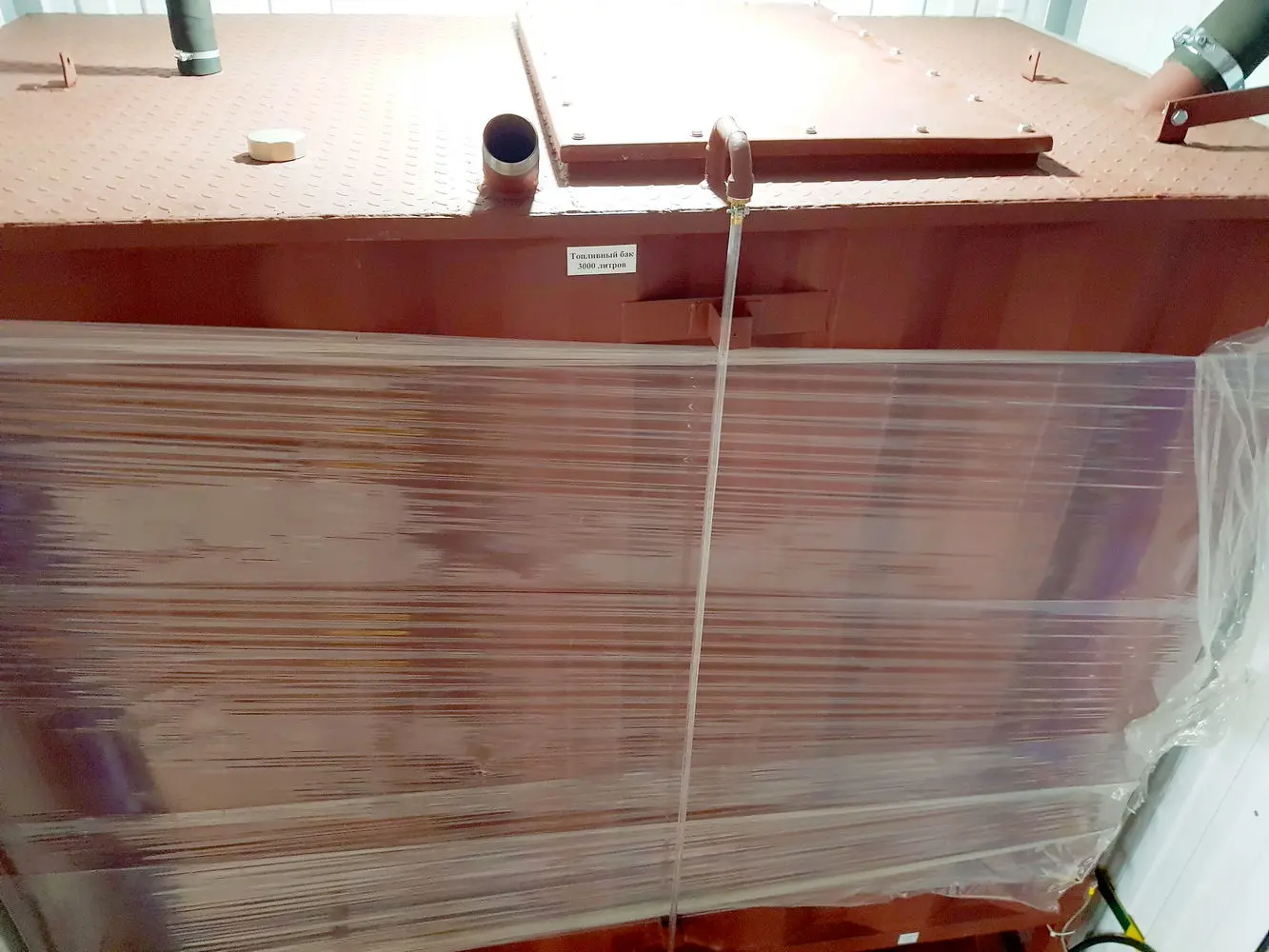

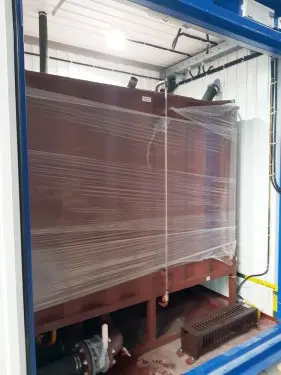

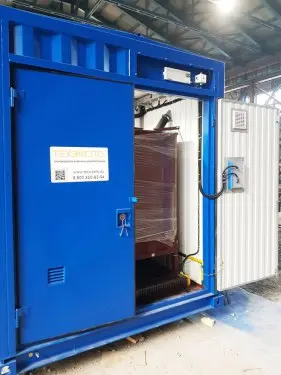

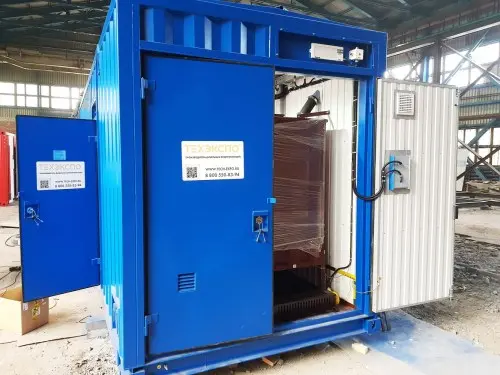

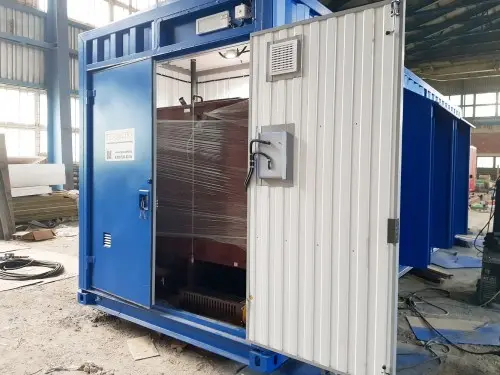

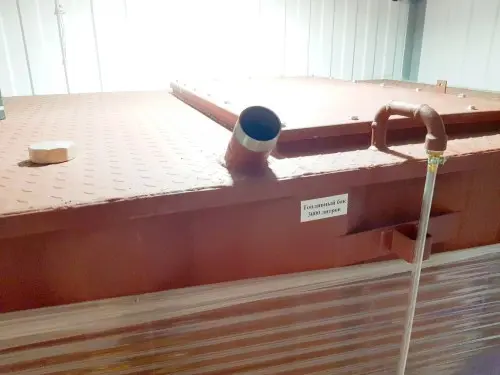

The fuel compartment houses an extra 3000-liter fuel tank with a fuel gauge, filler port, cooling system, emergency fuel drain and fire isolation valve. Outside the container, a bell is taken out to be able to refuel from a tanker pistol. The diesel genset receives fuel from a service fuel tank through the fuel line

The DG is mounted on a car trailer, 849062 model, and capacity of 20 000 tons. The container is attached to the trailer using twist locks.

Order the budget estimation for a similar project - make a request to

We’ll send an engineer to your site for free pre-project inspection, select equipment, develop the budget.
