Supply of a 250 kW Genset on a chassis and design for an agricultural company
| Total capacity | 250 kW |
| Client | Agricultural company |
| Фото |
|
| Task | to provide a mobile backup power source at the Customer's industrial facility and provide technical capabilities to reduce noise levels during equipment operation. |

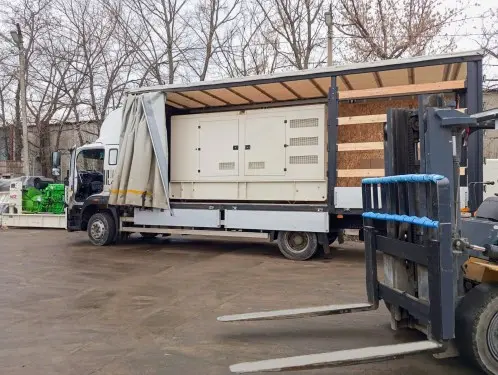

| Solution | is the supply of a diesel power plant in an all-weather noise-proof casing on a tractor two-axle trailer and the development of design documentation. |
To solve the key tasks of the Customer, the TE.250C-T400-2RP diesel generator set manufactured by Techexpo was selected. It is suitable as both the main and backup power source. The main function of the casing is to protect the generator set from adverse weather conditions and unauthorized entry, as well as to reduce the noise of a running diesel generator set.
More information about the supplied equipment:

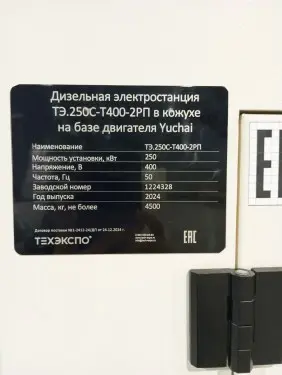

Genset TE.250C-T400-2RP in an all-weather noise-proof casing consisting of:
- Yuchai YC6MK420L-D20 diesel engine,
- Stamford HCI434D generator,
- Control panel based on the DeepSea Electronics DSE 6120 controller,
- Automatic generator protection,
- Built-in 600 l fuel tank,
- Electric coolant heater,
- Electronic fuel level sensor,
- Industrial muffler in a casing,
- A set of rechargeable batteries,
- Built-in battery charger for a diesel power plant,

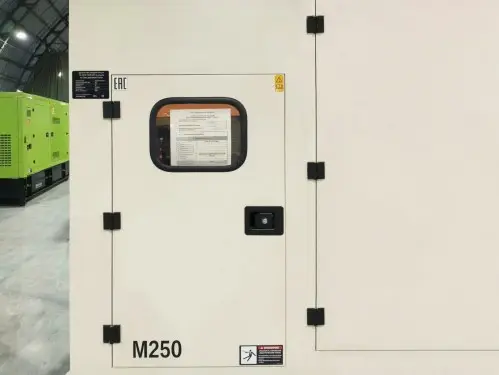

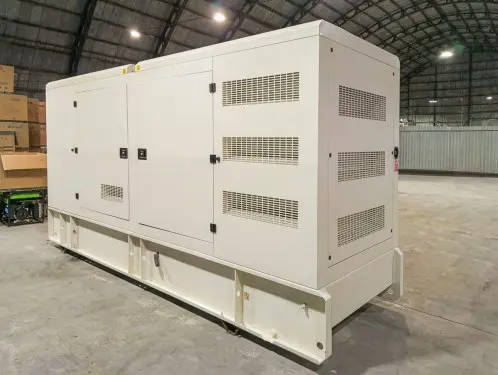

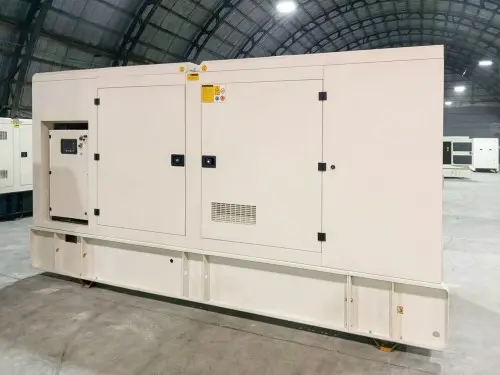

- All-weather waterproof casing with service doors,
- Trailer (tractor two-axle with a lifting capacity of 7 tons).
Main characteristics of the equipment
Rated power — 250/312.5 kW/kVA
Standby power — 280/350 kW/kVA
Current type — 3-phase
The rated output voltage is 400 V
The rated frequency of the output voltage is 50 Hz
Fuel consumption at 100% load is 69 l/h
Fuel consumption at 75% load — 52 l/h
Length — 3900x1300x2050 mm
Dry weight — 3650 kg
The capacity of the standard fuel tank is 600 liters
Battery life at 75% load is 8 hours.

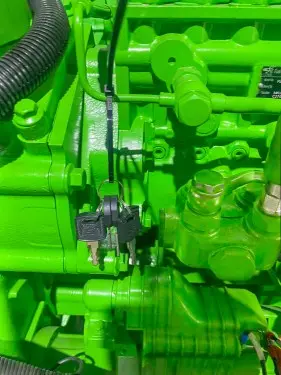

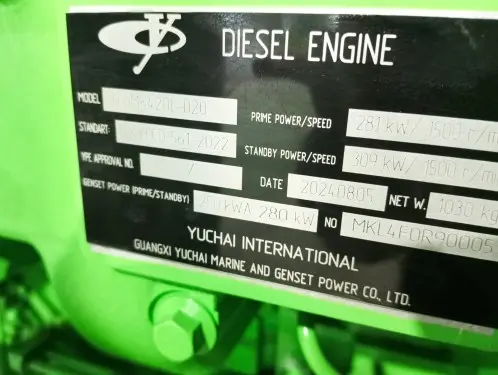

Engine Characteristics
-
Manufacturer — Yuchai
-
Model — YC6MK420L-D20
-
Engine type — diesel, four-stroke
-
Engine displacement — 10.34 liters
-
Number and arrangement of cylinders — 6 cylinders, inline
-
Engine speed — 1500 rpm
-
Cooling — liquid
-
Engine speed control — electronic
Generator Characteristics
-
Manufacturer Stamford Tech
-
Model — HC434DH
-
Rated power — 250 kV
-
Voltage — 400 V
-
Rotation speed — 1500 rpm
-
Insulation class — H
-
Technical protection level IP — 23

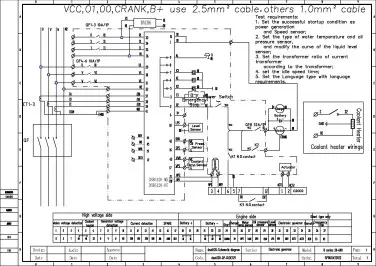

The DGS is equipped with a DSE 6120 control panel with an electronic event log, battery voltage monitoring, an engine preheating system, an integrated operating time (operating hours) counter and stops when a malfunction is detected.
Development of working documentation sections
Techexpo also completed for the Customer the development of working documentation for the installation of the power supply source, according to the Design Assignment.
Diesel generator set consisting of:- distribution circuit – 0.38 kV,
- cable route from DSU to VRU,
- grounding and lightning protection,
- smoke extraction,
- DGS's own needs system,
- structural solutions for the foundation.
Environmental protection as part of: justification of the possibility of placing an emergency power supply.
The project was completed on time in compliance with all the wishes of the Customer. The warranty period for the supplied equipment is 12 months or 1,000 operating hours.
