Supply of 1200 kW genset, UPS , start-up and shakedown for a construction company in the Moscow region

Total capacity 1200 kW
Client LLC «GarantPromStroy»
Фото
Task The task was to provide backup power supply to the customer's facility for situations of complete or partial power failure.
Solution The solution is the supply of a diesel power plant with a capacity of 1200 kW, carrying out commissioning and load testing.

Our customer, LLC «GarantPromStroy», is engaged in the construction of various facilities. To ensure the power supply of one of them in the Central Region of Russia, the company contacted Techexpo. After visiting the specified facility, Techexpo specialists developed the optimal technical solution for solving the customer's tasks and began to implement it.

The main feature of the project is a comprehensive solution to the problem of turnkey backup power supply. From a technical point of view, an important part of the project was the synchronization of the genset and UPS (uninterruptible power supply) with the network. The uniqueness of the project is that the battery life of the genset at a load of 970 kW is 10 minutes.

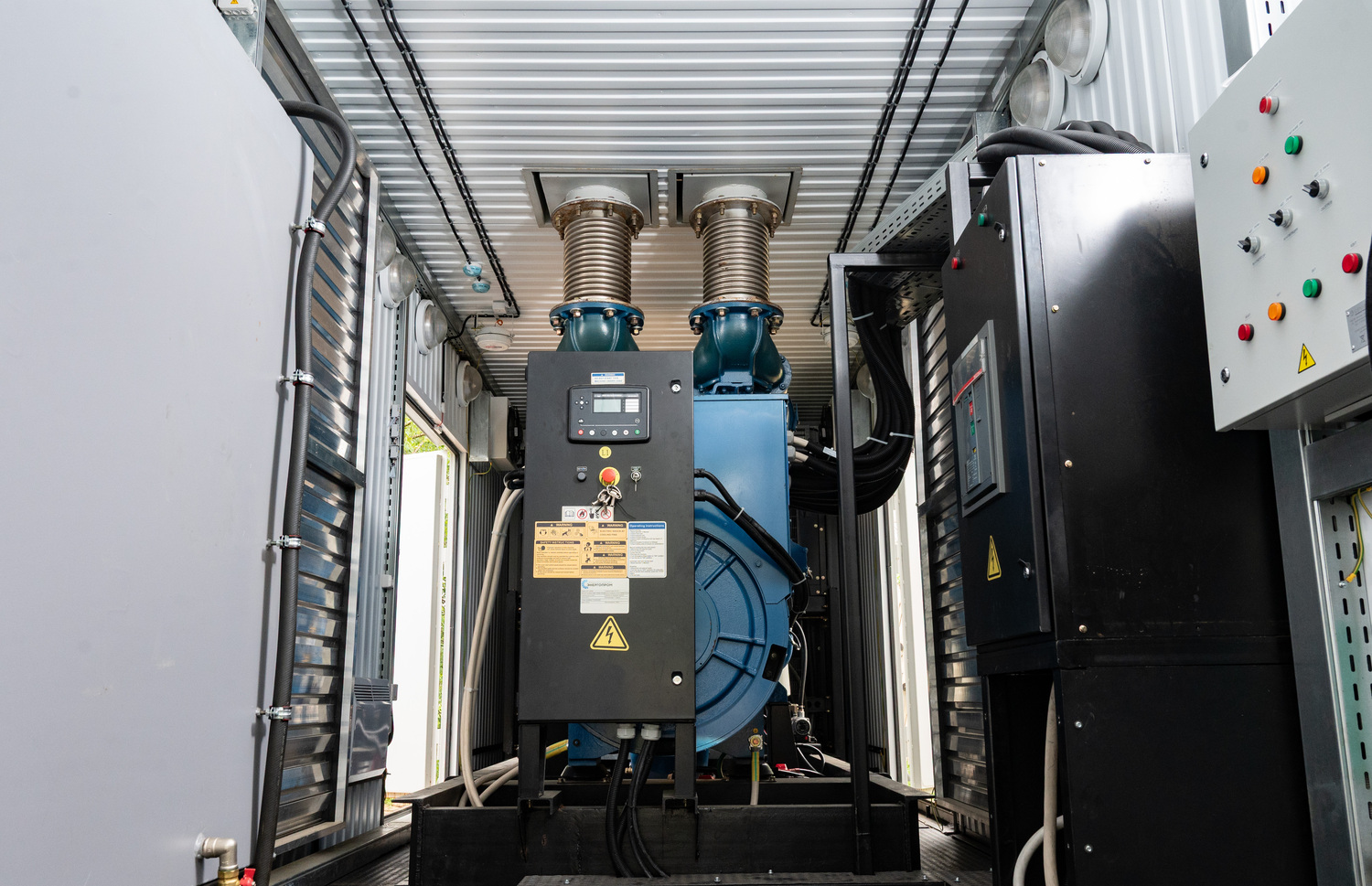

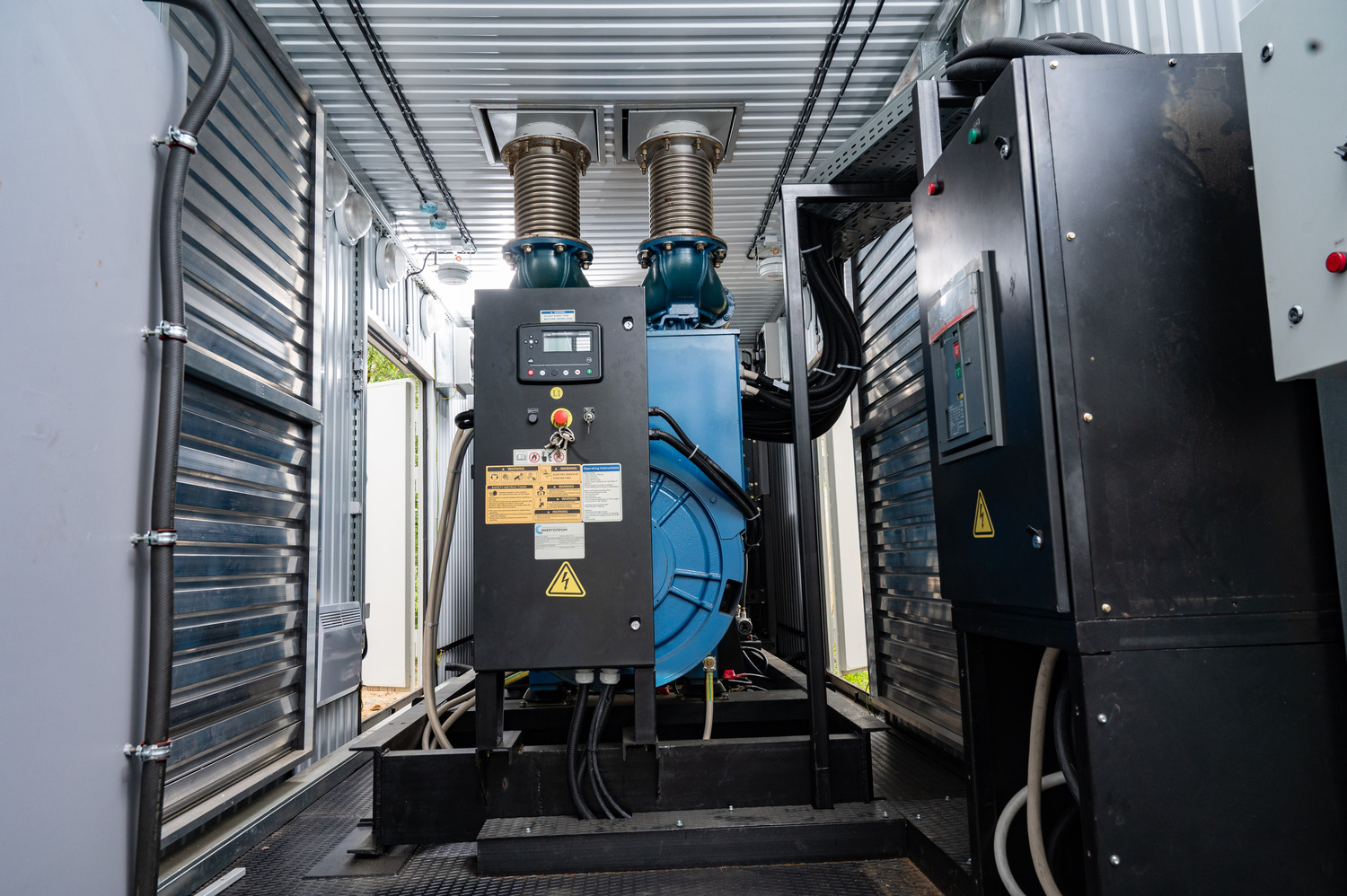

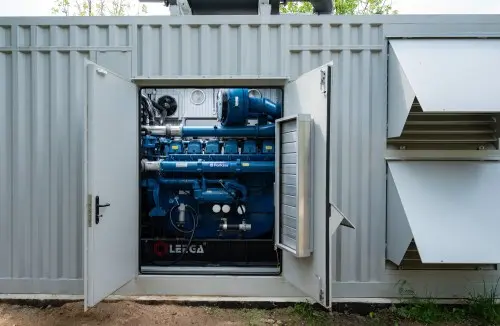

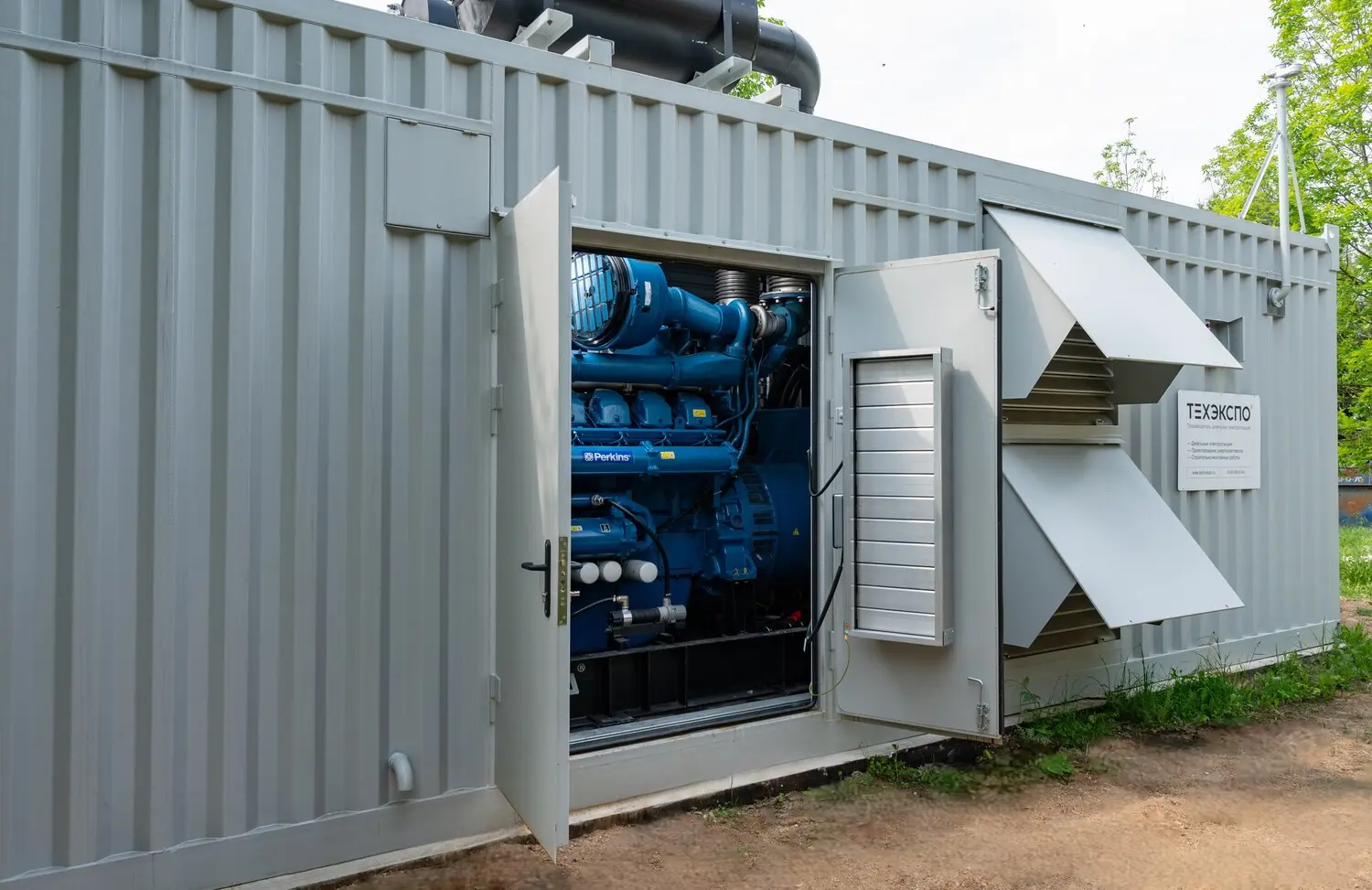

To connect a reliable backup power supply, a TE.1200S-T400-2RN diesel generator set based on a Perkins closed engine in a container was selected. Also, an uninterruptible power supply is included: HIDEN EXPERT HEM600-50X, HIDEN EXPERT HEPM50X-E, battery capacity, battery backplane.


Characteristics of the diesel generator set:

  • Rated current: 2165 A
  • Dimensions (LxWxH): 5170x2195x2407 mm
  • Power factor: 0.8 cos φ
  • Weight (dry): 9462 kg
  • Type of current: alternating, three-phase

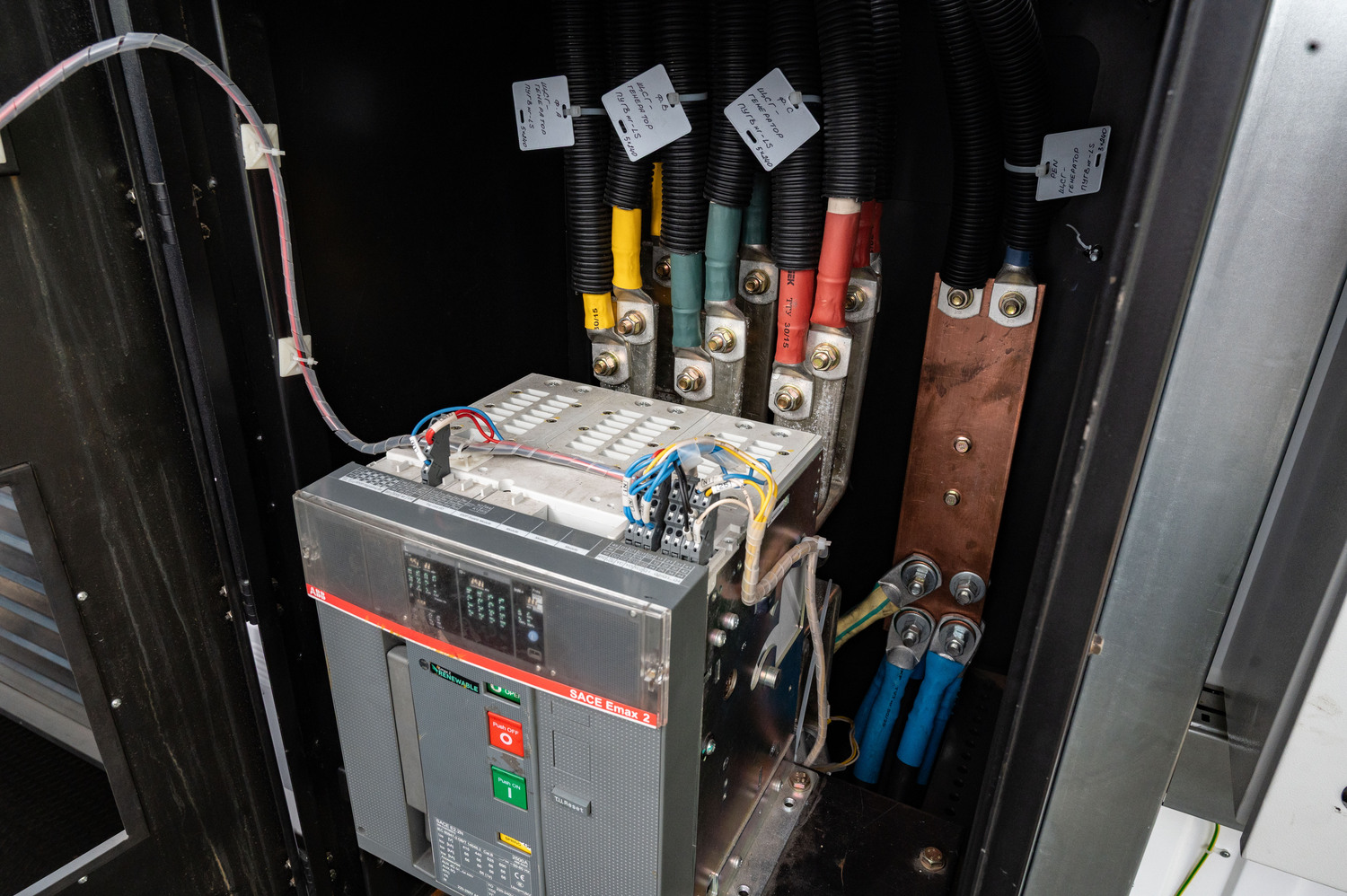

  • Automatic generator protection: at least 2200 A, with motor drive
  • Genset Control Panel: DSE 8610
  • Fuel tank in the frame: no

energo_Frame 1170.png

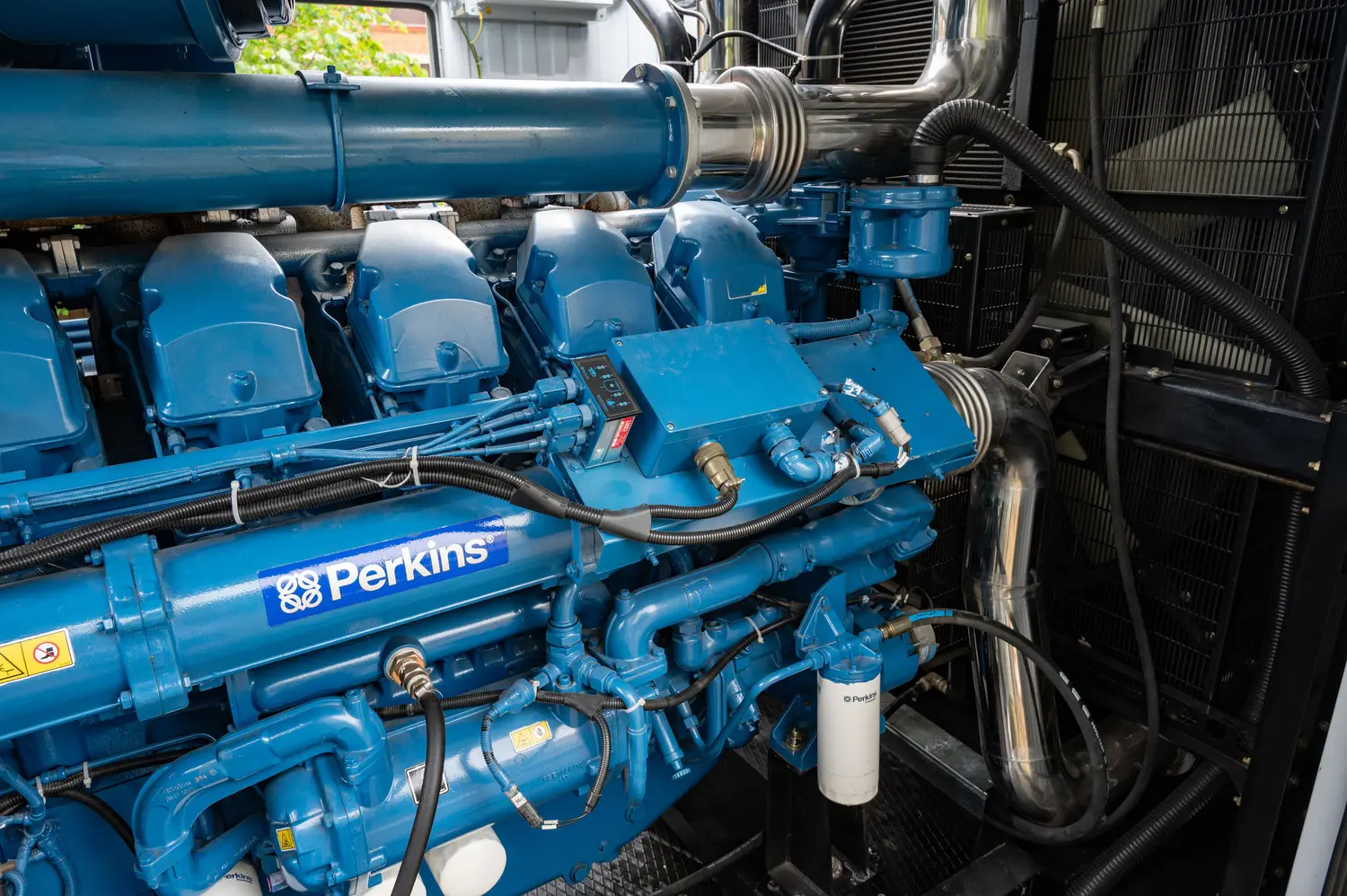

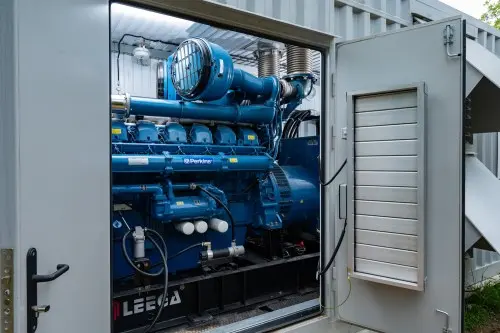

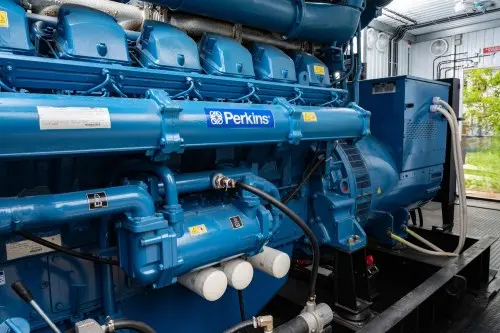

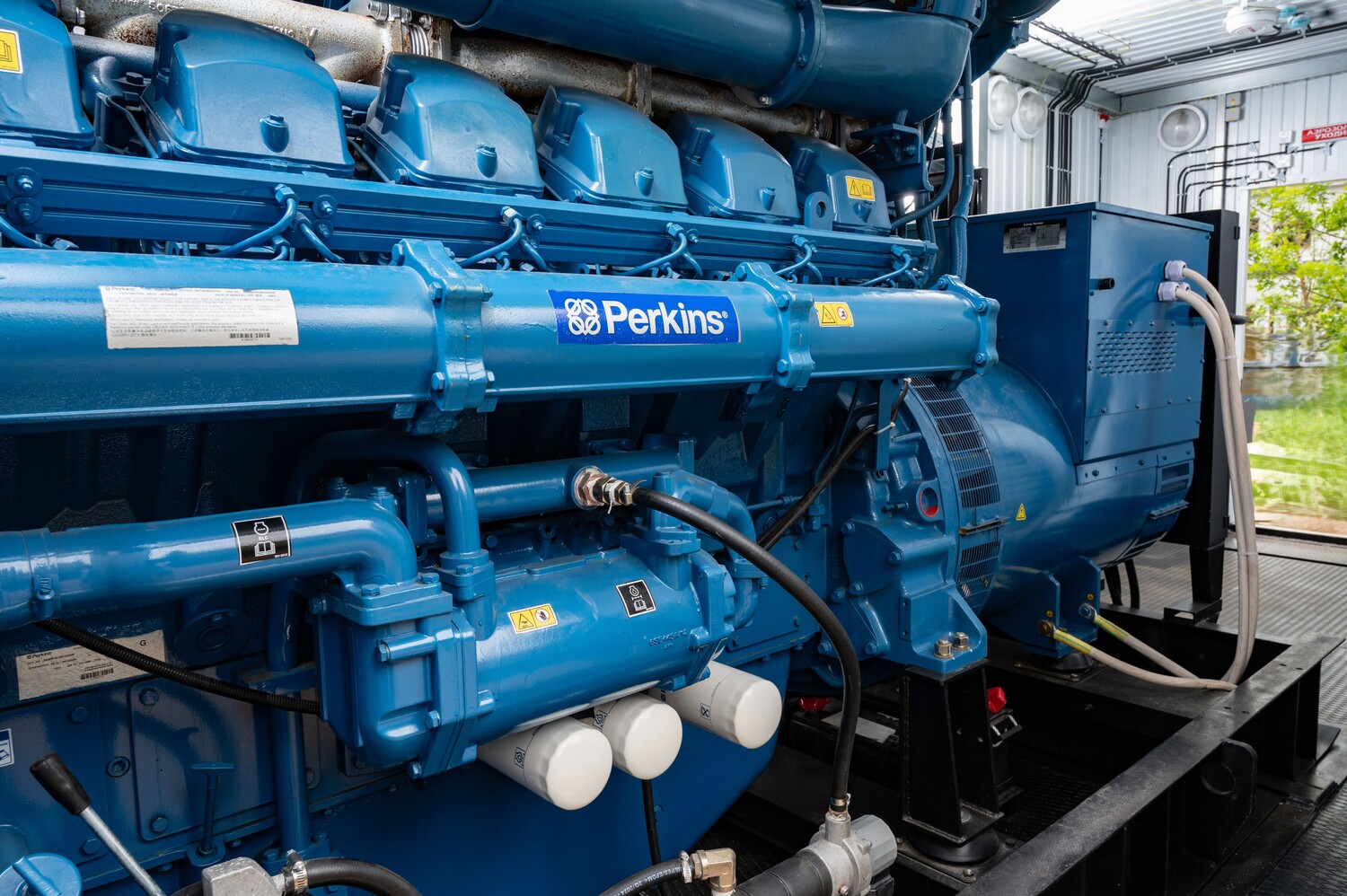

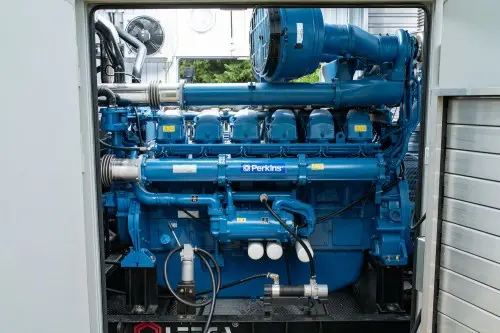

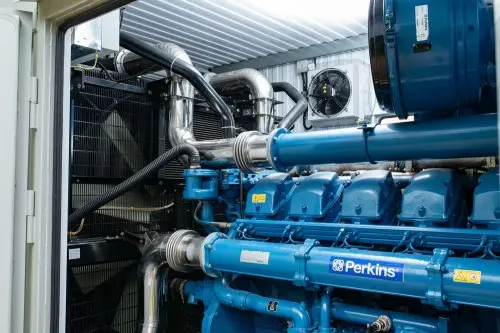

Perkins Engine 4012-46TAG2A

Perkins Engine Characteristics

  • Engine Model: 4012-46TAG2A
  • Country of manufacture: India
  • Rated power: 1331 kW
  • Rotation speed: 1500 rpm
  • Engine capacity: 45.8 liters
  • Engine type: Diesel
  • Number of cylinders and their arrangement: 12 / V-shaped




Characteristics of the Leroy Somer generator

  • Generator Model: LSA50.2L8
  • Number of phases: 3
  • Frequency: 50 Hz
  • Protection class: H
  • Output voltage: 400VВ
  • Generator type: Synchronous, 4-pole


energo_Frame 1170.png

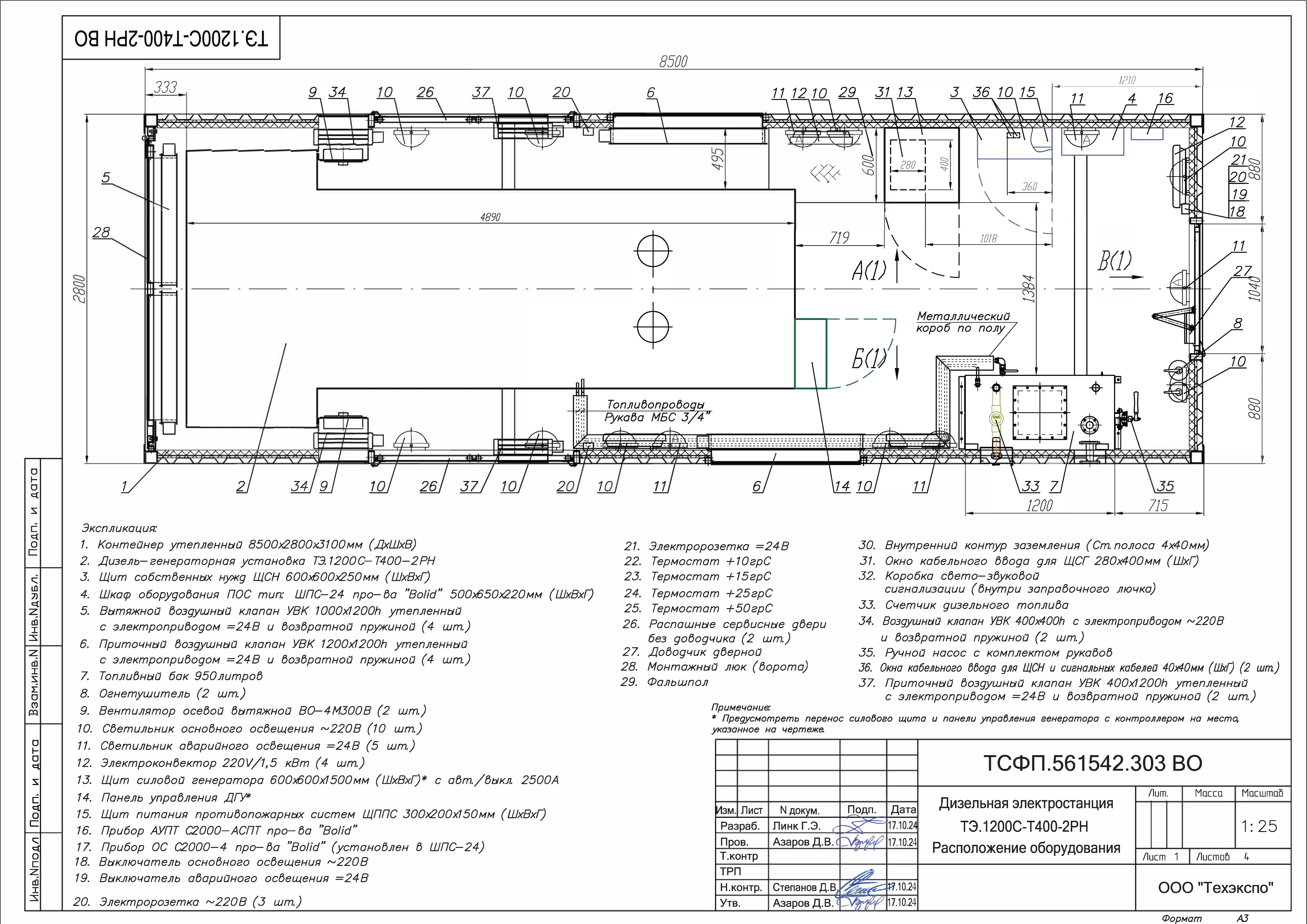

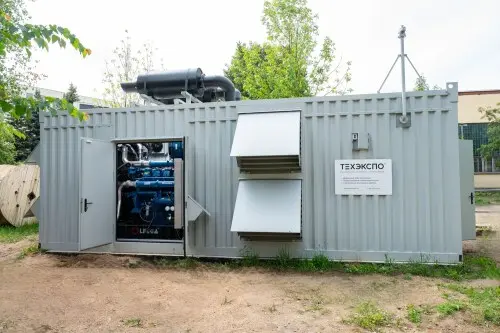

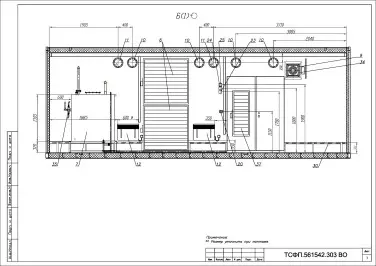

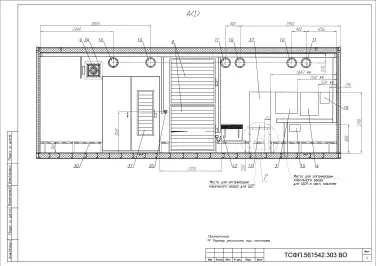

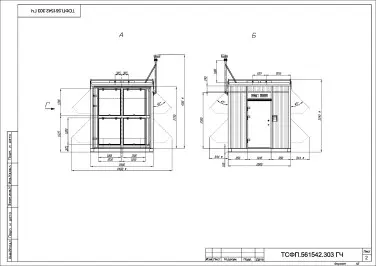

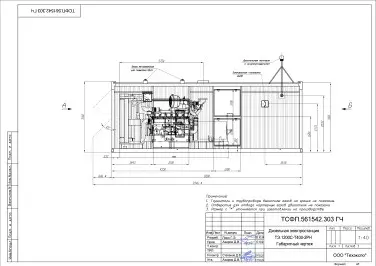

TE.1200S-T400-2RN diesel generator set : equipment placing

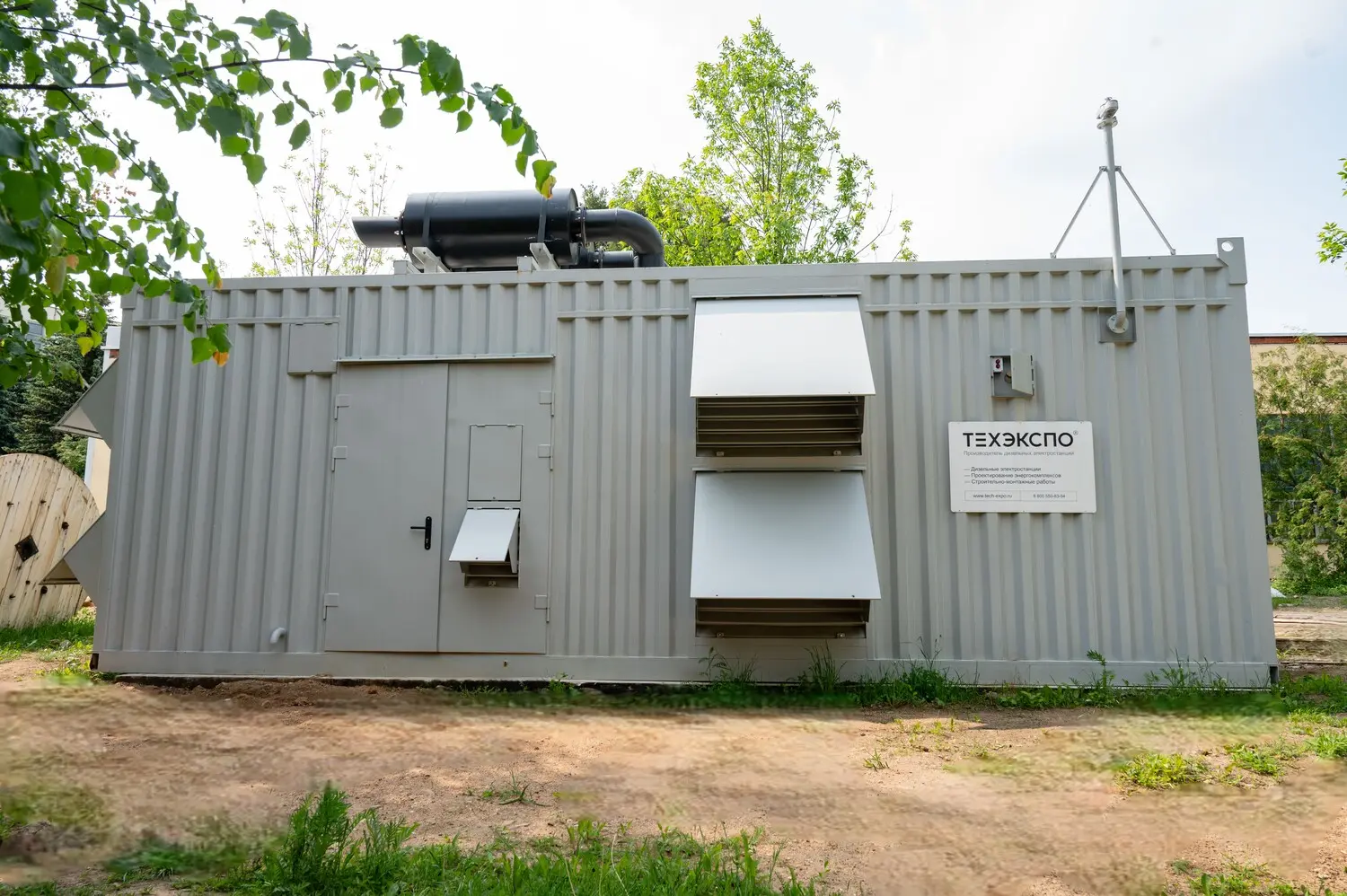

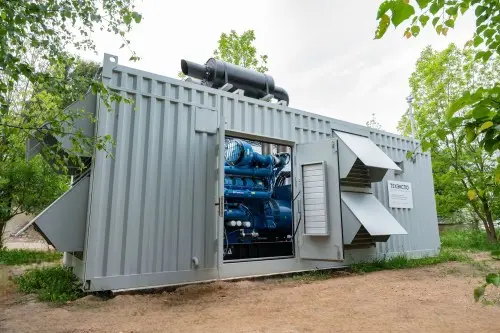

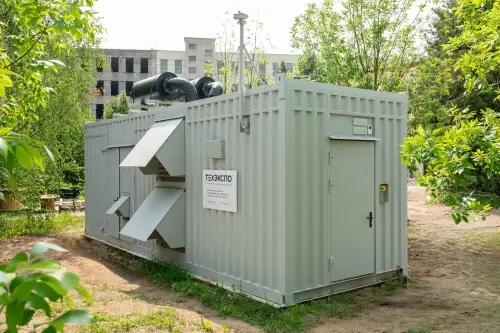

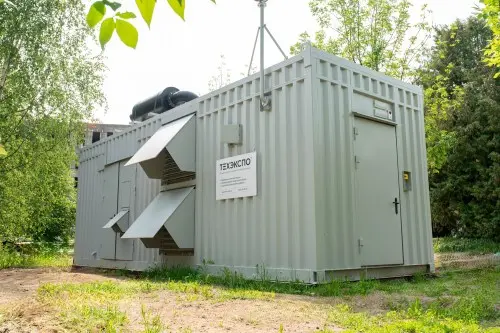

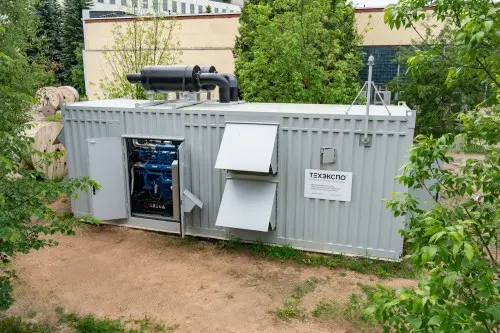

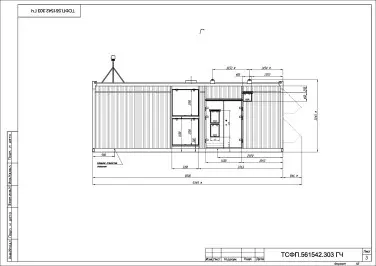

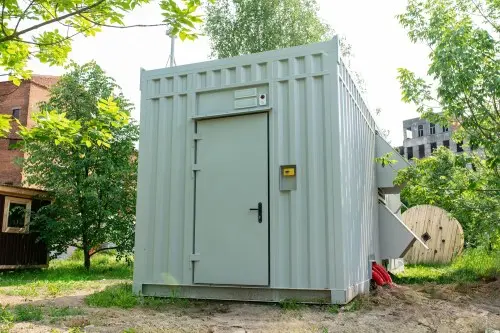

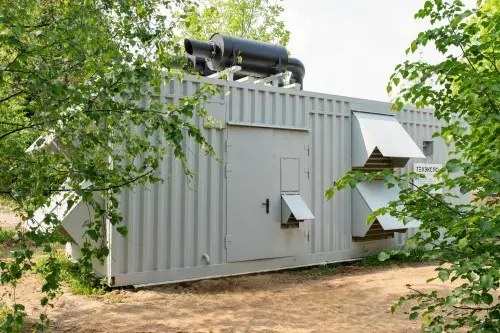

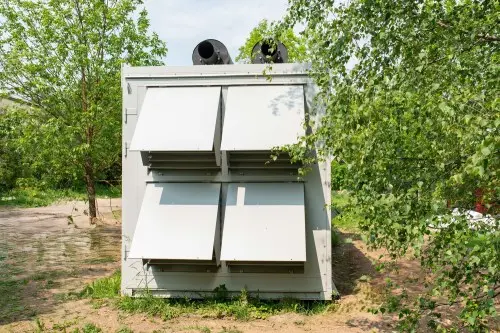

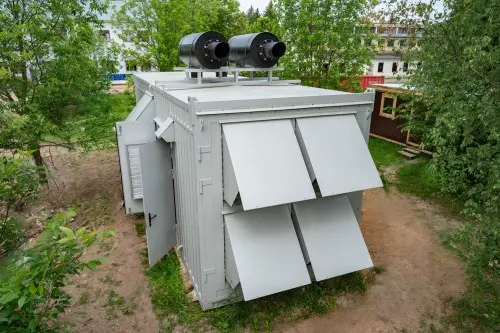

Container characteristics

  • Container type: all-welded, vandal-proof, 50 mm insulation, -40 to +40°C
  • Dimensions (LxWxH): 8000x2600x3100 mm
  • Weight (total): 20,000 kg

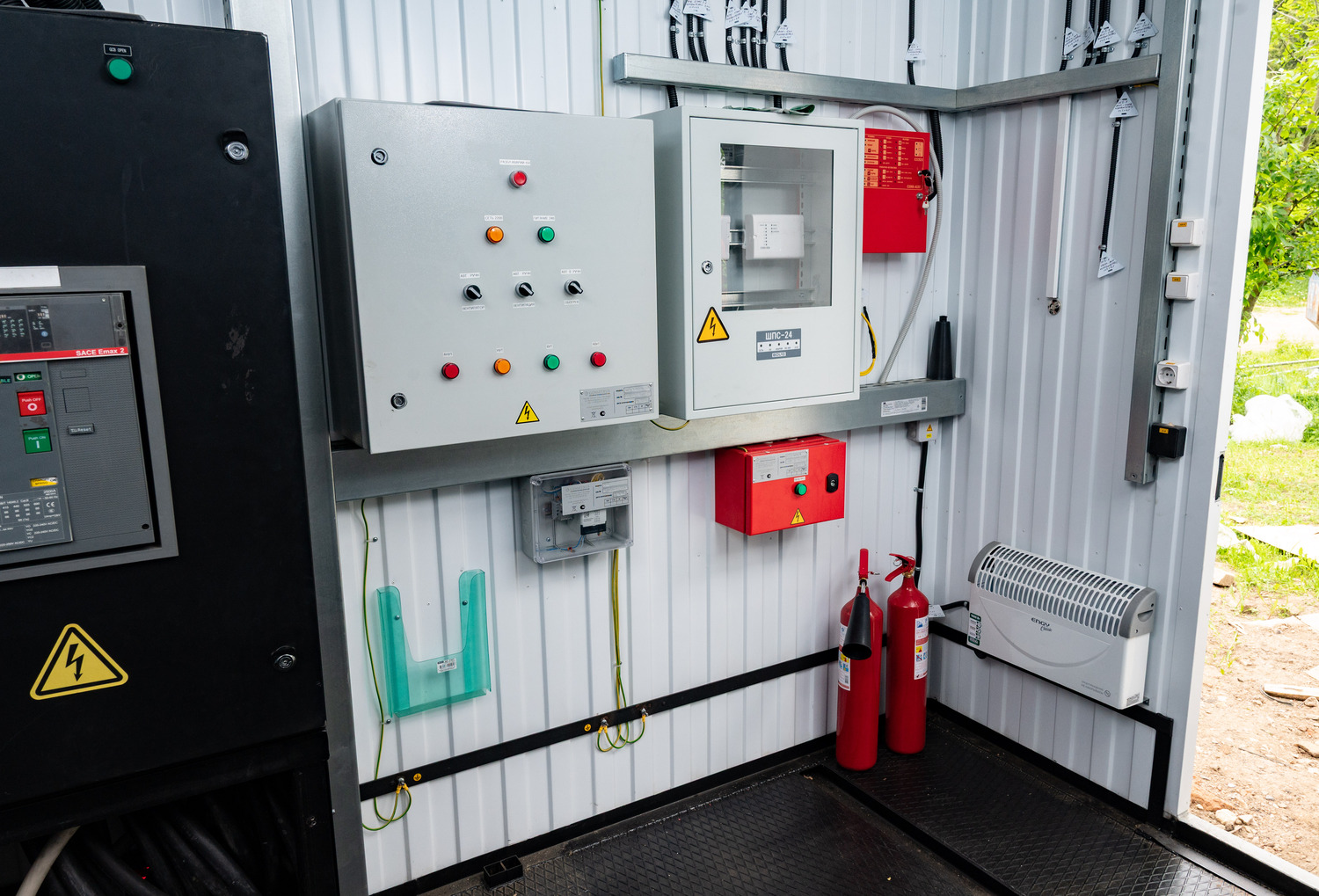

Container Systems:
  1. Lighting: main (220V) and emergency (24V);
  2. Security: automatic alarm systems and aerosol fire extinguishing;

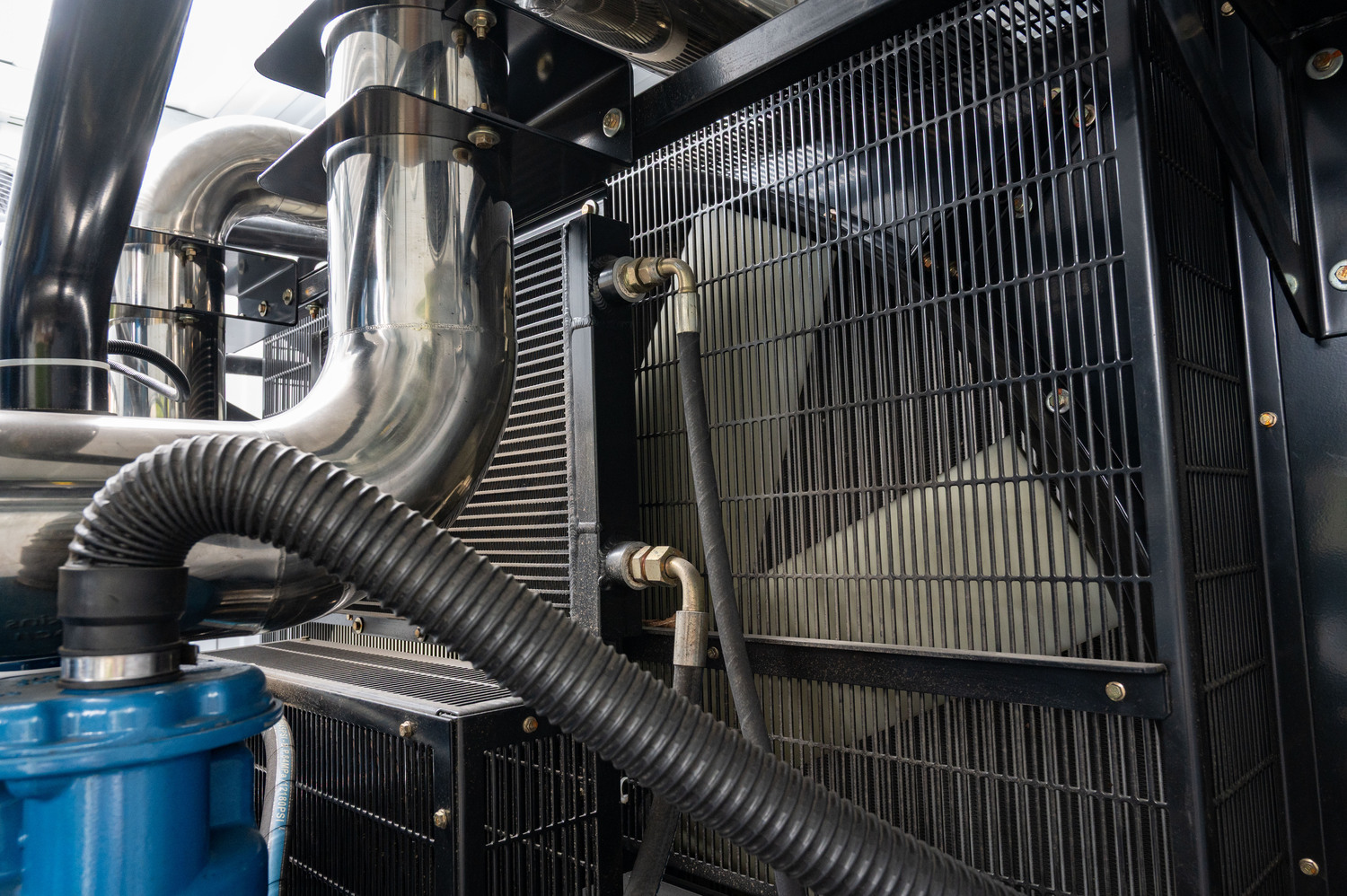

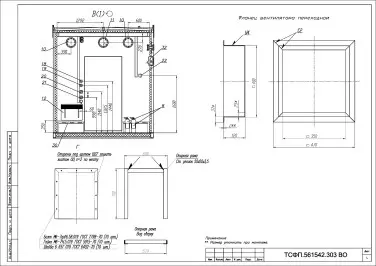

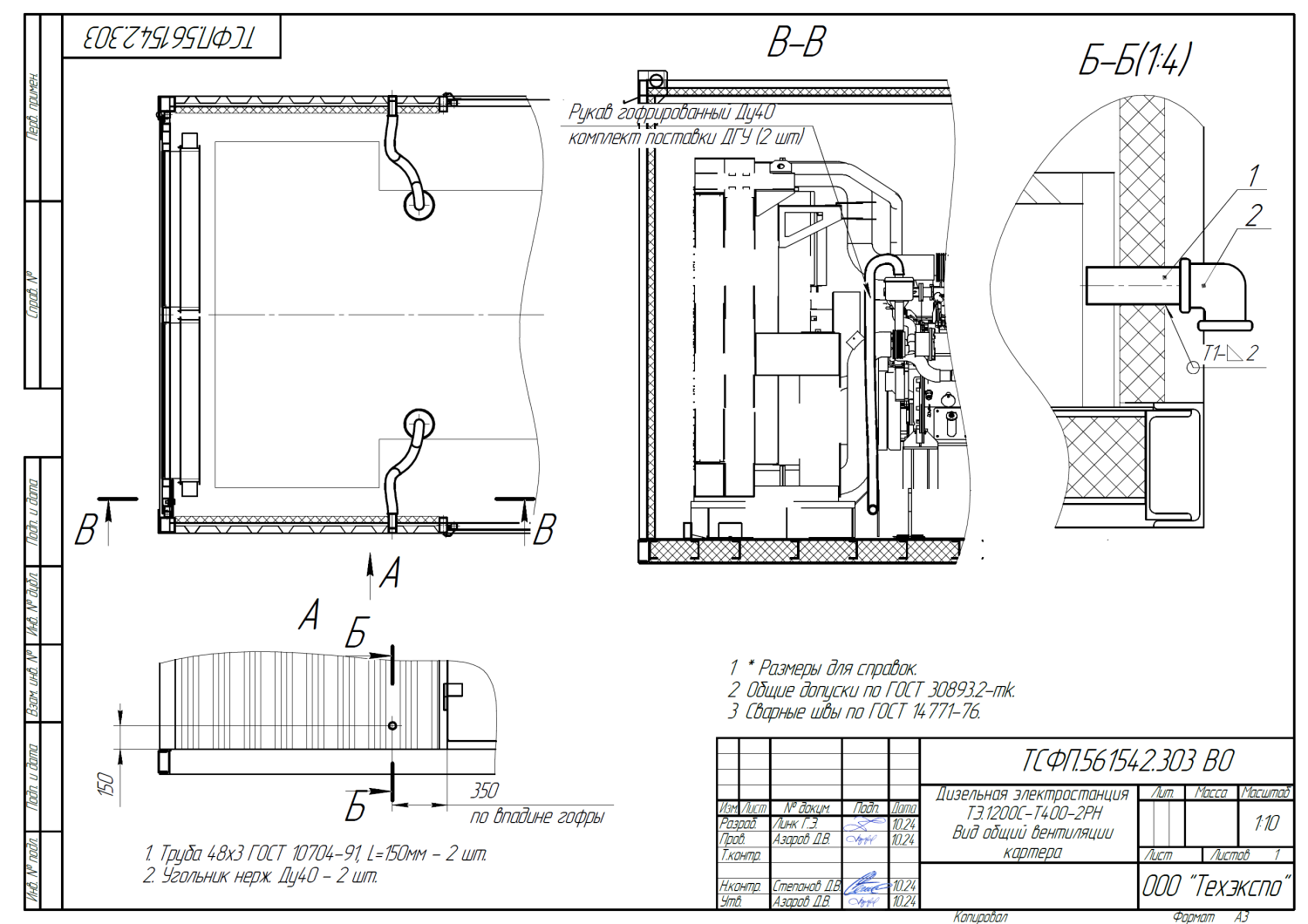

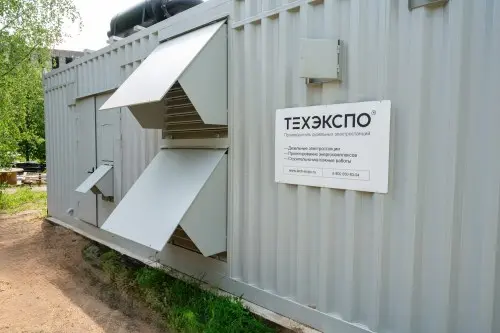

  3. Ventilation: supply and exhaust ventilation based on valves with automatic electric drives with electric heating and noise-absorbing awnings;
  4. Heating: electric convectors (220V) with thermostats;

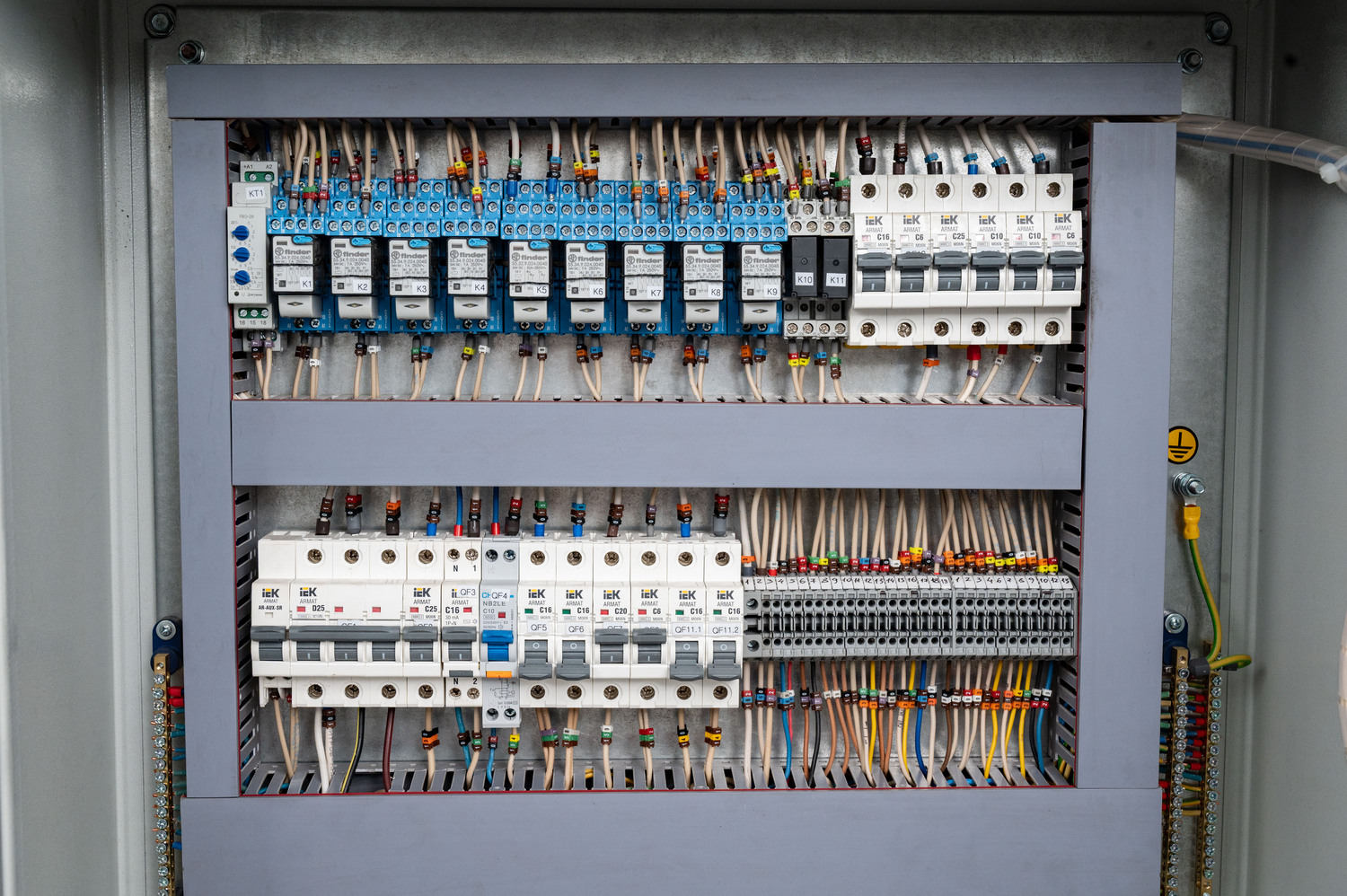

  5. Power supply: self-catering shield, internal wiring, sockets, ground loop with external outlet;
  6. Fuel tank: 950 liters fuel tank, with an external filler neck outside the container, with a fuel level sensor, with a breathing valve;

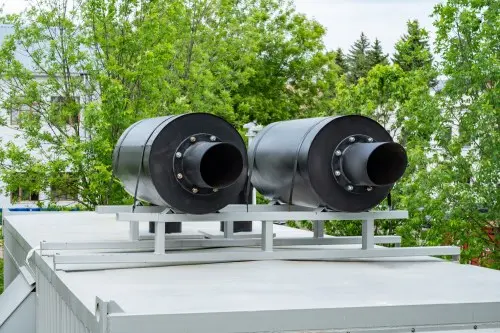

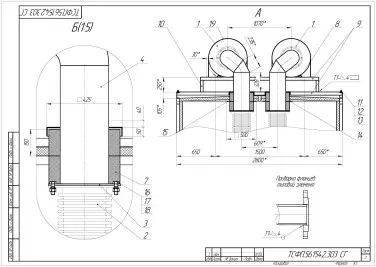

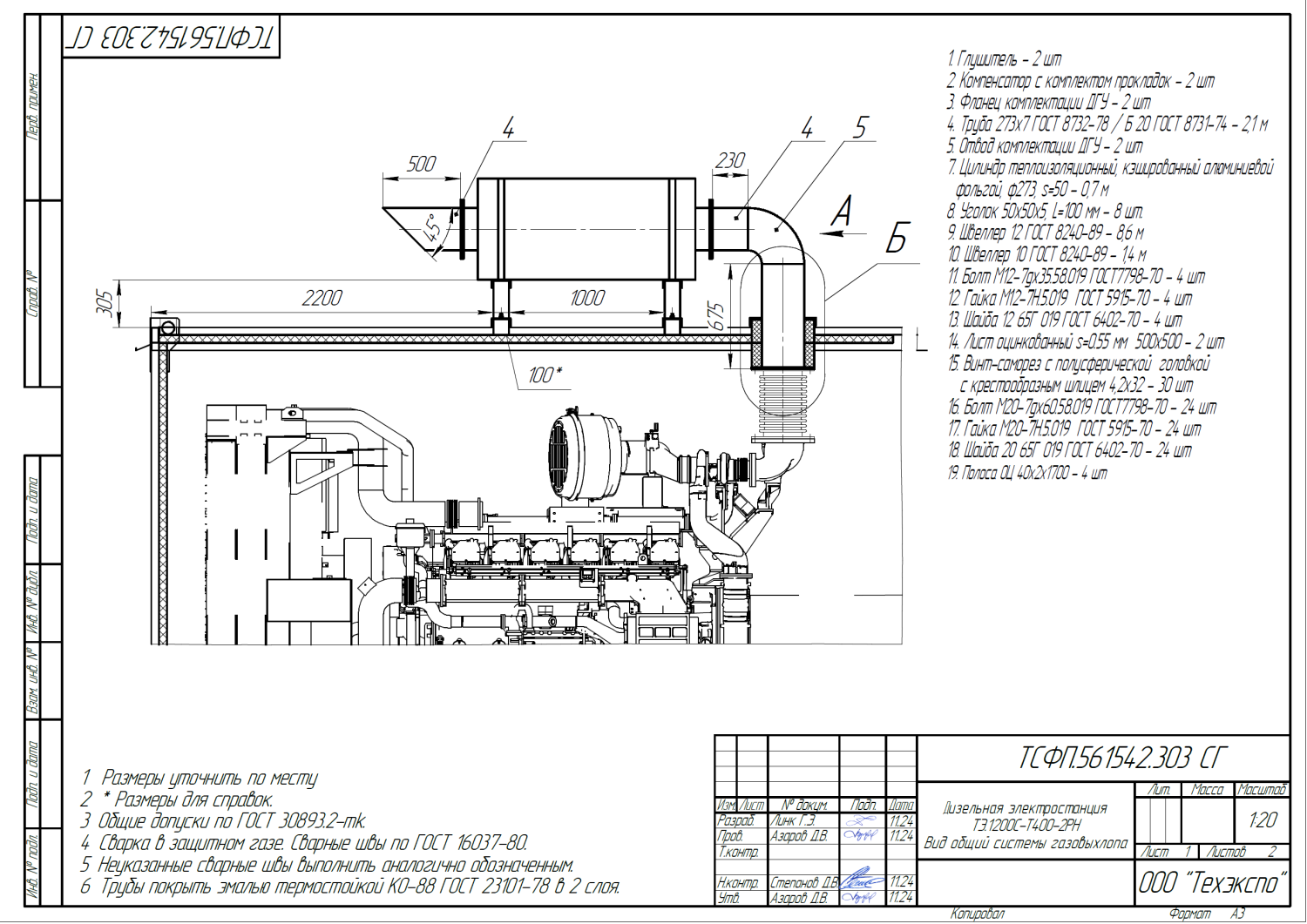

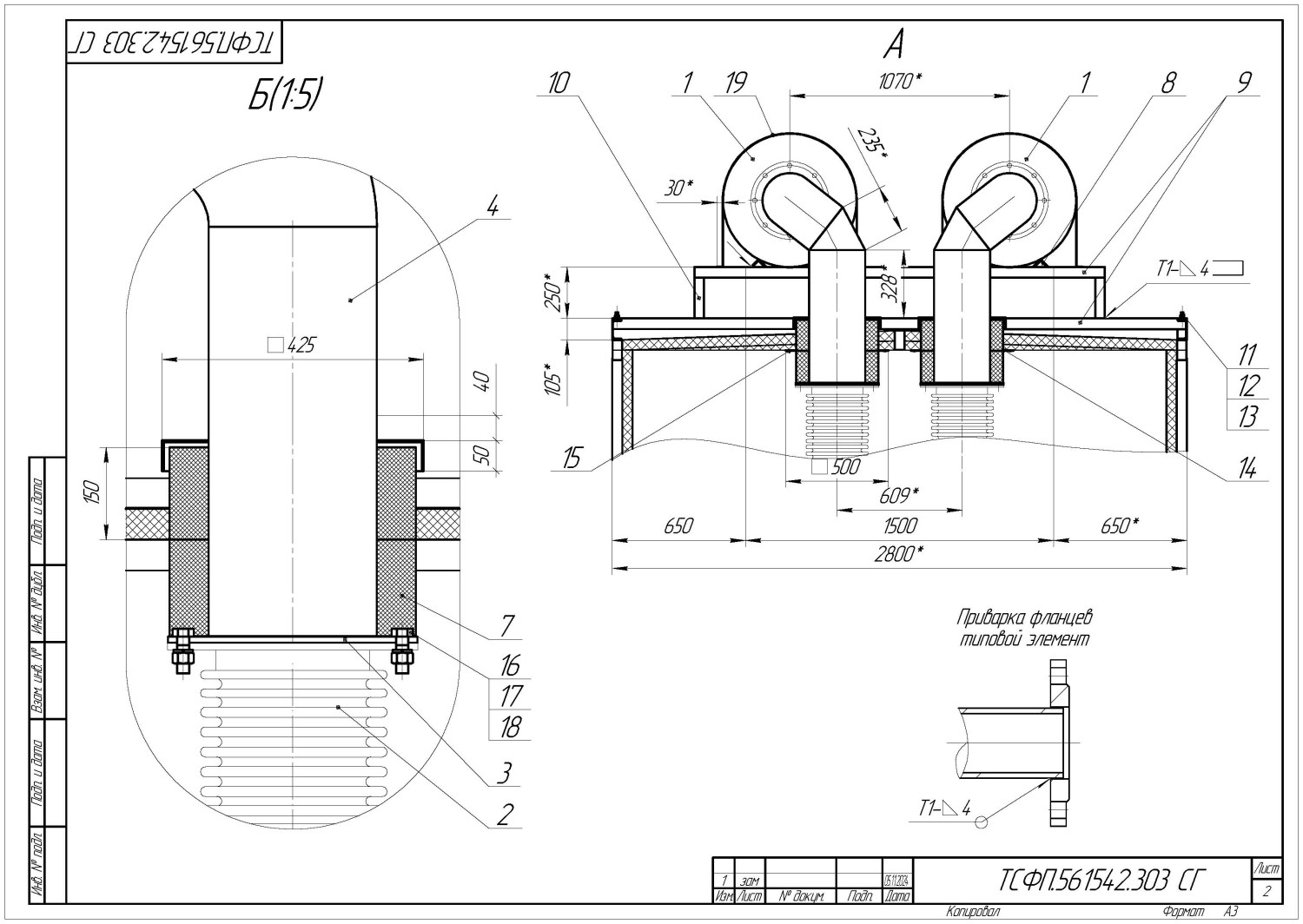

  7. Gasloop: pipeline and industrial muffler gasloop.

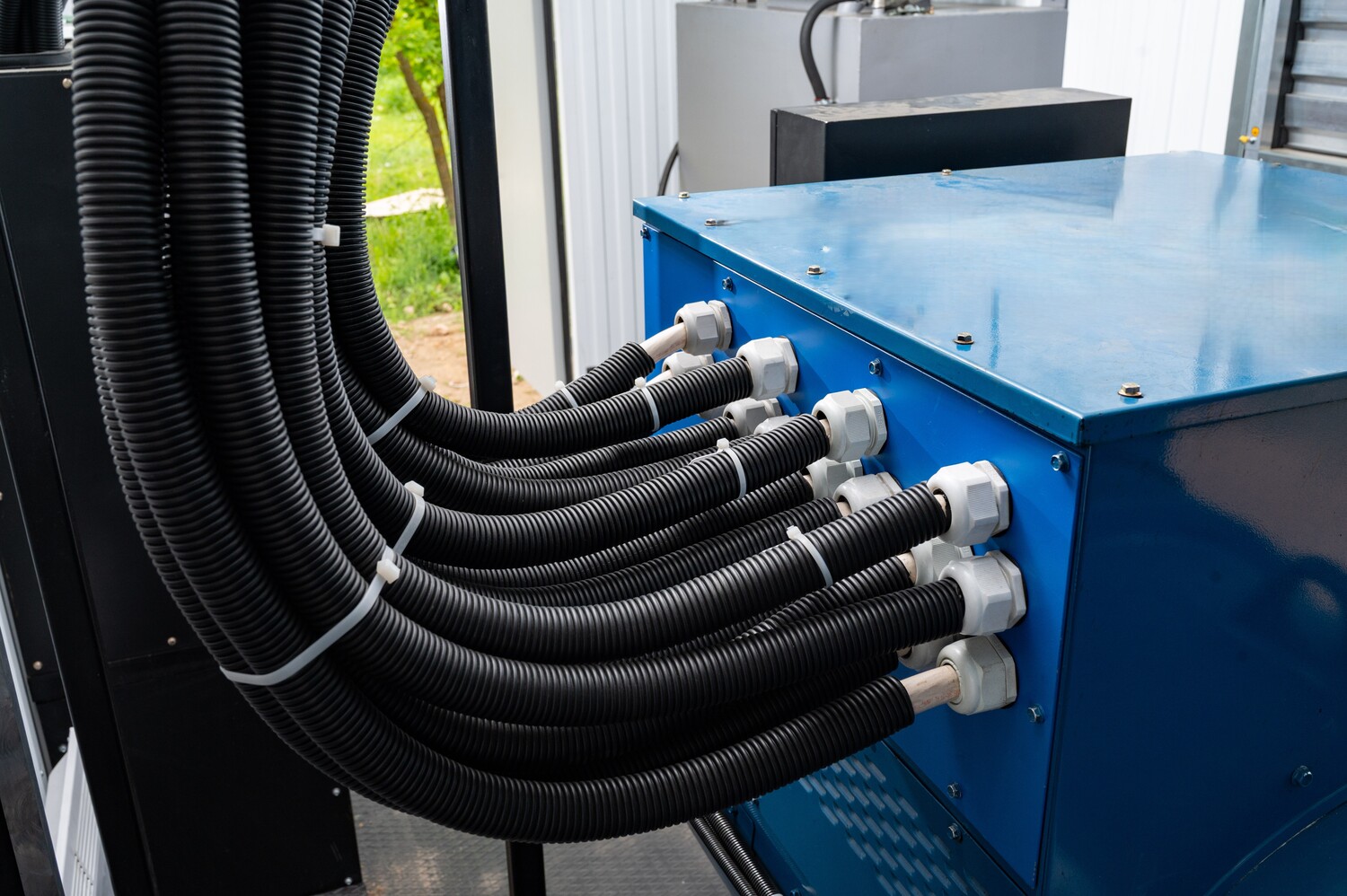

In addition to the main equipment, a UPS (uninterruptible power supply) was also supplied complete with a battery tank and a battery backplane.

Closed switchgear 6.3kV in a container:

  • UPS cabinet: HIDEN EXPERT HEM600-50X (2 pcs);
  • UPS type: Three-phase modular;
  • Power: 600 kVA/600 kW;
  • Installed option: parallel operation board for UPS;
  • Power module: HIDEN EXPERT HEPM50X-E (20 pcs);
  • Rated voltage: 500V;
  • Rated current: 1600 A;
  • Number of connected groups: 4 groups;
  • Service life: 10 years.

Techexpo specialists performed a full range of commissioning works at the Customer's facility. The warranty period for the equipment supplied under this project is 12 months or 1,000 operating hours.

Order the budget estimation for a similar project - make a request to

We’ll send an engineer to your site for free pre-project inspection, select equipment, develop the budget.
