Supply of 1200 kW genset, 10 kV power plant, installation, design, start-up and shakedown for JSC «Morgaushskaya Poultry Farm», Chuvashia

Total capacity 1200 kW
Client JSC «Morgaushskaya Poultry Farm»
Фото
Task The task was to provide a backup power supply to a continuous-cycle enterprise in cases of complete or partial de-energization.
Solution The solution is to supply a 1200 kW diesel power plant in a container complete with a closed 10 kV switchgear.
Morgaushskaya poultry farm is an enterprise with a Soviet history. It is located far from roads and railways, as well as large industrial facilities. The factory is equipped with modern equipment, which requires a constant stable power supply. Power outages are critical for the company. Therefore, Techexpo was tasked with developing and designing a solution for connecting the factory to a backup power source in case of emergency and force majeure situations.

Power outages of more than 30 minutes are extremely critical for this project, due to the specifics of production and technological processes. This affected the speed of the switchover.

For the correct execution of construction and installation works by our company, a set of working design documentation was developed and agreed with the customer. Based on the design results, the TE.1200S-T10500-2R diesel generator set manufactured by Techexpo was selected.

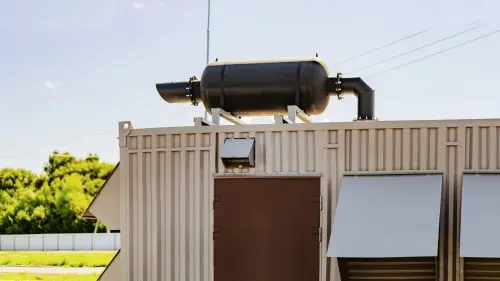

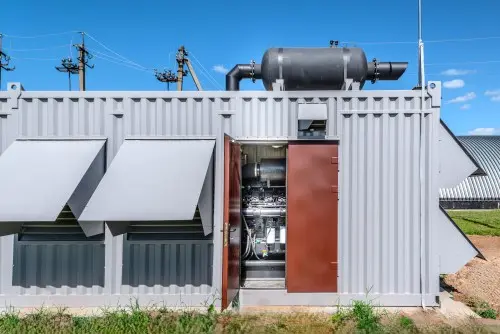

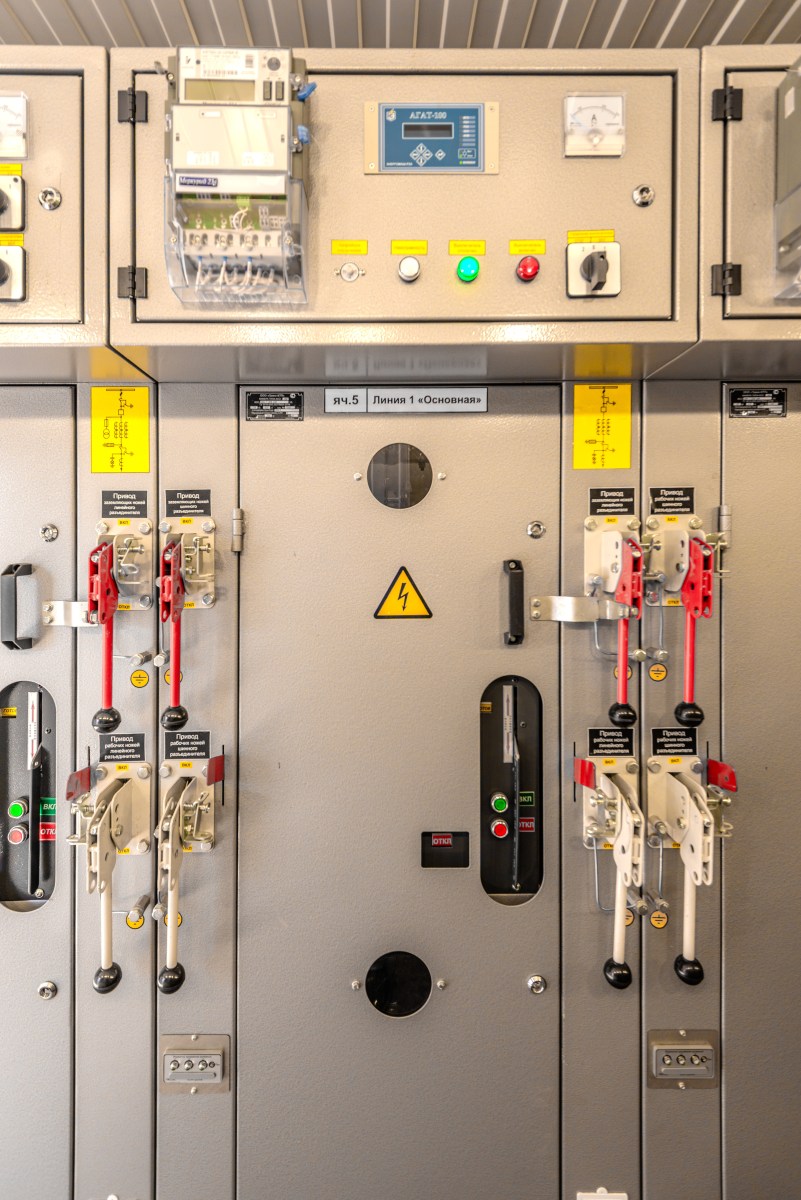

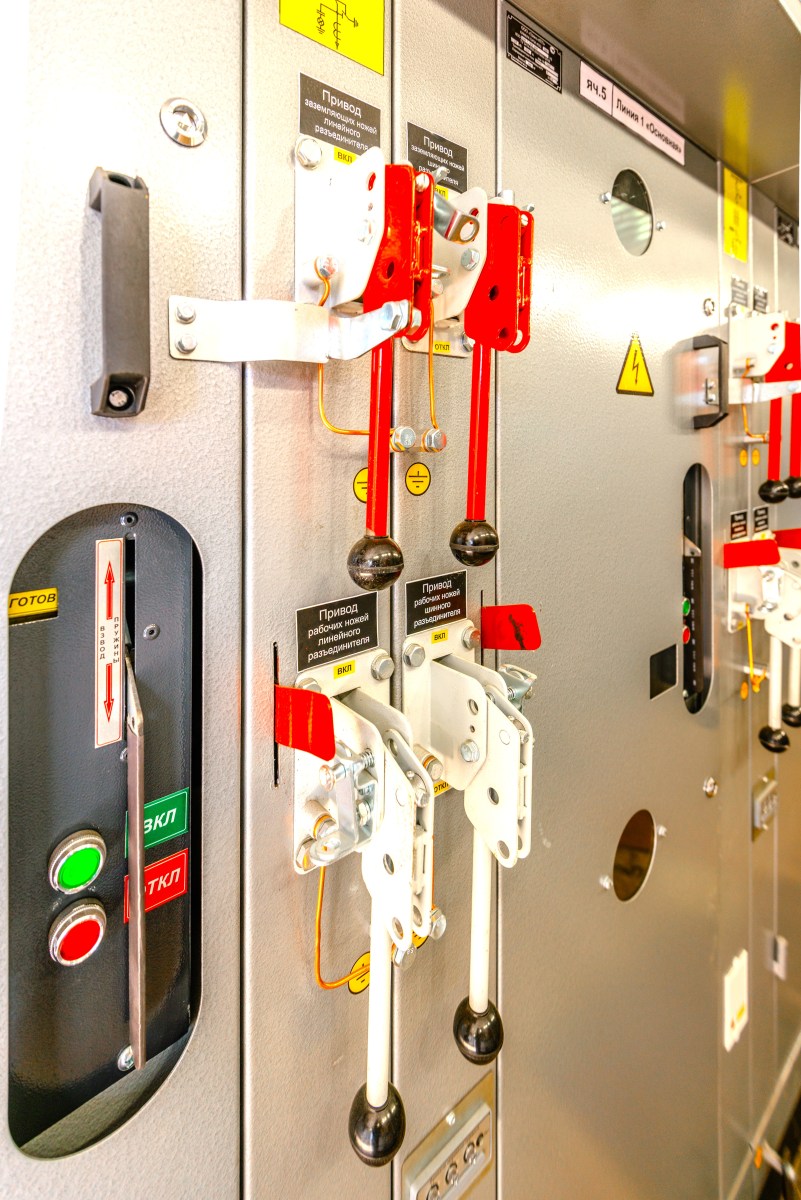

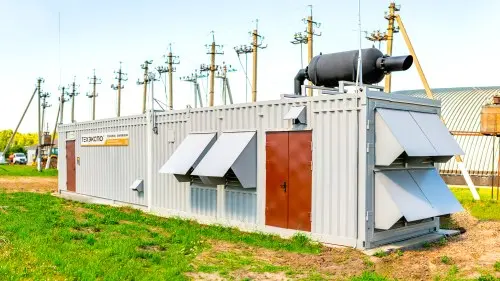

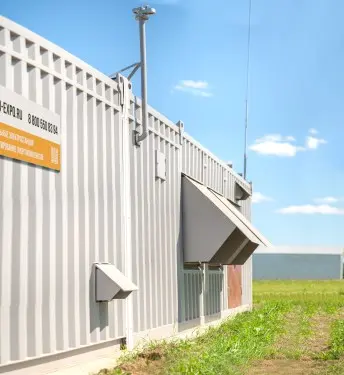

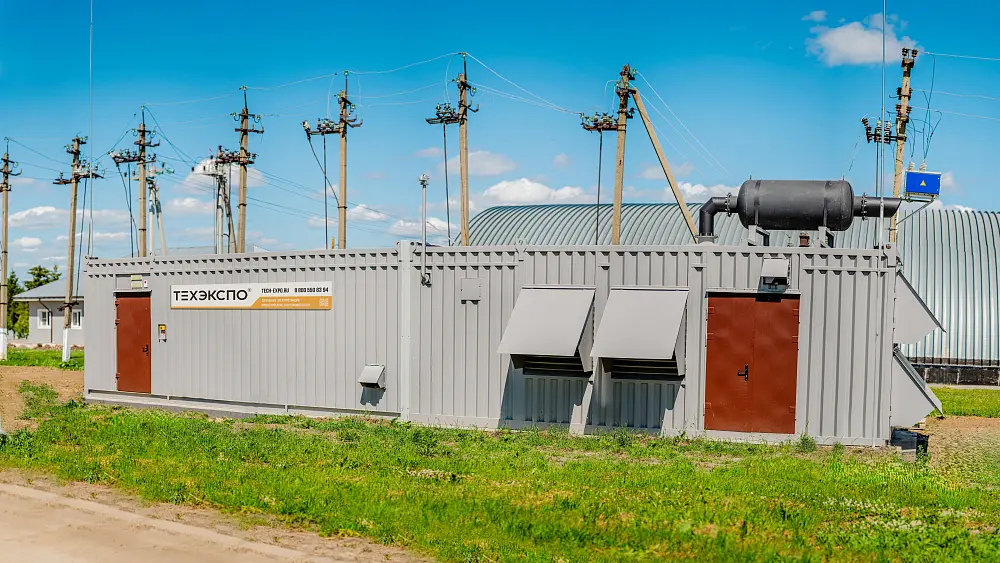

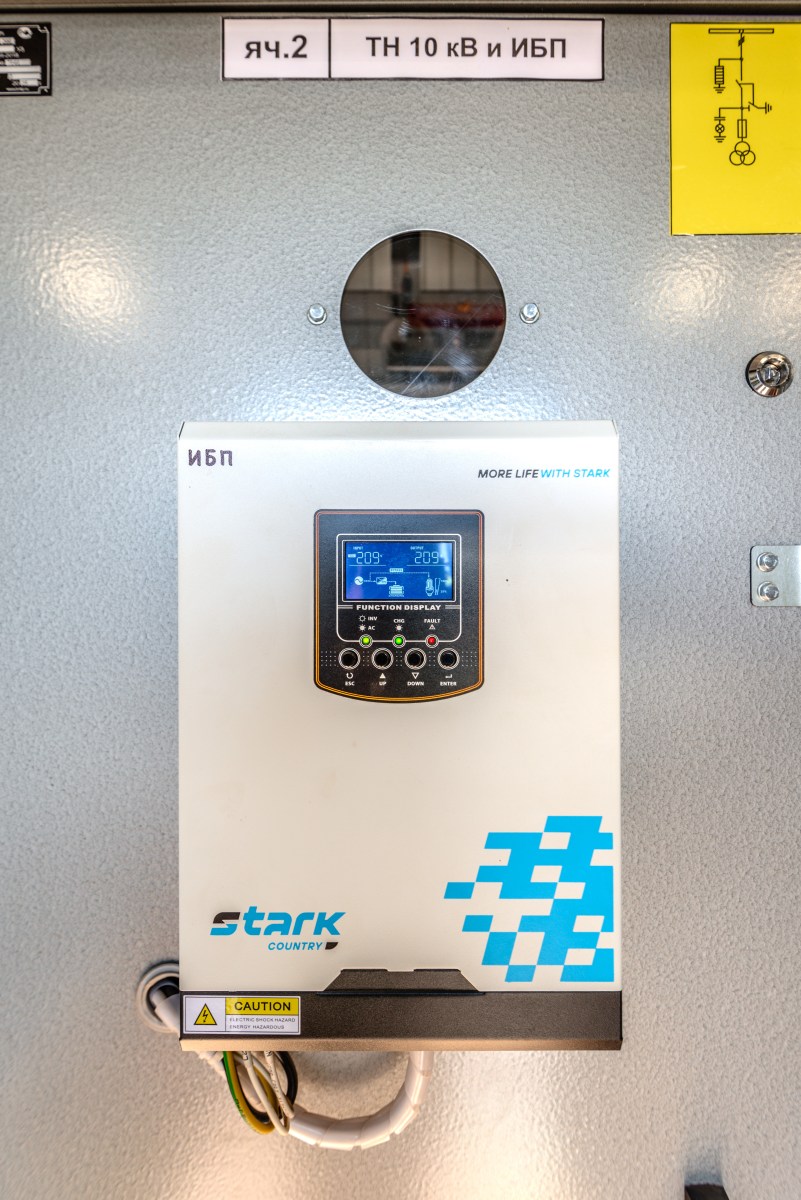

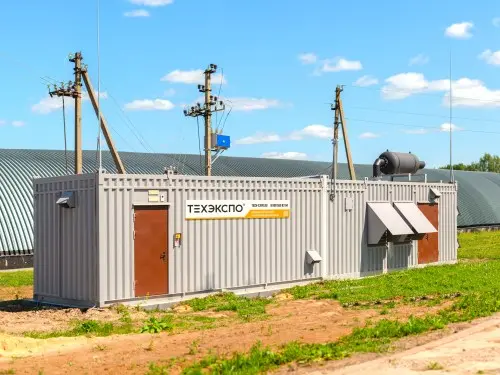

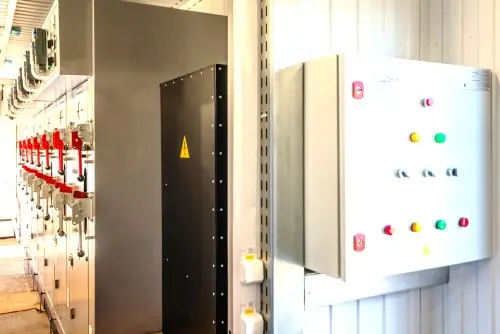

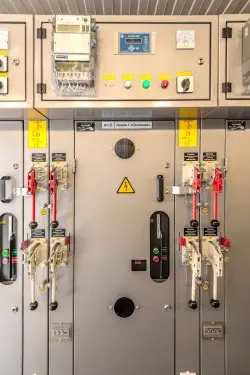

The diesel power plant is made in an all-welded container of the «North» type with dimensions of 16000x2600x3100 mm and insulation thickness of 100 mm. The station is equipped with protective distribution device 10kV, as well as cable products, materials for laying and connecting cables, materials for manufacturing and installing a grounding system and lightning protection container.

Full range of diesel generator plant equipment:

  • Insulated container «North» type

  • Diesel generator set TE.1200S-T10500-2R

  • Shield of own needs 1

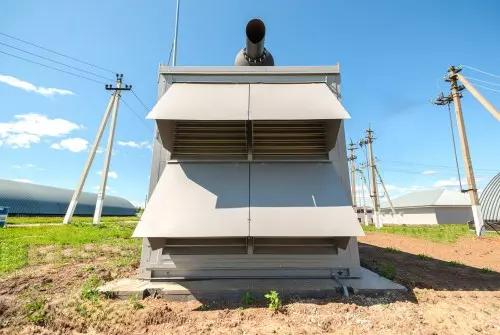

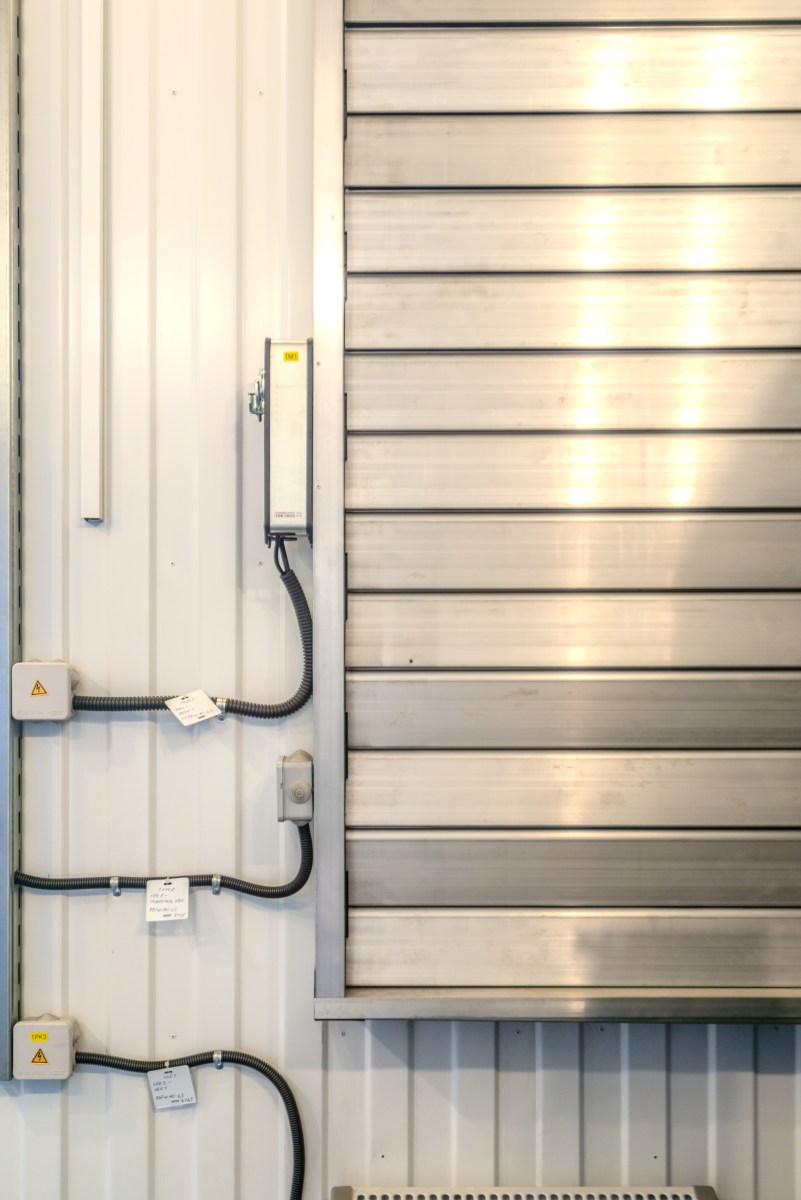

  • Ventilation system based on valves with ventilation grilles with electric drive and electric heating

  • Lighting system

  • Heating system

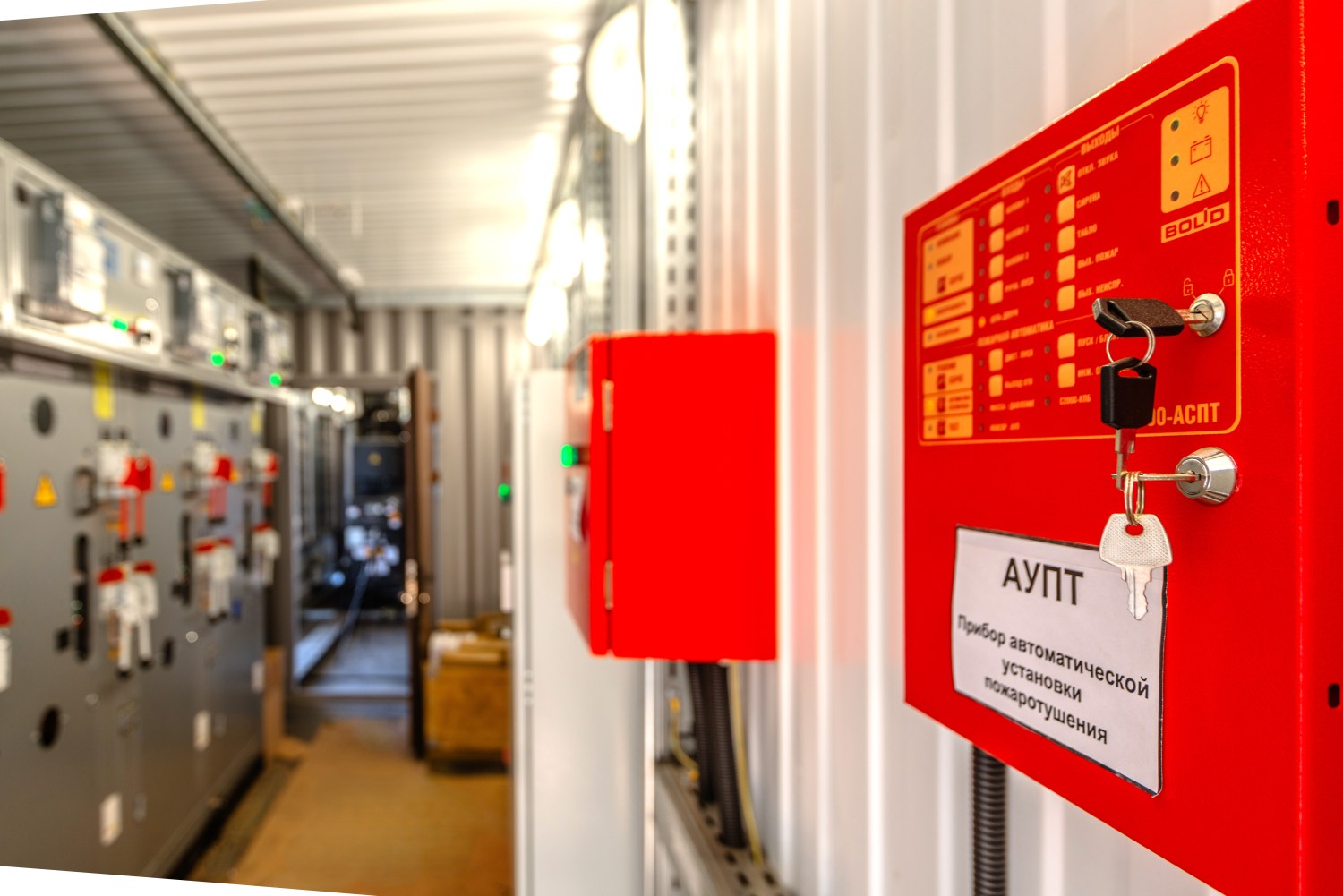

  • Automatic fire extinguishing system

  • Security and fire alarm system

  • Genset Gas Heating system

  • The grounding system of the container equipment with an outlet to the outside

  • Consumable fuel tank with a volume of 950 liters installed in the engine compartment of the container

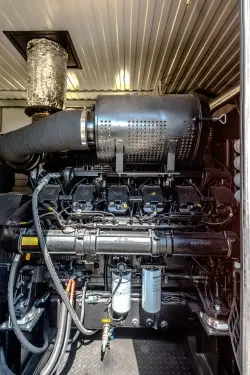

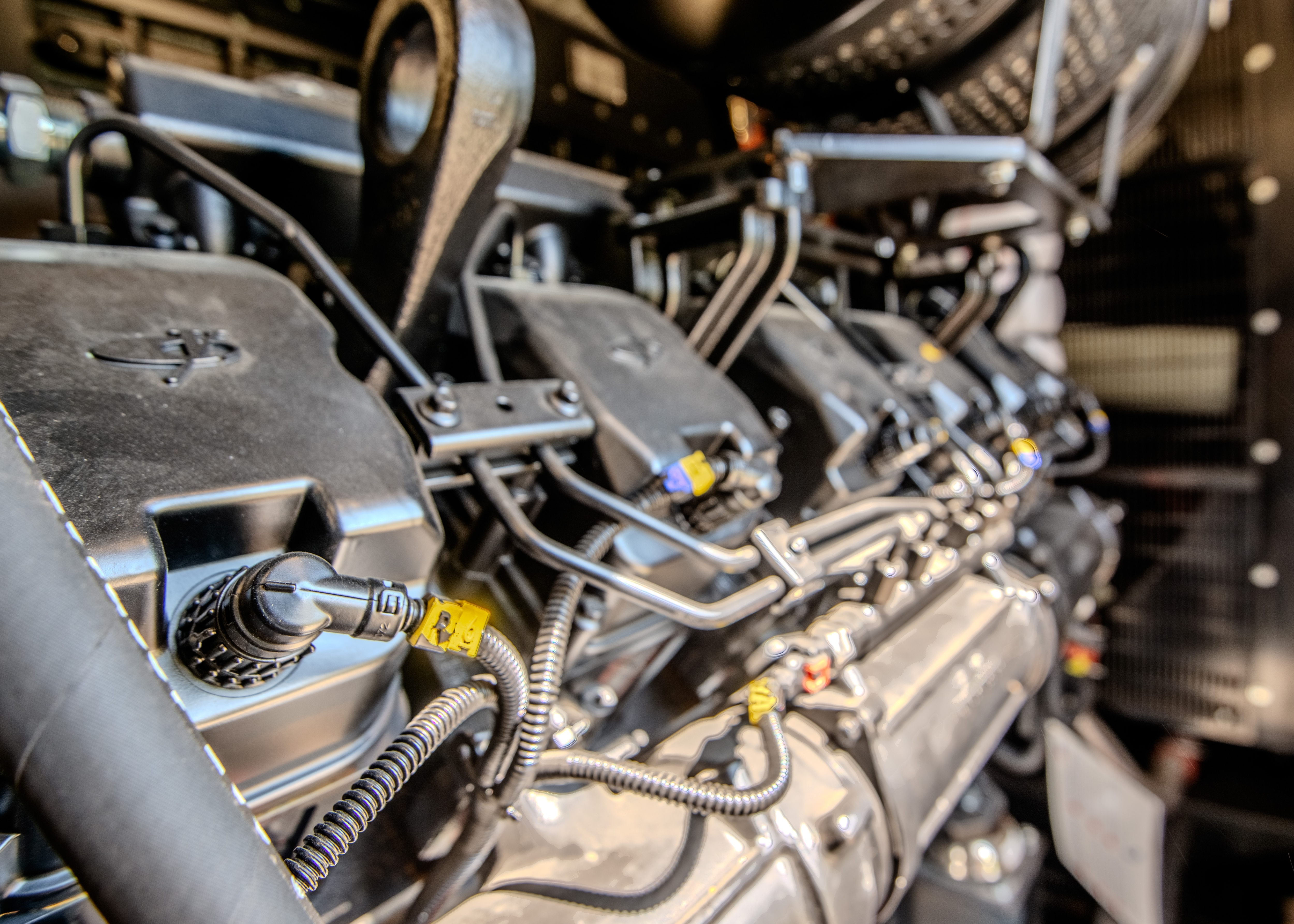

Characteristics of TE.1200S-T10500-2R

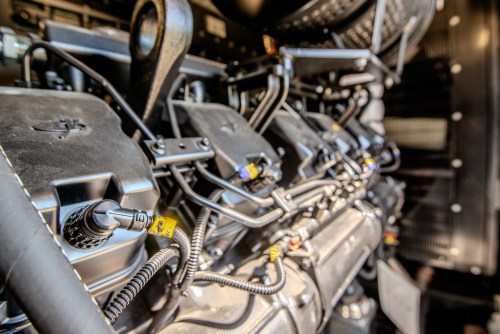

1. Yuchai / YCTD40TA2000-G30 engine

2. Power, kVA/ kW: main 1500 / 1200, standby 1650 / 1320

3. Number of cylinders 12

4. The arrangement is V-shaped

5. Engine capacity 39.2 liters

6. The crankshaft rotation speed is 1500 rpm ENGGA / EG500GSH

7. Generator Output voltage, 10500 V DSE / 7320

8. Control Panel Fuel consumption at 100% load, 336 liters/hour

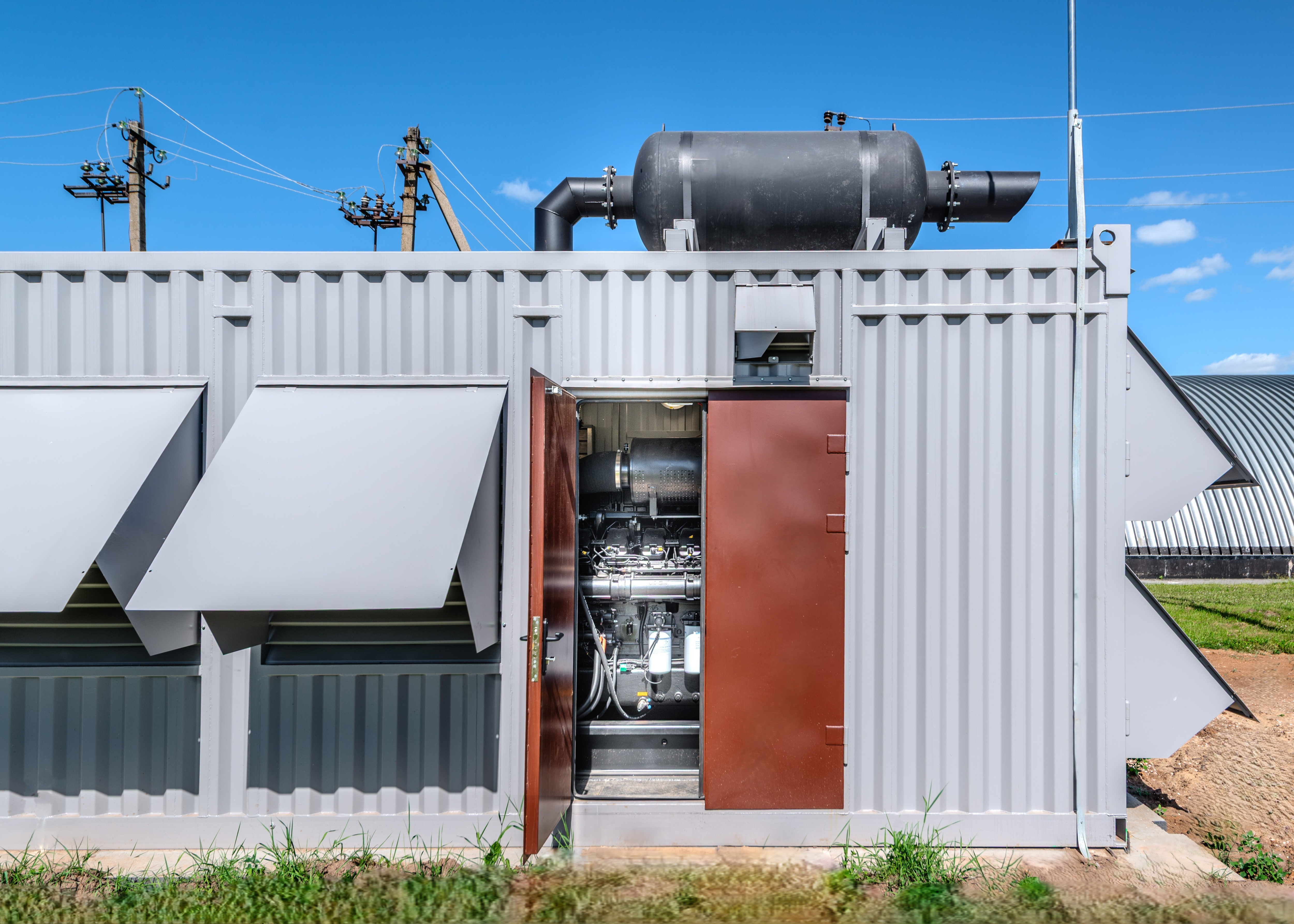

An industrial muffler, bellows compensator, ~220V coolant heater, electric starter system of the engine, and an automatic charger for a set of batteries were also supplied in the diesel power plant kit.

To put the DES into operation, Techexpo specialists carried out a complex of construction, installation, supervision and commissioning works.
