Delivery of three mobile DGS with a total capacity of 200 kW, Sergiev Posad
| Total capacity | 200 kW |
| Client | Electrical installation company |
| Фото |
|
| Task | Provision of a mobile source of low-power backup power supply for a significant cultural heritage site, The Trinity Lavra of St. Sergius |

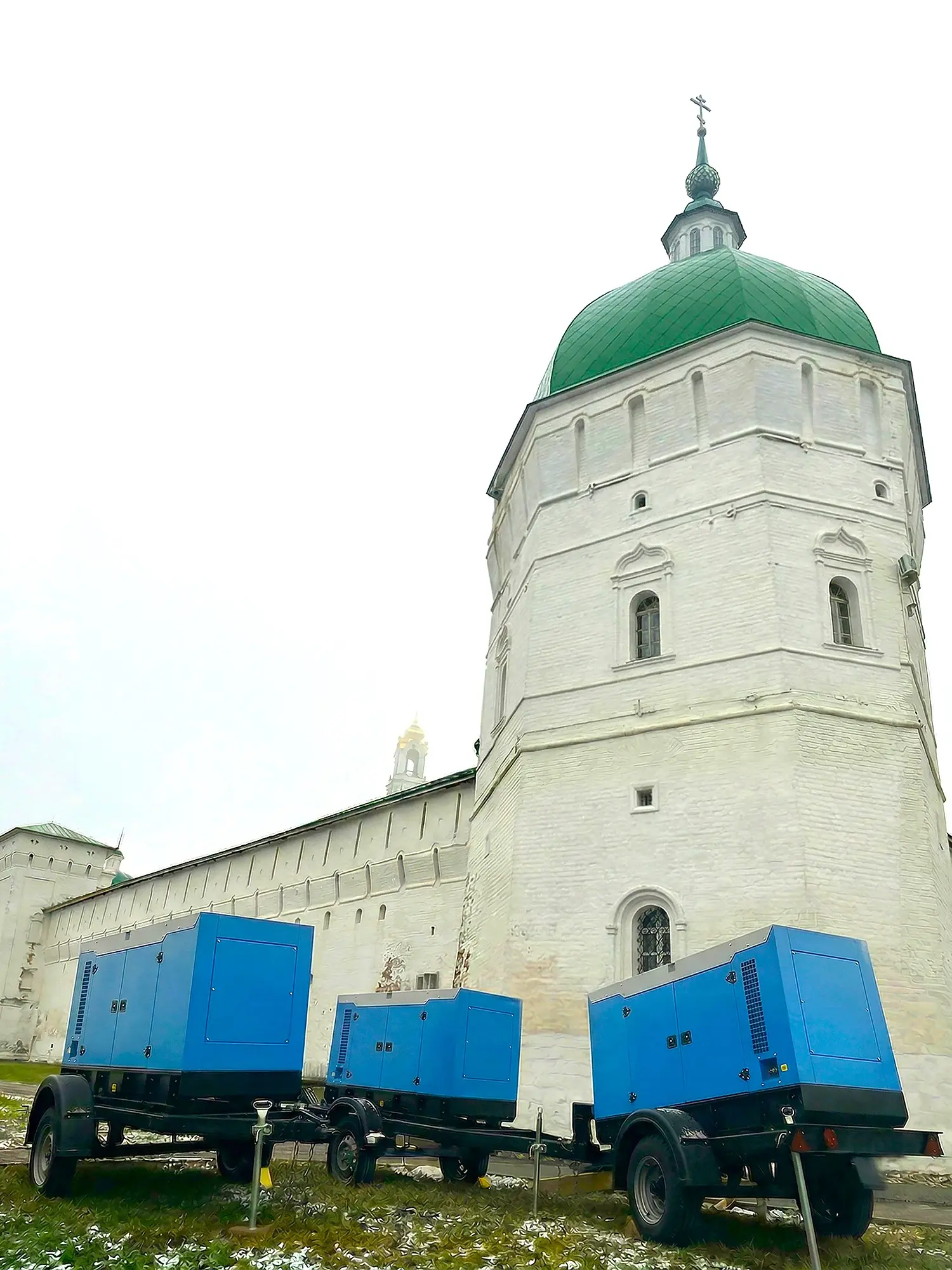

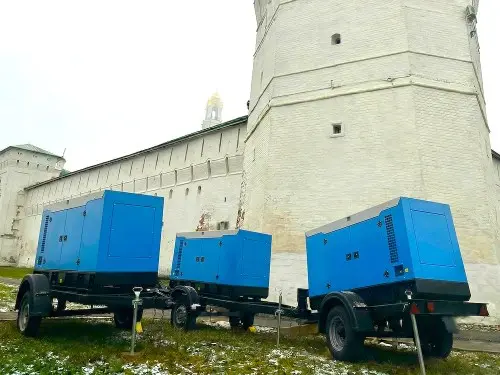

| Solution | Supply of three mobile DGSs on tractor trailers with a capacity of 40 (1 unit) and 80 kW (2 units). |
The customer of this project was an electrical installation company specializing in the repair and maintenance of electrical equipment. The supply of the DGSs was carried out as part of a complex of works on the reconstruction of engineering systems of the Trinity Lavra of St. Sergius and the Moscow Theological Academy.
Techexpo specialists studied the Customer's wishes and offered to supply three mobile diesel generator sets with a capacity of 40 (1 unit) and 80 kW (2 units).

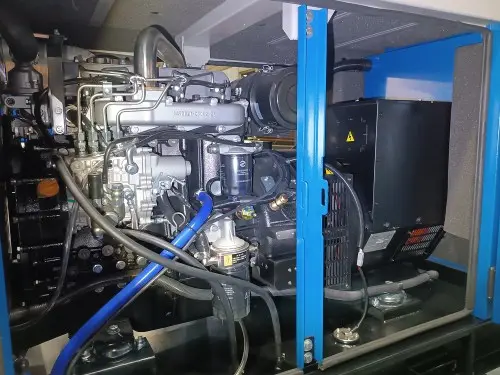

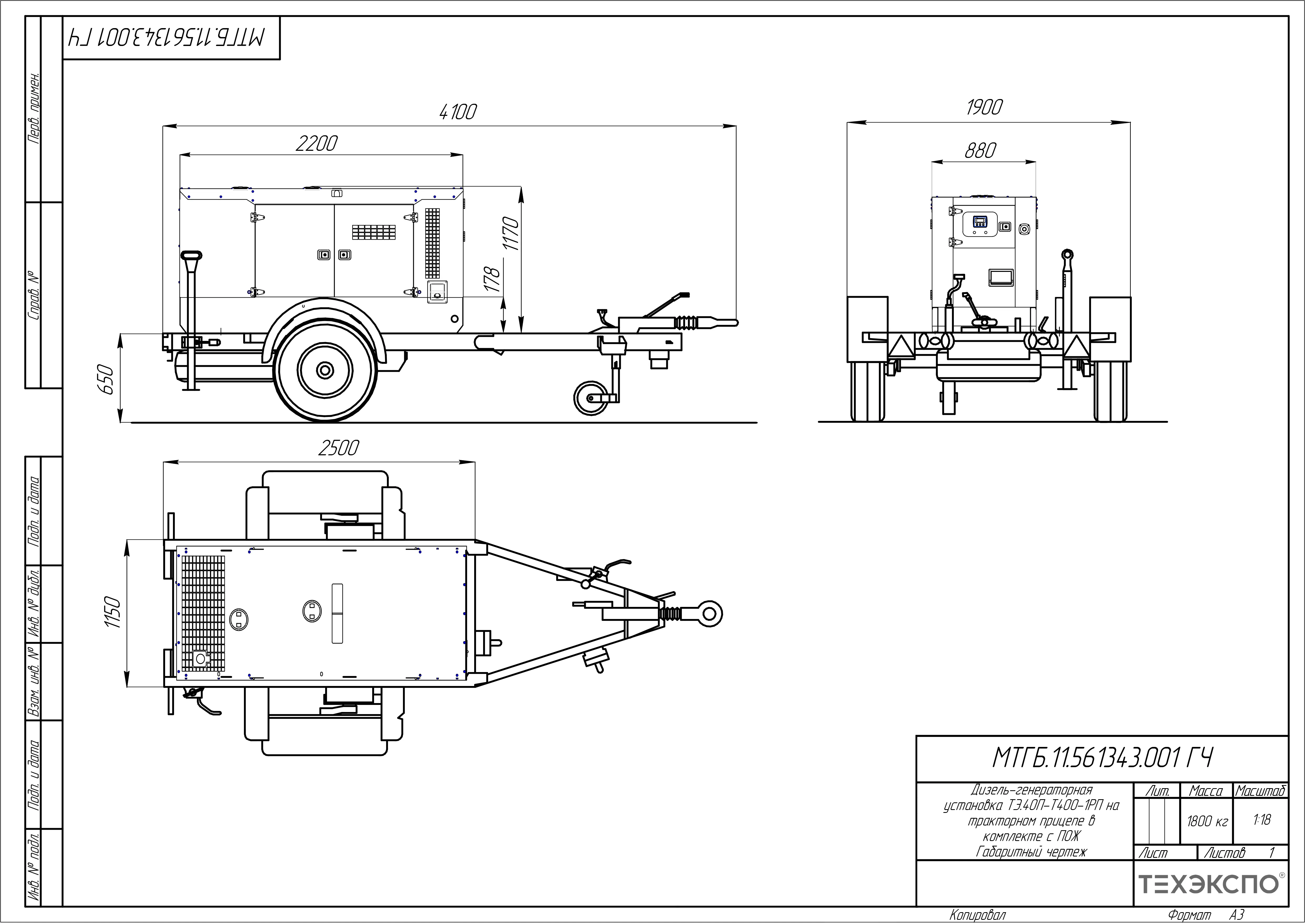

Technical characteristics of TE.40P-T400-1PP on a tractor trailer complete with a coolant heater:
- Main power: 40 kW / 50 kVA
- Standby power: 44 kW / 55 kVA
- Design: in a casing
- Fuel consumption at 100% load: 10 liters/hour
- Fuel tank built into the frame: 136 liters
- SDEC 4ZT3.5-G21 Engine (China)
- Engine capacity: 3.5 liters
- Engine type: Diesel engine
- Number of cylinders and their arrangement: 4 / row
- Dimensions: 2200x880x1200mm
- DGS weight: 912 kg
- TSS SA-40 Generator (China)
- Output voltage: 400/230 V

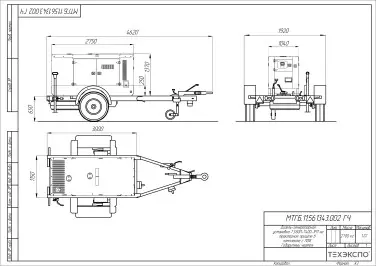

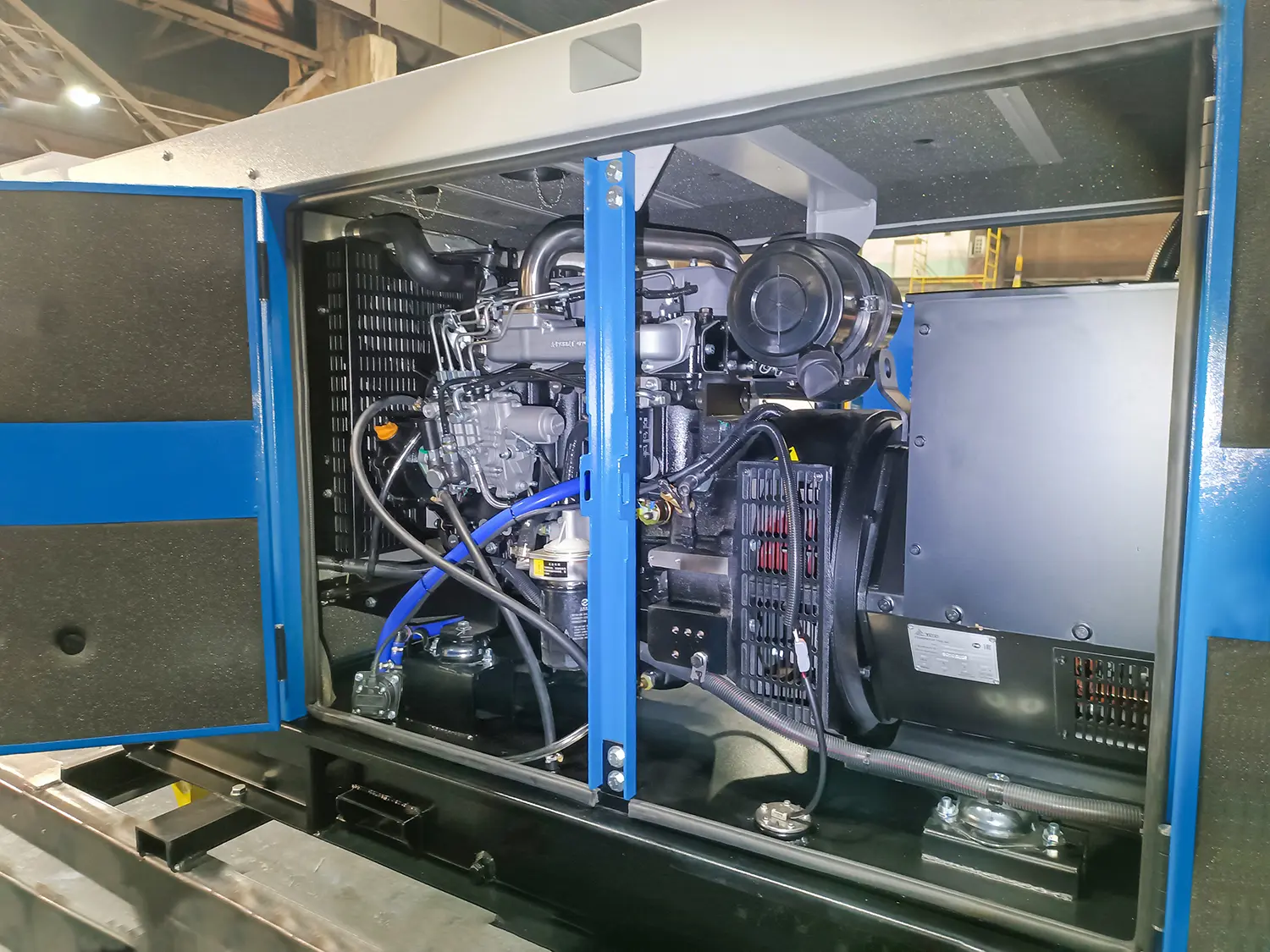

Technical characteristics of TE.80P-T400-1PP on a tractor trailer complete with a coolant heater:
- Main power: 80 kW / 100 kVA
- Standby power: 88 kW / 110 kVA
- Design: in a casing
- Fuel tank built into the frame: 300 L
- Dimensions: 2750x1040x1370 mm
- DGS weight: 1380 kg
- Fuel consumption at 100% load: 20 liters/hour
- Weichai WP4.1D113E200 Engine (China)
- TSS SA-80 SAE 3/11.5 (M1) Generator (China)
- Engine capacity: 4,087 liters
- Protection class H
- Engine type: Diesel engine
- Number of cylinders and their arrangement: 4 / row
- Output voltage: 400/230 V

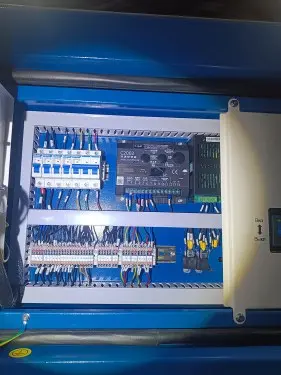

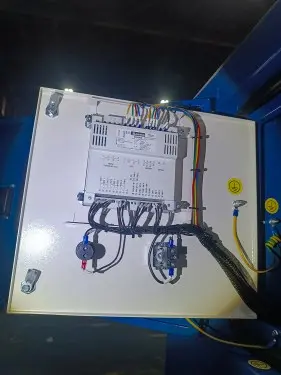

Both types of 40 kW and 80 kW DGSs are equipped with coolant heating devices, battery chargers, a fuel level sensor with the emergency stop function of the DGS, and a battery kit.
Techexpo delivered the equipment to the Customer's warehouse in Sergiev Posad. The warranty period for DGS is 36 months or 2000 operating hours, for trailers — 12 months.
