Delivery of a 2500 kW load bank for an industrial enterprise in the Southern Federal District

Total capacity 2500 kW
Client Industrial enterprise
Фото
Task Testing under the load of diesel generator sets (DGS) and diesel electric power plants (DEPP) with a capacity of up to 2.5 MW at different voltage values and power factors located at different points of the enterprise, as well as measuring the quality of the generated electricity.
Solution Supply of a mobile load bank of the appropriate capacity with an adjustable power factor and the ability to choose one of three voltage classes (0,4/6,3/10,5 kV) in full configuration, provided by the Customer's requirements.
According to the project, the following were delivered:

  • NM-2500-T6300/400 load bank;

  • Low-frame semi-trailer;

  • A set of spare parts (two sets of tools for the load bank’s maintenance, a trailer jack, a spare wheel, anti-rollback stops, a set of inductive elements, a set of resistive elements);

  • A set of low-voltage cables with a rated voltage of 0.4 kV with a total length of 960 meters;

  • A set of high-voltage cable with a rated voltage of 6.3 kV and a length of 20 meters;

  • A complete set of documents in Russian

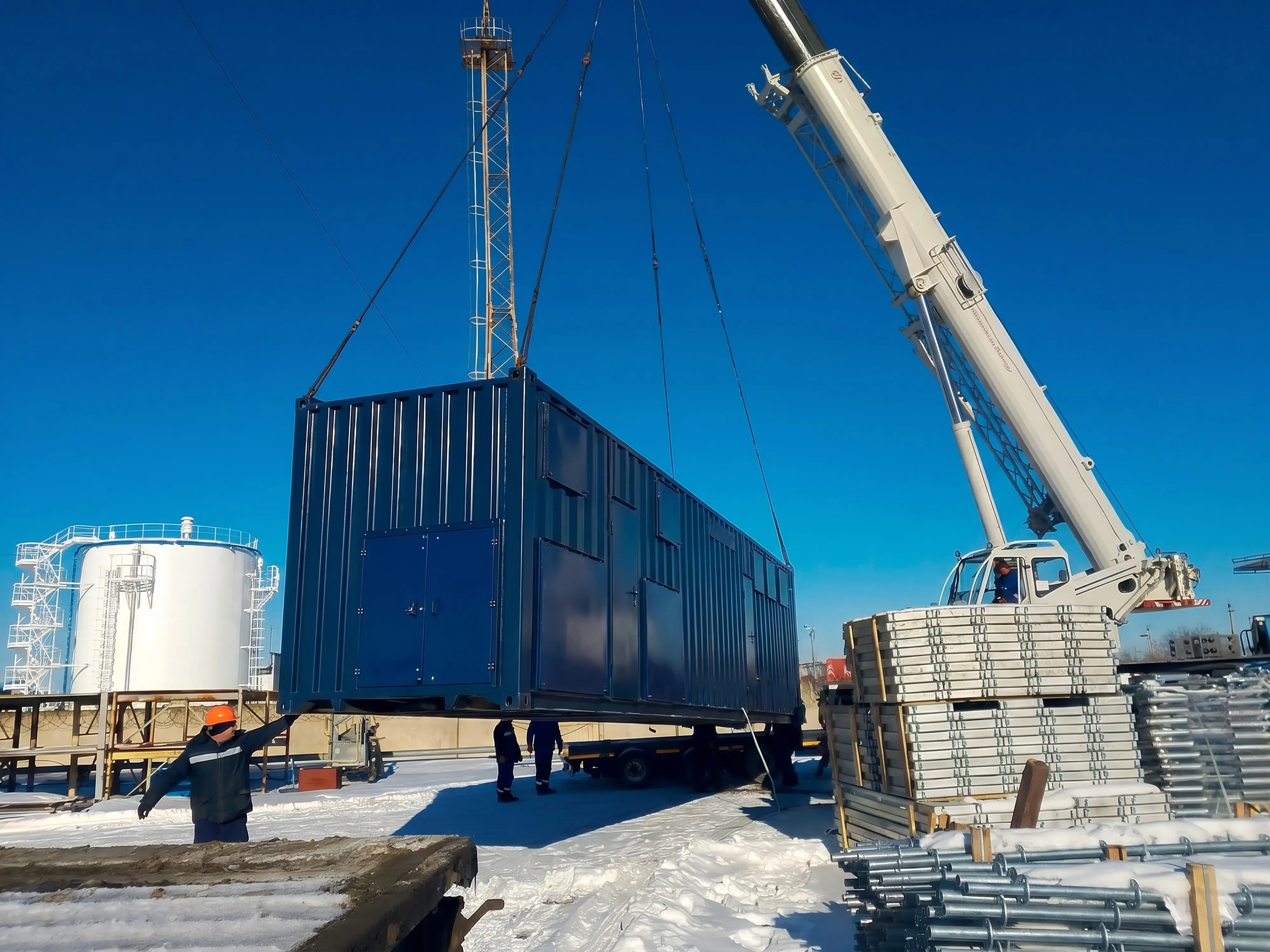

techexpo-ufo-346-2026 (1).jpg
Technical characteristics of the load bank:

  • Model: NM-2500-T6300/400;

  • Voltage, kV — 10/6,3/0,4;

  • Current frequency, Hz — 50;

  • Full power, kVA — 3125;

  • Active power, kW — 2500;

  • Stages of different power — 100, 200, 300, 500 kW;

  • Step adjustment — stepwise;

  • Load type — active-inductive (COS φ adjustable: 0.8 to 0.99);

  • Number of phases — 3 pieces;

  • Protection class — not lower than IP54;

  • Insulation class — not lower than 12000 V;

  • The location of the control panel is an integrated (internal) panel;

  • The design of the load bank is an all-weather metal container on a low-frame semi-trailer.

The load module allows you to select one of three power inputs for different voltages. – 0,4 / 6,3 / 10,5 kV. It provides an active-reactive load with an adjustable power factor (cos φ) from 0.8 to 0.99.

Container characteristics

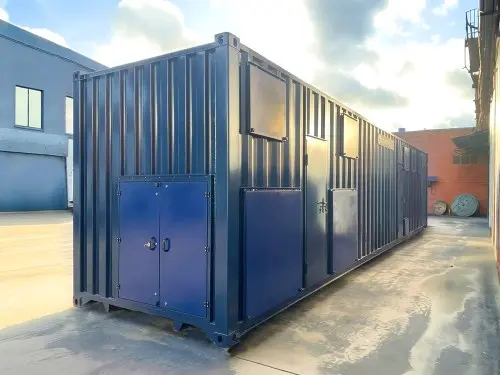

The load bank is made in a container design. The container is an all-metal weatherproof shell designed to accommodate the equipment of the load bank.

The container of the load bank is divided into two compartments: the high-voltage and the load compartment.

  • The high-voltage compartment contains the input of high-voltage cables, a high-voltage cell and a three-phase dry step-down transformer.

  • The load compartment contains a low-voltage cable entry, a control panel, a reactive load section and an active load section.

  • The entrances to the compartments are equipped with folding ladders. Doors and hatches are equipped with rubber seals.

  • The compartments of the container are equipped with lighting, ventilation and heating systems.

  • The active load section is made using specialized wire resistive elements of the “РКН-1225763” type.

  • The reactive load section is made using inductive chokes.

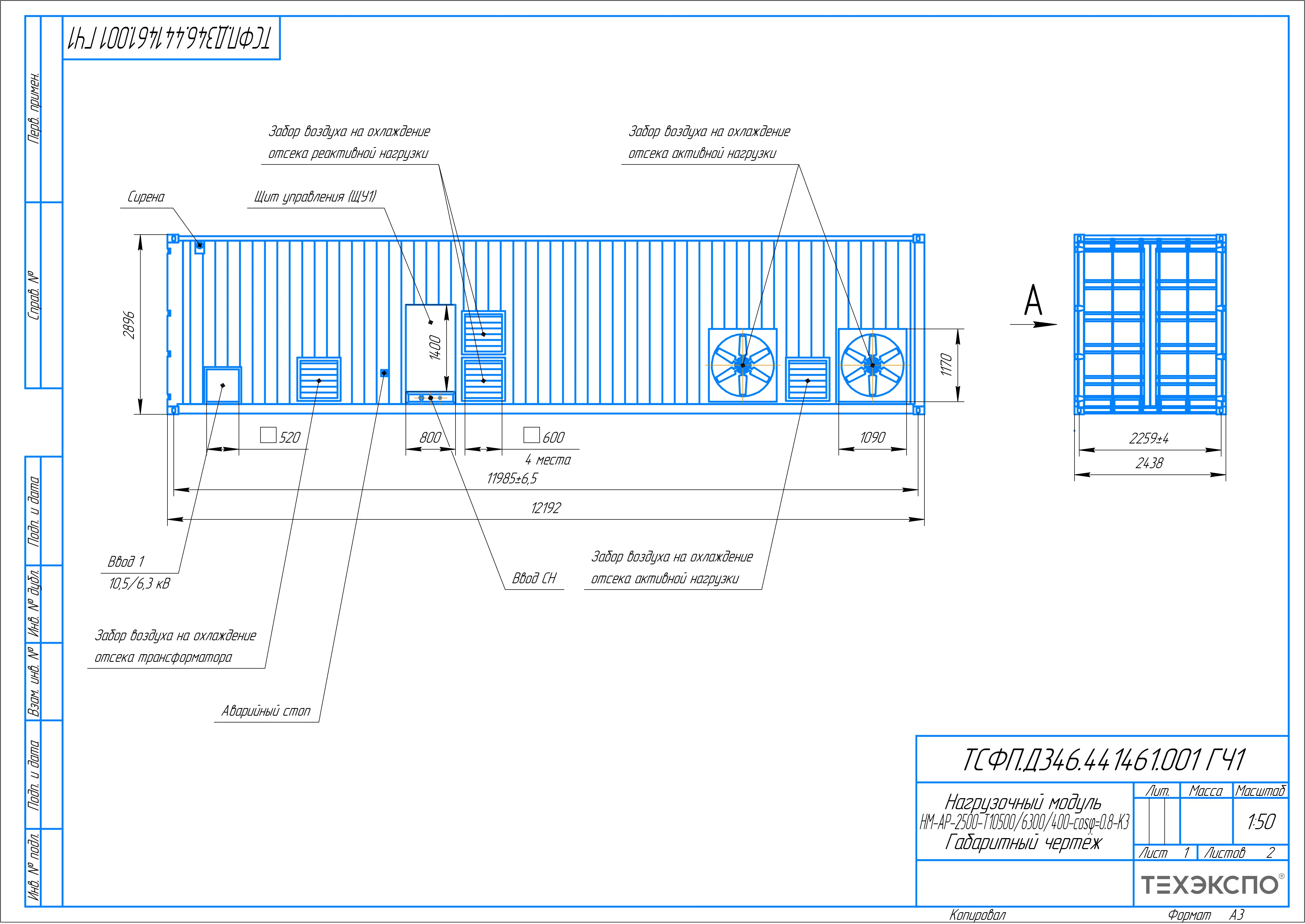

techexpo-1. ТСФП.Д346.441461.001 ГЧ2 - Габаритный чертёж. НМ на полуприцепе рев (2).jpg


The load bank is controlled from the control panel, the front panel of which is located on the outer wall of the container. The load bank provides remote control using the supplied laptop.

Characteristics of the semi-trailer

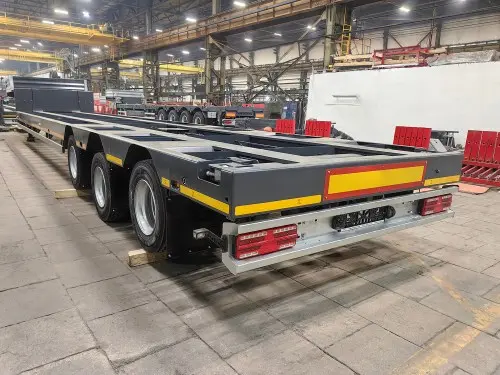

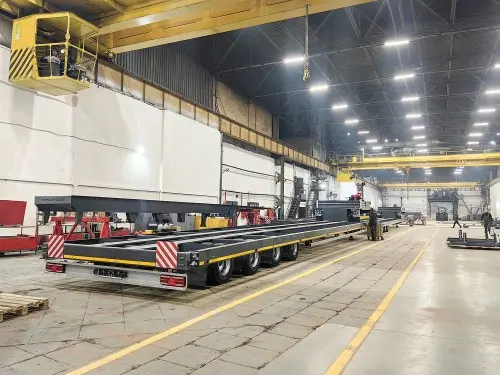

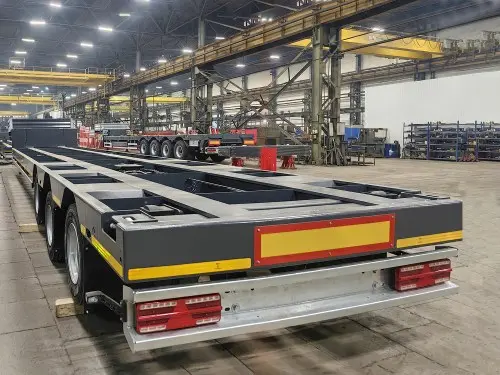

The load bank is mounted on a low-frame three-axle semi-trailer. The semi-trailer is equipped with a spring-loaded balancing suspension and an air brake system with EBS. To install a semi-trailer complete with a load bank, six screw outriggers and two additional outriggers are provided on the site for parking a semi-trailer without a load bank.

Tests

To confirm the declared performance characteristics of the equipment the following tests were carried out:

  • Acceptance (factory) tests at the manufacturer's site;

  • Acceptance tests at the Customer's site;

All tests were carried out according to the program and test procedure agreed with the Customer.

The briefing

At the request of the Customer, Techexpo LLC specialists provided instructions on the design, operation and maintenance of the load bank and its systems.

Warranty

The warranty period of the load bank is at least 24 months from the date of shipment.
